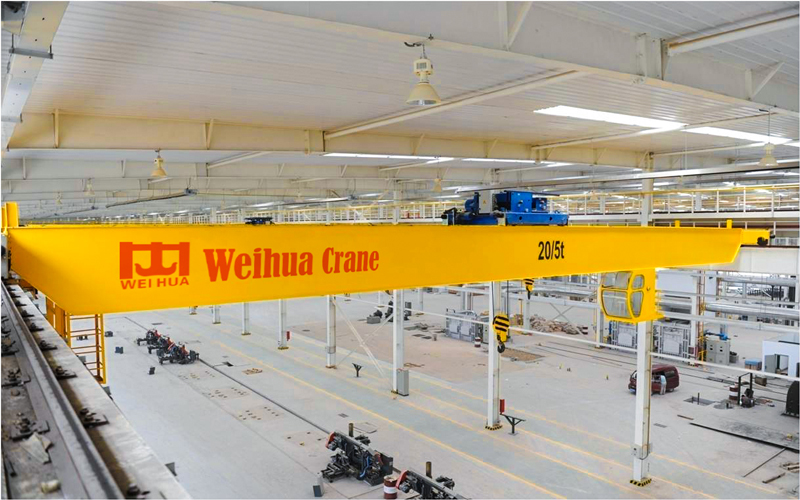

Double Girder Overhead Crane With Hoist

The double girder overhead crane with hoist is a high-efficiency, heavy-duty material handling equipment designed for indoor and semi-outdoor industrial applications. It integrates a stable double-girder structure with a reliable hoist system, enabling precise lifting, lowering, and horizontal transportation of heavy loads. Widely used in factories, warehouses, workshops, ports, and metallurgical plants, this crane is recognized for its strong load-bearing capacity, long service life, and excellent operational stability, making it an indispensable core equipment for modern industrial production lines.

Product Overview

Our double girder overhead crane with hoist is engineered to meet the diverse needs of heavy-load handling, with a load capacity ranging from 5 tons to 500 tons and a span of 10 meters to 35 meters (customizable according to customer requirements). The crane consists of two parallel main girders, end trucks, a traveling mechanism, a hoist system, and an electrical control system. The double-girder design distributes the load evenly, reducing stress concentration and ensuring higher stability compared to single-girder overhead cranes, especially when handling ultra-heavy or bulky loads. The matched hoist (electric wire rope hoist or electric chain hoist) is selected for its high lifting efficiency, low noise, and strong durability, realizing seamless coordination with the crane’s traveling movement.

Double Girder Overhead Crane with Hoist Technical Parameters

Core Structural Advantages

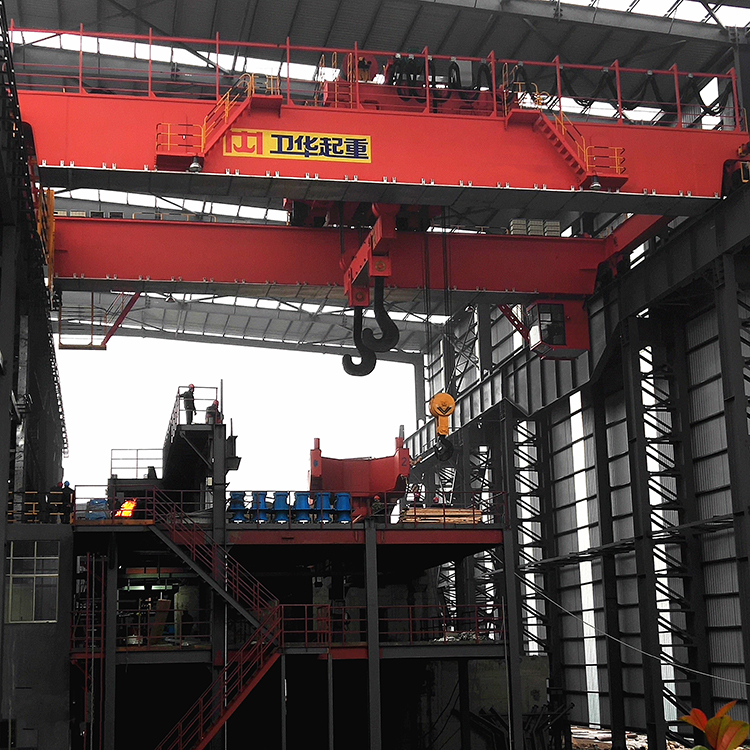

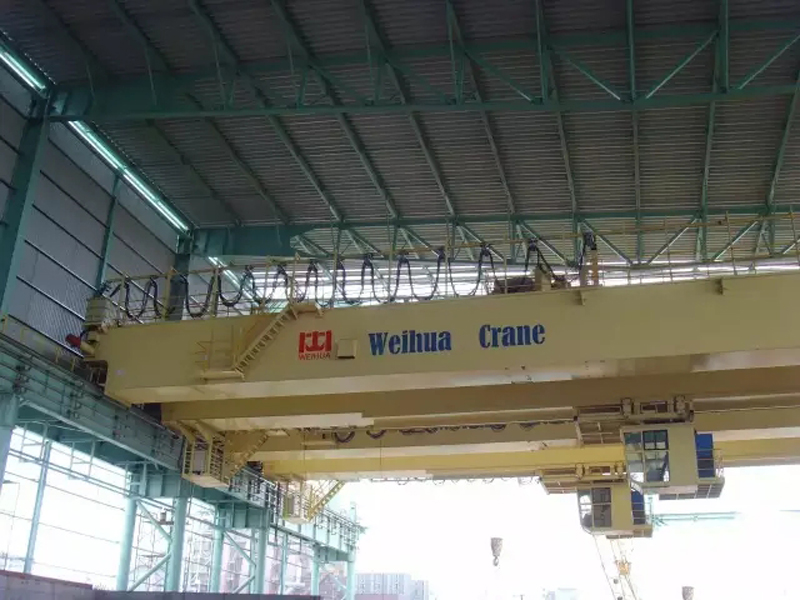

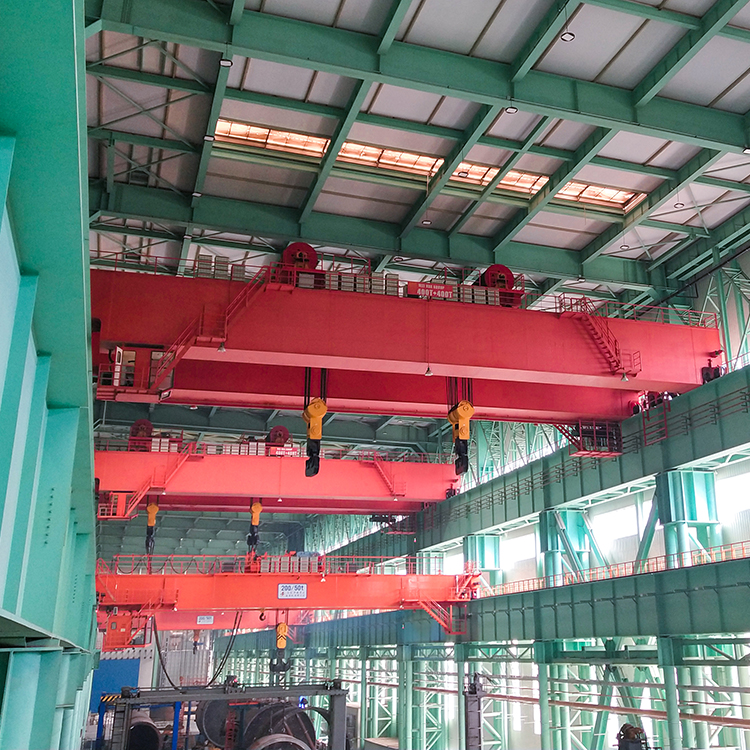

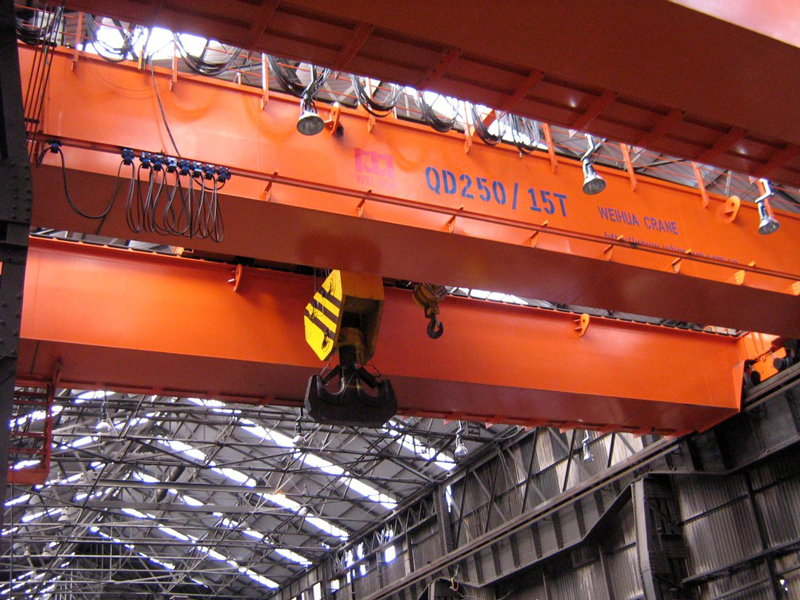

250 Tons Double Girder Overhead Crane With Hoist

• 1. Sturdy Double-Girder Structure: Adopting high-quality Q235B or Q355B steel plates, the main girders are welded by submerged arc welding technology, which ensures high structural strength, good rigidity, and resistance to deformation. After strict flaw detection and heat treatment, the girders can withstand long-term heavy-load operation without damage.
• 2. Stable Traveling Mechanism: The end trucks are equipped with high-precision gears and bearings, combined with frequency conversion speed regulation technology, enabling smooth starting, stopping, and traveling. The crane travels along the track laid on the factory roof, with low friction and low energy consumption, ensuring accurate positioning of loads.
• 3. Integrated Hoist System: The hoist is perfectly integrated with the crane’s trolley, which can move horizontally along the main girders. The hoist’s lifting mechanism is equipped with a safety brake and overload protection device, preventing accidents caused by overloading or sudden power failure. The lifting speed is adjustable, adapting to both fast material transportation and precise positioning.
• 4. Compact Design: The crane’s overall structure is compact, occupying small vertical space, which helps save factory height and expand usable space. The detachable design facilitates transportation, installation, and maintenance, reducing the difficulty and cost of on-site construction.

Key Components Introduction

1. Hoist System

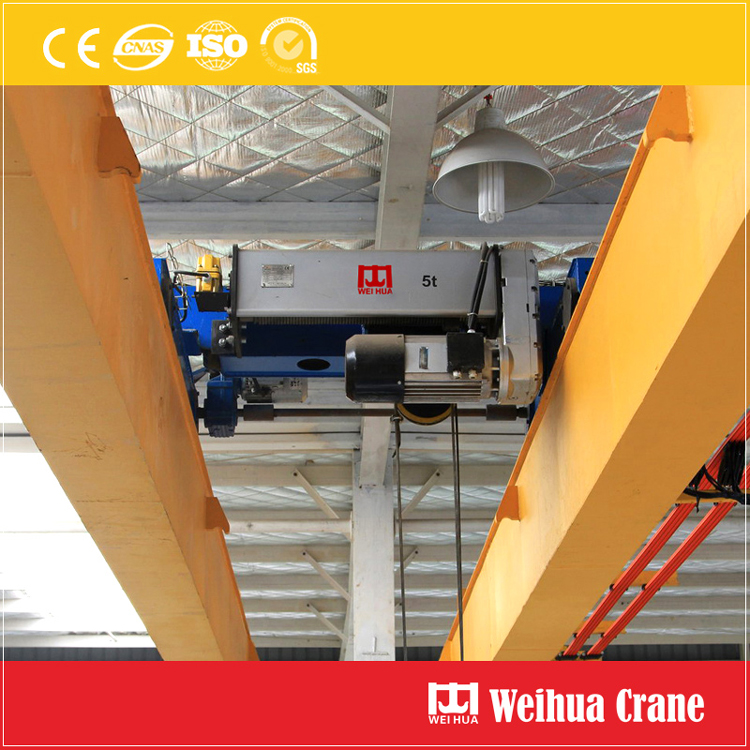

Hoist System

The hoist is the core lifting component of the double girder overhead crane, available in two types: electric wire rope hoist and electric chain hoist. The electric wire rope hoist is suitable for heavy-load lifting (above 10 tons), with a steel wire rope made of high-strength carbon steel, featuring wear resistance, corrosion resistance, and high breaking strength. The electric chain hoist is suitable for medium and light loads (below 10 tons), with a lightweight design and flexible operation. Both types are equipped with a variable-frequency motor, which realizes stepless speed regulation, reducing impact on loads and the crane structure during lifting and lowering.

2. Main Girders & End Trucks

Main Girders

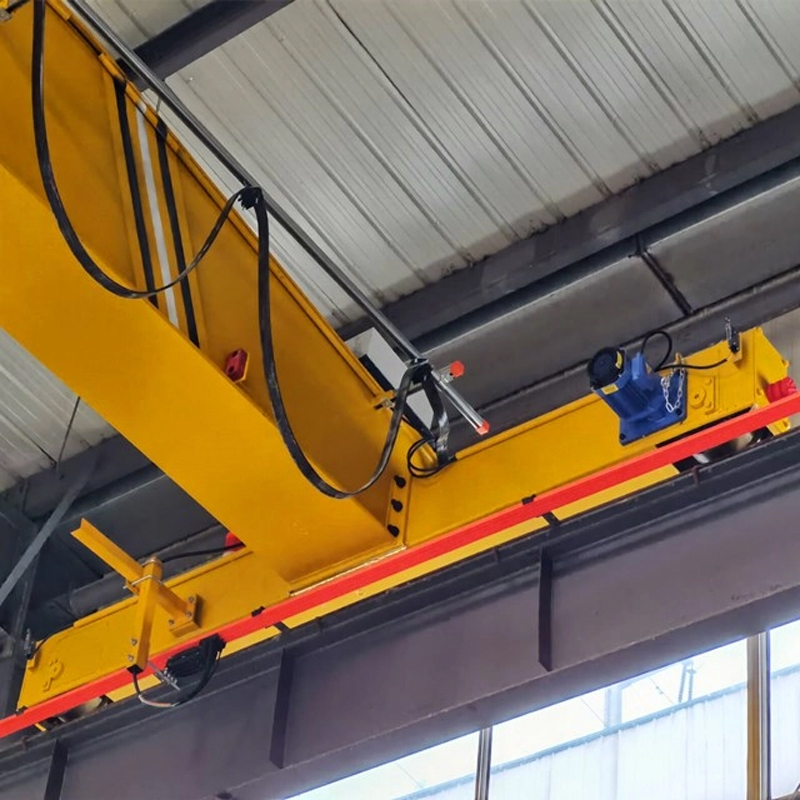

End Trucks

The main girders are the main load-bearing parts, adopting a box-type structure or I-beam structure, which effectively improves the structural rigidity and load-bearing capacity. The end trucks are connected to the two ends of the main girders, providing support and driving force for the crane’s traveling. The wheels of the end trucks are made of forged steel, with high wear resistance and long service life, and are equipped with anti-derailment devices to ensure safe traveling.

3. Electrical Control System

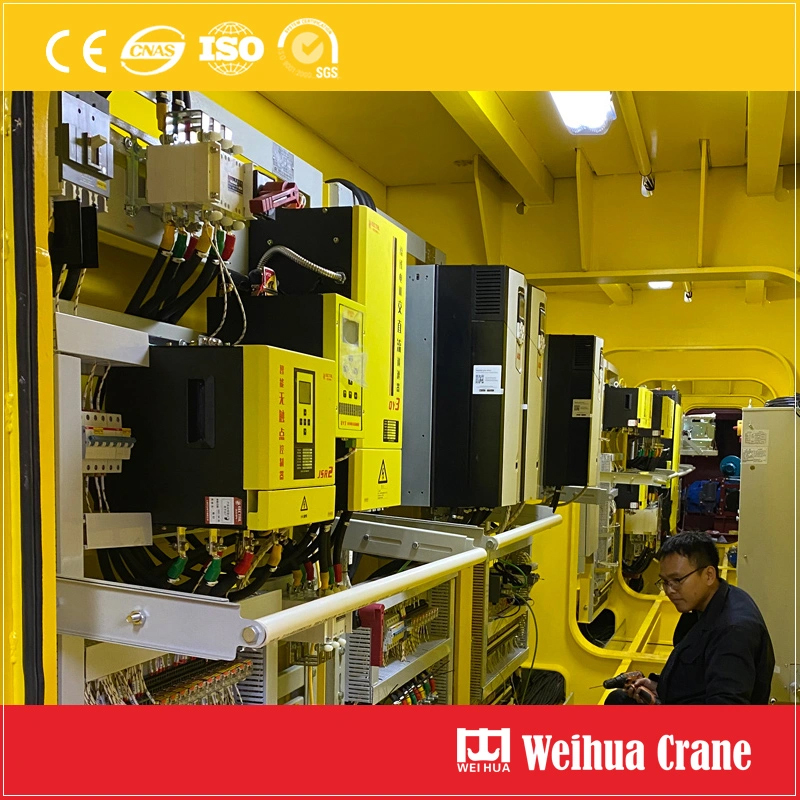

Electrical Control System

The electrical control system adopts PLC control technology, which is stable, reliable, and easy to operate. It is equipped with a remote control (wireless or wired) and an on-site control panel, enabling operators to control the crane from multiple positions. The system has multiple protection functions, including overload protection, overcurrent protection, voltage protection, and emergency stop function, ensuring the safety of operators and equipment.

Double Girder Overhead Crane with Hoist Application Scenarios

The double girder overhead crane with hoist is widely used in various industrial fields that require heavy-load handling, such as:

• 1. Metallurgical industry: Lifting and transporting steel ingots, steel plates, and molten steel ladles in steel plants.
• 2. Mechanical manufacturing: Assembling large-scale mechanical equipment, lifting and moving machine parts.
• 3. Warehousing and logistics: Loading, unloading, and storing heavy goods in warehouses and freight yards.
• 4. Port and dock: Handling containers, bulk cargo, and large-scale equipment at ports.
• 5. Chemical industry: Lifting and transporting chemical raw materials, reactors, and other equipment (with anti-corrosion treatment if needed).
• 6. Power industry: Installing and maintaining power generation equipment, lifting transformers and generators.

Safety & Quality Assurance

Our double girder overhead crane with hoist strictly complies with international standards such as ISO, CE, and GB, and all components are selected from well-known brands to ensure product quality and reliability. The crane undergoes strict quality inspection before leaving the factory, including load testing, performance testing, and safety testing, to ensure that it meets the requirements of safe operation. In addition, we provide complete after-sales service, including installation guidance, debugging, maintenance training, and spare parts supply, to solve the worries of customers in the process of use.

Customization Service

We understand that different industries and customers have different requirements for material handling. Therefore, we provide personalized customization services for the double girder overhead crane with hoist. According to your actual needs, we can customize the load capacity, span, lifting height, hoist type, control mode, and other parameters, and carry out special treatments such as anti-corrosion, high-temperature resistance, and explosion-proof according to the working environment, to provide you with the most suitable material handling solution.

Choose our double girder overhead crane with hoist, and you will get a high-efficiency, safe, and durable material handling partner, which will help improve your production efficiency, reduce labor costs, and promote the smooth development of your business.
