Remote control semi gantry crane for warehouse & workshop. Space-saving single-side rail design, wireless remote operation, full safety protections. Custom lifting capacity, span & height for indoor material handling. CE & ISO certified.

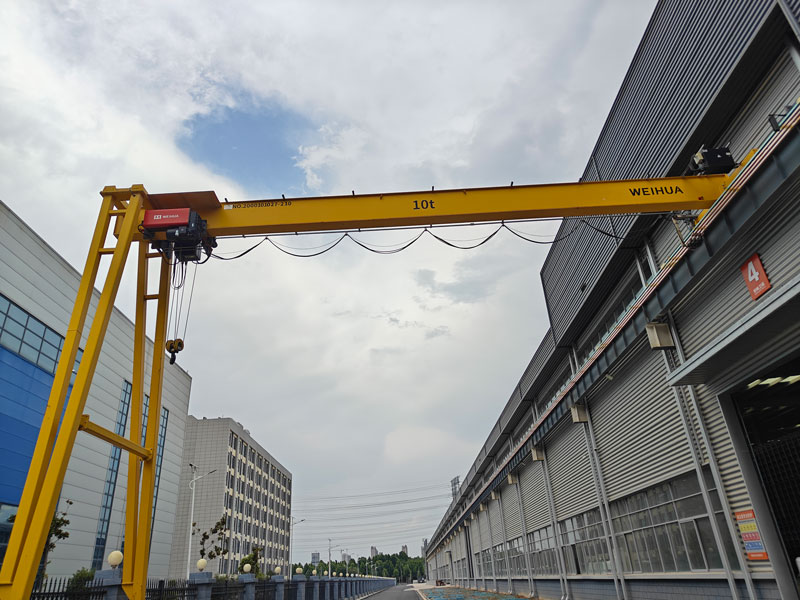

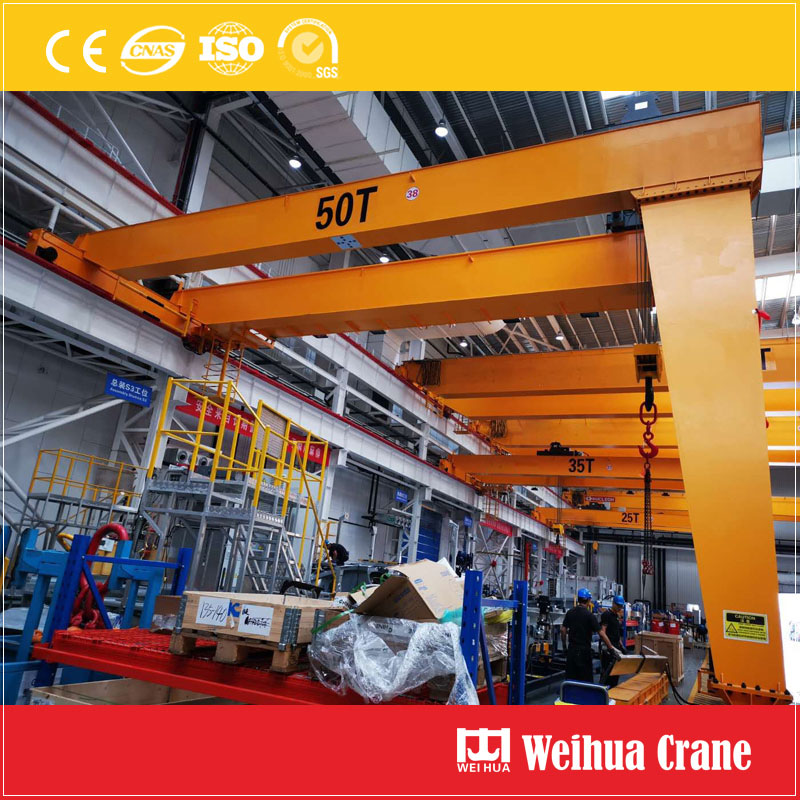

The remote control semi gantry crane is a cost-effective, space-efficient material handling solution specially engineered for indoor warehouses, processing workshops, logistics yards, and light-to-medium industrial production lines. Different from full gantry cranes, this semi gantry design adopts a single-side ground rail support and utilizes existing factory building columns or overhead tracks for the other side fixation, which greatly saves floor space and reduces infrastructure investment. Equipped with an industrial wireless remote control system as the standard configuration, the crane enables free, flexible, and safe remote operation, perfectly solving the operational limitations of traditional fixed-control cranes and meeting the frequent lifting, moving, and stacking demands of warehouse and workshop daily material handling.
Designed for indoor heavy-duty cyclic work, this semi gantry crane features a compact rigid steel structure, stable travelling and lifting performance, and low noise operation. It supports customized lifting capacity, span, lifting height, and working speed, covering light, medium and partial heavy load handling scenarios, and has become the preferred lifting equipment for modern factory and warehouse intelligent upgrading.
1. Space-Saving & Site Adaptability
The unique semi-gantry asymmetric structure abandons the double-ground rail design of full gantry cranes. One side runs on the ground rail, while the other side slides along the factory’s original wall-mounted or column-mounted track, making full use of the vertical space of the workshop. It avoids occupying excessive operating channels, which is especially suitable for narrow workshops, compact warehouses, and sites with limited ground space. The overall structure is compact without dead angles, maximizing the effective working area of the factory.
2. Low Installation & Operation Cost
Compared with full gantry cranes and overhead bridge cranes, this semi gantry crane requires simpler foundation construction and fewer supporting steel structures, greatly reducing early installation costs and construction cycles. It features low energy consumption, low failure rate, and convenient daily maintenance. The simplified structural design reduces long-term operation and maintenance costs, delivering higher cost performance for small and medium-sized factories and warehouses.
3. Flexible & Efficient Remote Operation
Featured with dual control modes of industrial wireless remote control and wired pendant control, the crane supports free switching according to working conditions. The handheld remote controller is lightweight, ergonomically designed, and supports long-distance wireless control, allowing operators to stand at the best viewing position to complete lifting, trolley travelling, gantry walking, and emergency stop operations. It effectively avoids blind operation, improves working efficiency, and reduces the risk of collision and safety accidents caused by fixed-position operation.
Equipped with industrial-grade wireless remote control system independently developed and certified, the crane supports anti-interference wireless signal transmission, which can stably receive instructions in complex workshop electromagnetic environments without signal delay or disorder. The remote control distance can reach 50-100 meters, covering the full working range of the crane.
This series of semi gantry cranes supports full customization to meet different warehouse and workshop handling needs. The standard parameters are as follows:
| Item | Standard Specification |
|---|---|
| Lifting Capacity | 1Ton – 32Ton (customizable up to 50Ton) |
| Span | 6m – 24m (customizable) |
| Lifting Height | 5m – 30m (customizable) |
| Working Duty | A5 – A7 (medium and heavy duty) |
| Hoisting Speed | 1 – 10m/min |
| Travelling Speed | 35 – 40m/min |
| Control Mode | Wireless Remote Control + Wired Pendant Control |
| Optional Configuration | VFD speed regulation, anti-collision device, rain cover, overload protector |
To ensure 100% safe operation in warehouse and workshop scenarios, the crane is equipped with full-range safety protection devices, complying with international industrial crane safety standards:
This remote control semi gantry crane is specially designed for indoor industrial environments and is widely applicable to:
All our semi gantry cranes are manufactured in strict accordance with ISO9001 quality management system and CE international standards. Every crane will undergo strict load testing, operation testing and safety inspection before delivery to ensure stable and reliable product quality. We provide one-stop services including customized design, on-site installation guidance, operator training, long-term after-sales maintenance and spare parts supply, delivering high-efficiency and low-consumption lifting solutions for global warehouse and workshop users.
