Overhead crane hook

Table Of Contents Show

At the heart of every reliable overhead crane system lies a critical component: the crane hook. Weihua Group, a globally recognized leader in lifting equipment manufacturing, designs and produces overhead crane hooks that set the standard for strength, durability, safety, and precision in demanding industrial environments.

Weihua overhead crane hooks are forged or meticulously machined lifting components designed to securely connect the crane’s hoist mechanism to the load. They are the primary interface between your valuable cargo and the crane’s lifting power. Weihua offers a comprehensive range of hooks tailored to diverse lifting capacities, operational requirements, and international standards.

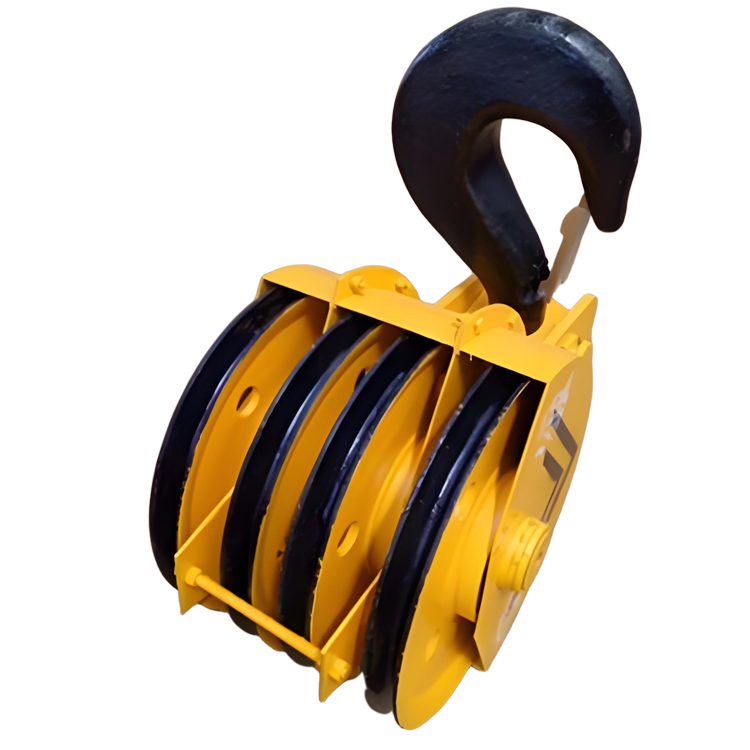

overhead crane hook

Overhead Crane Hook Technical Specifications & Parameters

Parameter	Specification / Range	Notes
Working Load Limit (WLL)	1 ton to 500+ tons	Custom ultra-heavy-duty hooks available
Hook Types	Fixed Hook, Swivel/Rotating Hook, Ramshorn (Foundry) Hook, Eye Hook, Tandem Hook	Anti-sway & specialty designs upon request
Material	High-Tensile Alloy Steel (e.g., 35CrMo, 42CrMo, 34Cr2Ni2Mo)	Compliant with DIN/ISO standards; Traceable material certs
Safety Factor	Min. 4:1 (Typical: 5:1 or higher; per DIN/FEM/ASME/GB)	Exceeds nominal WLL requirements
Proof Load Test	125% to 200% of WLL (Mandatory for every hook)	Factory-certified; Documentation provided
Design Standards	DIN 15401/15402, FEM 1.001, ASME B30.10, GB/T 10051, ISO 7597	CE Marking available for EU market
Surface Treatment	Shot Blasted, Painted (Standard) / Galvanized / Special Coatings (e.g., Heat-Resistant)	Customizable for corrosive or high-temp environments
Latch Options	Standard Safety Latch / Heavy-Duty Latch / Custom Latches / No Latch	Spring-loaded or bolted types available
Rotation (Swivel Hooks)	360° Continuous Rotation	Precision-tapered roller bearings or thrust bearings
Non-Destructive Testing (NDT)	100% Magnetic Particle Inspection (MPI) / Optional Ultrasonic Testing (UT)	Ensures zero material defects
Temperature Range	-20°C to +200°C (Standard)	Special alloys/designs for extreme cold (-40°C) or foundry use (>500°C)
Certification	ISO 9001, Test Certificates (EN 10204 3.1), Material Certs, NDT Reports, CE (Optional)	Full documentation package
Customization	Available (Unique WLL, Dimensions, Shank Type, Mounting, Material, Coatings)	Engineered-to-order solutions

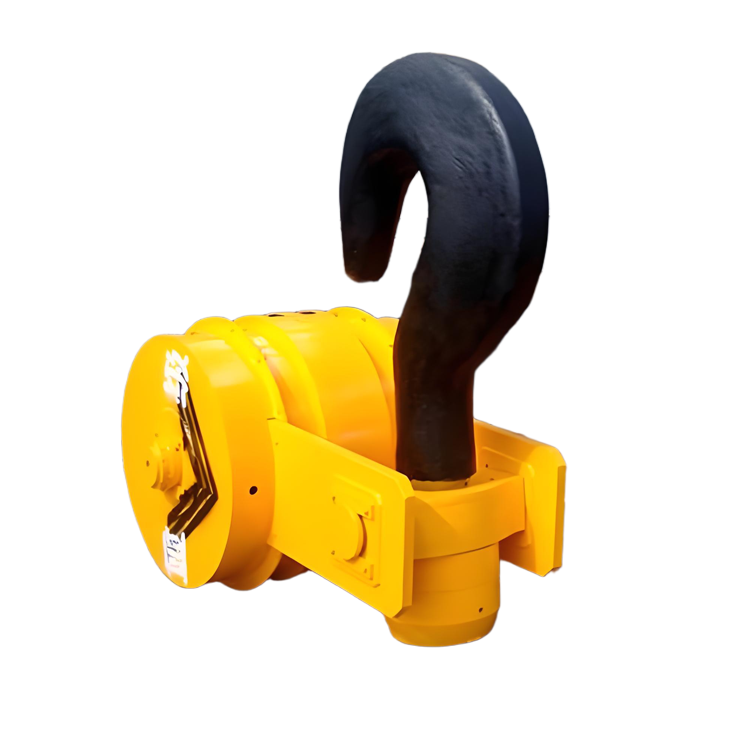

overhead crane hook

Key Features & Benefits Of Overhead Crane Hook

1. Exceptional Strength & Durability:
- Premium Materials: Manufactured from high-tensile strength alloy steels (e.g., 35CrMo, 42CrMo, 34Cr2Ni2Mo – compliant with DIN/ISO standards).
- Advanced Manufacturing: Utilizes precision forging processes (closed die forging) or high-quality machining, ensuring superior grain structure and material integrity compared to casting.
- Robust Construction: Designed with optimal geometry to distribute stress evenly, minimizing fatigue and maximizing service life under heavy, repeated loads.
2. Uncompromising Safety:
- High Safety Factor: Designed and manufactured significantly above nominal working load limits (WLL), typically adhering to DIN, FEM, ASME B30.10, or GB standards with safety factors of 4:1, 5:1, or higher as required.
- Mandatory Proof Load Testing: Every hook undergoes rigorous 125% to 200% of WLL proof load testing before leaving the factory, guaranteeing structural integrity.
- Latch Options: Standard or custom safety latches are available to prevent accidental disengagement of slings or lifting attachments.
- Strict Quality Control: Production follows ISO 9001 quality management systems, ensuring consistency and traceability.
3. Precision Engineering & Reliability:
- Accurate Load Path: Optimized throat opening and hook profile ensure smooth engagement with shackles and slings, preventing slippage and minimizing wear.
- Smooth Rotation: Precision-machined swivel bearings (in swivel hooks) allow the load to rotate freely, preventing dangerous cable twisting and enabling precise load positioning.
- Reduced Wear: Hardened and tempered contact surfaces, combined with precise machining, minimize wear on the hook saddle and tip.
4. Comprehensive Range & Customization:
- Wide Capacity Spectrum: Available from small capacities (e.g., 1 ton) up to very heavy-duty applications (500 tons and beyond).
- Diverse Types:
  - Fixed Hooks: Simple, robust design for straightforward lifting.
  - Swivel/Rotating Hooks: Essential for applications requiring load rotation.
  - Ramshorn Hooks (Foundry Hooks): Designed for specialized applications like foundry work with molten metal ladles.
  - Eye Hooks: For specific mounting configurations.
  - Specialty Hooks: Including anti-sway hooks, tandem hooks, and custom designs for unique needs.
- Custom Solutions: Weihua engineers can design hooks to meet specific dimensions, capacities, mounting requirements, or environmental conditions (e.g., extreme temperatures, corrosive atmospheres).
5. Global Compliance & Certification:
- Manufactured to meet or exceed major international standards: DIN 15401/15402, FEM 1.001, ASME B30.10, GB/T 10051, ISO 7597, etc.
- CE Marking available for the European market.
- Full certification packages including Material Certificates, Heat Treatment Records, NDT Reports (Magnetic Particle/Ultrasonic Testing), and Proof Load Test Certificates.

overhead crane hook

Overhead Crane Hook Applications

Weihua overhead crane hooks are trusted components in diverse industries worldwide, including:

Manufacturing & Fabrication
Steel Mills & Metal Processing
Power Generation
Shipbuilding & Repair Yards
Ports & Terminals
Mining & Heavy Industry
Warehousing & Logistics
Construction
Aerospace

application

Why Choose Weihua Overhead Crane Hooks?

Proven Track Record: Decades of experience in designing and manufacturing critical lifting components.
Vertical Integration: Weihua controls the entire process from steel sourcing to final testing, ensuring quality.
Focus on Safety: Safety is paramount in design, material selection, and manufacturing.
Reliability & Longevity: Built to withstand the toughest conditions, reducing downtime and replacement costs.
Global Support: Backed by Weihua’s extensive international sales and service network.
Value: Delivers superior performance and safety at competitive lifecycle costs.

manufacturer

The Weihua overhead crane hook is more than just a piece of metal; it’s a precision-engineered safety device fundamental to the secure and efficient operation of your crane. By combining advanced materials, rigorous manufacturing processes, stringent testing, and adherence to global standards, Weihua provides hooks that operators and managers can trust to perform reliably under load, day in and day out. When lifting performance and safety are non-negotiable, specify Weihua overhead crane hooks.
