Gantry Crane or Jib Crane for Workshop

Workshop material handling demands flexible, efficient, and space-saving lifting solutions to streamline production, equipment maintenance, and workpiece transportation. Gantry cranes and jib cranes are two of the most widely used overhead lifting equipment for industrial workshops, tailored for different working ranges, load capacities, and operational scenarios. This article provides a detailed product overview, core features, technical advantages, and application scenarios of gantry cranes and jib cranes, helping workshop owners select the ideal lifting equipment for daily operations.

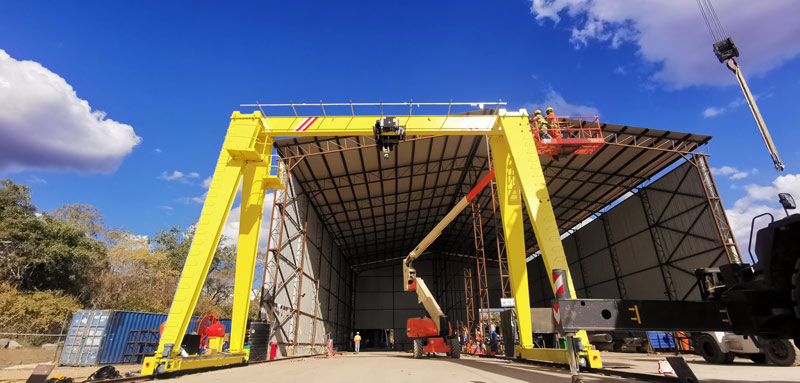

Gantry Crane for Workshop

Workshop Gantry Crane: Full-Coverage Flexible Lifting Solution

Product Overview

A gantry crane, also known as a portal crane, is a freestanding overhead lifting system composed of two vertical support legs, a horizontal main beam, electric hoist, traveling mechanism, and control system. Different from fixed overhead bridge cranes, gantry cranes rely on floor support instead of workshop ceiling structures, making them applicable to workshops without load-bearing roof frames. Most workshop gantry cranes are designed with portable or rail-mounted structures, including lightweight mini gantry cranes, single-girder gantry cranes, and heavy-duty workshop gantry cranes, covering light, medium, and heavy load handling requirements.

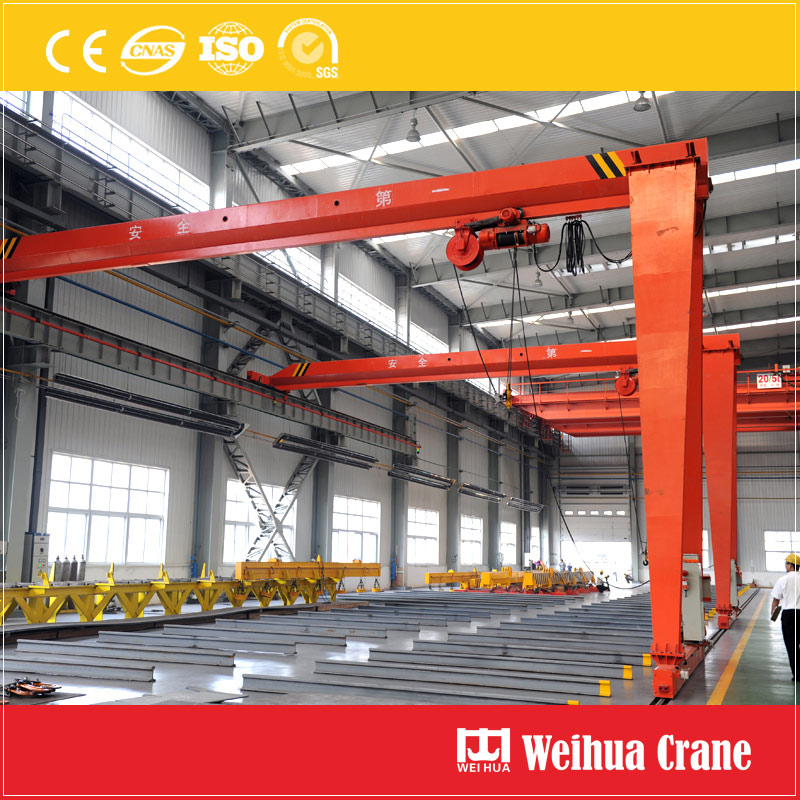

Gantry Crane for Workshop

Core Structural & Performance Features

• ◆ Independent Freestanding Structure: No ceiling installation or wall reinforcement required. The integrated gantry frame ensures stable load-bearing performance, avoiding structural damage to workshop buildings and adapting to various old and new workshop spaces.
• ◆ Omnidirectional Working Coverage: The electric hoist travels freely along the main beam, and the whole crane can move longitudinally on fixed rails or universal casters. It realizes full-area lifting and material transportation across the workshop, breaking the spatial limitations of fixed-point operation.
• ◆ Wide Load Capacity Range: Light-duty mini gantry cranes support 0.5-ton to 5-ton lifting for small parts and mold handling; medium and heavy-duty models can handle 5-ton to 50-ton loads, suitable for large workpiece assembly, mechanical equipment handling, and heavy maintenance work in workshops.
• ◆ High Mobility & Reusability: Portable gantry cranes are equipped with lockable universal wheels, enabling free movement between different workshop areas. The detachable structure allows convenient disassembly, transportation, and reinstallation, ideal for temporary lifting tasks and multi-station shared use.
• ◆ Safe & Stable Operation: Equipped with overload protection, limit travel switches, emergency stop devices, and anti-slip locking systems. The rigid steel frame effectively reduces load shaking, ensuring precise positioning and safe lifting operations.

Main Types & Workshop Applications

• ◆ Portable Mini Gantry Crane: Lightweight and easy to move, perfect for small workshops, garage maintenance, mold replacement, and small batch parts handling. It is the optimal choice for temporary and flexible lifting work with low investment and high practicability.
• ◆ Fixed Rail-Mounted Gantry Crane: Fixed on workshop floor rails with higher stability and load capacity, suitable for fixed production lines, long-distance material transportation, and heavy workpiece repeated handling in medium and large processing workshops.
• ◆ Single-Girder Workshop Gantry Crane: Simple structure, low energy consumption, and cost-effective, widely used in machinery processing, welding workshops, and hardware manufacturing for conventional medium-load lifting operations.

Workshop Jib Crane: Fixed-Point High-Efficiency Lifting Equipment

Product Overview

A jib crane is a compact localized lifting device designed for single-workstation material handling. It consists of a fixed column or wall bracket, a rotatable horizontal jib boom, electric hoist, and rotating drive system. With a small floor footprint and flexible rotation performance, it is specially developed for fixed working positions that require frequent short-distance lifting and precise positioning, becoming a standard supporting device for workshop processing stations, assembly stations, and maintenance stations.

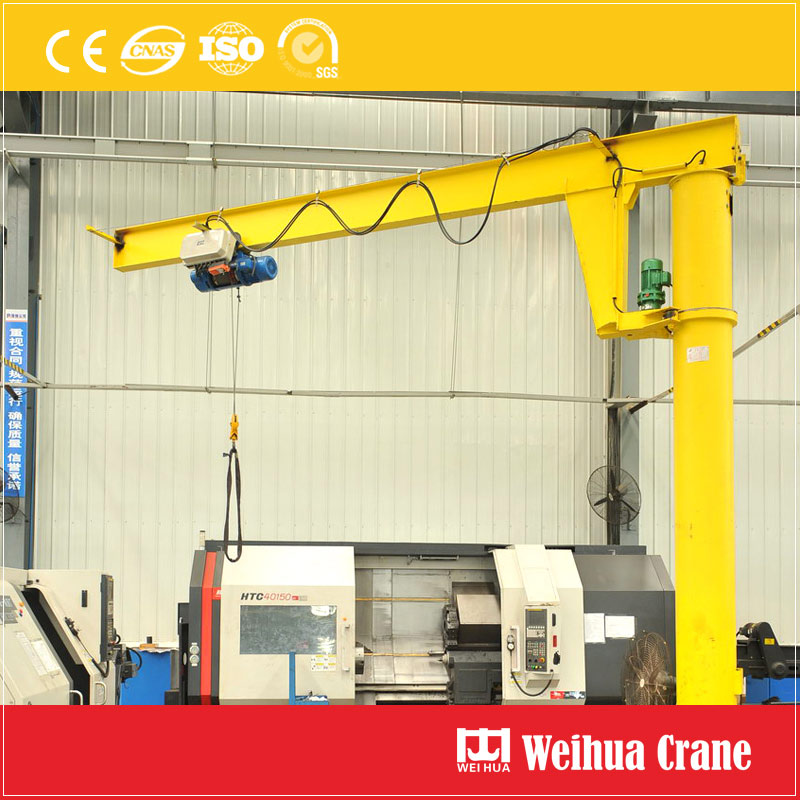

Jib Crane for Workshop

Core Structural & Performance Features

• ◆ Space-Saving Compact Design: Two mainstream installation modes are available—floor-mounted pillar type and wall-mounted type. The wall-mounted jib crane requires no floor occupation, fully utilizing vertical workshop space; the pillar type occupies only a small fixed floor area, effectively saving valuable workshop operating space.
• ◆ Flexible Rotation & Precise Positioning: Wall-mounted jib cranes support 180°-200° rotation, while floor-mounted pillar jib cranes realize 360° full-range rotation. The hoist moves smoothly along the jib boom, enabling flexible lifting, translation, and placement of materials within the working radius with high positioning accuracy.
• ◆ High Operational Efficiency: Simple operation with no complex debugging required. It responds quickly to frequent lifting tasks at fixed workstations, greatly reducing manual handling intensity and improving the production efficiency of single processing and assembly stations.
• ◆ Low Cost & Easy Maintenance: Simple mechanical structure, low manufacturing and installation cost, and minimal failure rate. Daily maintenance only requires regular lubrication and bolt inspection, with low later-stage operation costs.
• ◆ Stable & Safe: Adopts high-strength steel boom and anti-tilting structural design, matched with anti-overload and limit protection devices, ensuring stable operation without load swinging during frequent short-distance lifting.

Main Types & Workshop Applications

• ◆ Wall-Mounted Jib Crane: Installed on workshop reinforced walls or factory columns, with 180° rotation range. It is widely used for machine tool loading and unloading, parts handling, and small workpiece assembly in narrow workshop areas and dense station layouts.
• ◆ Floor-Standing Pillar Jib Crane: Independently fixed on the workshop floor with 360° free rotation and larger working radius and load capacity. Suitable for central workshop workstations, welding stations, equipment maintenance areas, and independent assembly stations.

Gantry Crane vs Jib Crane: Workshop Selection Guide

Conclusion

Both gantry cranes and jib cranes are indispensable efficient lifting solutions for modern workshops, with their unique application advantages. Gantry cranes are the preferred choice for workshops pursuing overall flexibility, large working coverage, and heavy-load handling capacity, adapting to diversified and variable material handling needs. Jib cranes excel in fixed-point, high-frequency, and precise lifting work, helping workshops optimize single-station production efficiency with low investment and high returns. Enterprises can choose matching lifting equipment according to workshop space layout, load demand, working range, and production frequency to maximize workshop operation efficiency.
