Container Spreader Size Standards

A spreader is a device attached to a crane, straddle carrier, or stacker used to lift and move shipping containers. Its key function is to lock onto the four corner castings at the top of a container, securing it for safe movement.

The “size” of a spreader primarily refers to its adjustable length. Without a standardized and adjustable spreader, ports would need a different crane for every single container length, bringing global logistics to a grinding halt. Standardization ensures:

• 1. Efficiency: Quick adjustment between container sizes minimizes turnaround time for ships and trucks.
• 2. Safety: Certified locking mechanisms prevent catastrophic container drops.
• 3. Versatility: One spreader can handle multiple container types, maximizing equipment ROI.
• 4. Intermodality: A container can be seamlessly transferred from ship to rail to truck without ever being opened, because the equipment at each node speaks the same “size language.”

The Key ISO Standards: The Blueprint for Compatibility

The entire global container system is built on standards set by the International Organization for Standardization (ISO). This includes the critical corner castings, which are the same on every ISO container regardless of its length, width, or height.

The most common container sizes (and thus, the standard settings for spreaders) are:

• 20-foot: The original standard, often called a Twenty-foot Equivalent Unit (TEU).

• 40-foot: The most common length today, known as a Forty-foot Equivalent Unit (FEU).

• 45-foot: A popular high-cube option for maximizing volume.

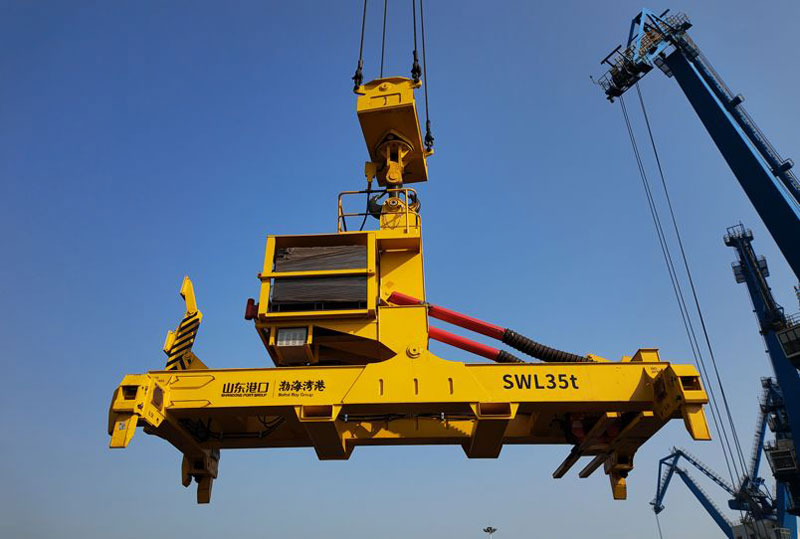

A standard telescopic spreader is designed to adjust between these primary lengths. The operator simply selects the required length, and the spreader’s hydraulic system extends or retracts to the correct position, with the twistlocks engaging the container’s corner castings.

Beyond the Basics: Specialized Spreader Types

While telescopic spreaders are the workhorses of the industry, specific cargo needs have led to specialized spreader designs that adhere to their own size and operational standards:

• 1. Fixed Spreader: Used in terminals that handle only one container size (e.g., only 40ft), offering a lighter and more cost-effective solution.

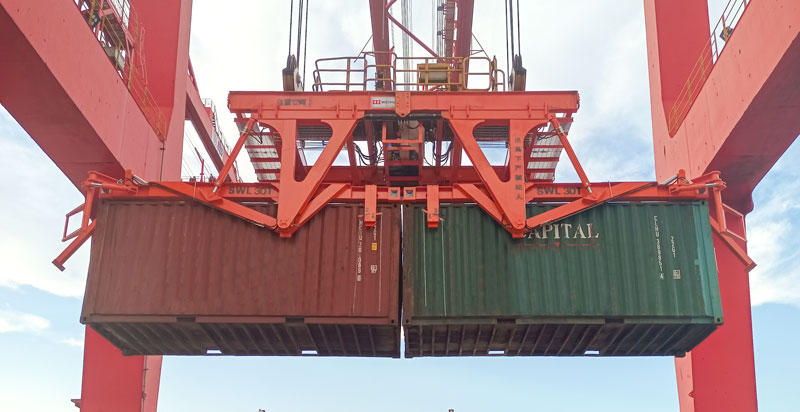

• 2. Multi-Tandem Spreader: A powerful spreader designed to lift two 20-foot containers simultaneously or one 40-foot container. Its size and control systems are critical for balancing the load.
• 3. Side-Lifter Spreader: Used by specialized trucks and cranes, these grab containers from the sides rather than the top. Their size is defined by the distance between their lifting arms.
• 4. Specialty Spreaders: These are built for non-standard cargo like open-top containers, refrigerated containers (reefers), or even odd-sized containers like the European pallet-wide variant, which is slightly wider than the standard ISO container. Their designs, while unique, still interface with the standard corner castings.

The Challenge: A Move Towards Non-Standard Sizes?

While the ISO system is robust, the market is seeing a push for even larger containers to improve land-based efficiency, such as:

• 45-foot Containers: Now very common and a standard feature on modern spreaders.

• 48-foot and 53-foot Containers: Primarily used in North American domestic trade (rail and truck). These are not ISO standard and require specific spreaders or adaptations.

This creates a challenge for ports and terminals. They must decide whether to invest in adjustable spreaders that can handle these non-standard sizes or stick solely with ISO-equipped machinery.

Container spreader size standards are a perfect example of a “boring” yet brilliant innovation that makes our modern world possible. By adhering to a universal set of rules for how containers are lifted and moved, this technology ensures the smooth, safe, and efficient flow of goods across the globe.

The next time you see a container ship being unloaded, you’ll know that the humble, adjustable spreader—governed by unwavering international standards—is the true unsung hero connecting the world, one container at a time.

FAQ: Container Spreader Size Standards

Q1: Why are there different spreader sizes?

A1: Containers themselves come in different standard lengths (primarily 20ft, 40ft, and 45ft). The spreader must adjust its length to fit and lock onto these different-sized containers securely. A single, adjustable spreader is far more efficient than having a dedicated machine for each container size.

Q2: What are the main standard container sizes a spreader must handle?

A2: The most common international standard sizes, based on ISO standards, are:

• 20 feet (20′)
• 40 feet (40′)
• 45 feet (45′) – often a “high-cube” container with extra height.

Q3: What are non-standard container sizes?

A3: These are sizes not defined by the ISO, most commonly 48-foot and 53-foot containers. They are primarily used in North American domestic road and rail transport. Not all spreaders can handle them; specialized equipment or adapters are often required.

Q4: What is a multi-tandem spreader?

A4: It’s a powerful specialized spreader that can lift two 20-foot containers at once (side-by-side) or a single 40-foot container. This significantly improves efficiency in terminals handling many smaller containers.
