Overhead Cranes For Timber Lifting

Table Of Contents Show

木材掠夺

用于木材吊装的桥式起重机

介绍

用于木材吊装的桥式起重机是一种专门设计的物料搬运系统，旨在高效、安全地搬运林业、锯木厂和木材加工厂的原木、木板和其他木材产品。这些系统悬挂在架空轨道上，可以在规定的工作区域内进行精确移动，同时最大限度地减少对地面的干扰。

用于木材吊装的桥式起重机的主要特点

1. 高效的负载处理：能够精准稳定地吊装重型木材。
2. 空间优化：由于升降机构在上方运行，因此可最大限度地利用地面空间。
3. 双梁方案：双梁型号可提供更高的承载能力（高达 450 吨），适用于重型作业。
4. 单梁方案：轻型、经济高效的解决方案，适用于较轻的载荷（0.5-20吨）
5. 可定制配置：可根据特定的工作空间尺寸和负载要求进行定制
6. 专用附件：设计用于配合木材抓斗、夹具和其他起重设备使用

木材吊装用桥式起重机技术参数表

范围	范围	笔记
起重能力	0.5 – 450吨	单梁：0.5-20吨；双梁：1-450吨
跨度（宽度）	1 – 31.5 米	提供标准和定制选项
提升高度	6-24米	可根据具体设施要求进行定制
旅行速度	20-40 米/分钟	根据负载和应用情况而变化
提升速度	0.8 – 20 米/分钟	提供双速选项，实现精确控制
电源	380V/50Hz/3相（标准）	可根据要求提供其他电压
结构设计	单梁桥式起重机、双梁桥式起重机或下悬式桥式起重机	根据负载需求

Overhead Cranes For Timber Lifting Applications

1. Timber mills and sawmills for log handling and processing
2. Lumber yards for stacking and retrieval
3. Construction sites for beam and plank installation
4. Paper mills for raw material handling
5. Furniture manufacturing facilities

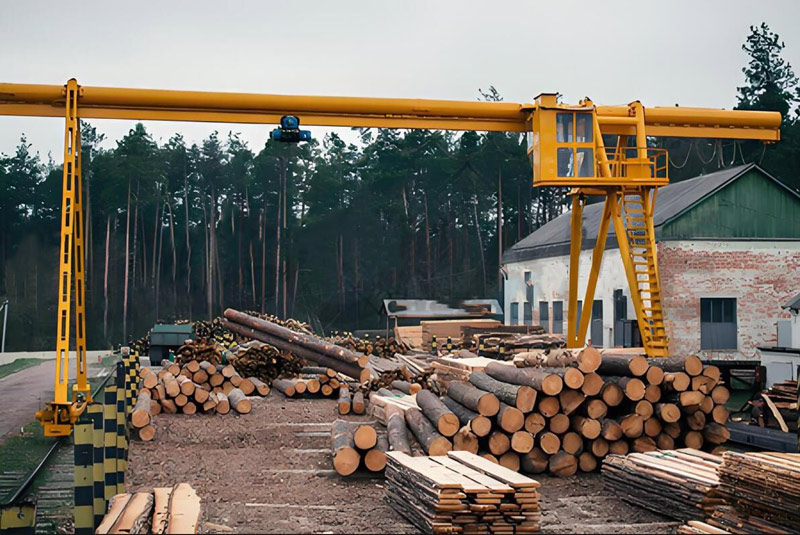

Gantry Crane For Timber Lifting

用于木材吊装的龙门起重机

Gantry Crane For Timber Lifting Introduction

Gantry cranes for timber lifting are robust, freestanding lifting systems with a bridge supported by two vertical legs that run on ground-mounted rails. Specifically designed for outdoor timber handling, these cranes provide exceptional stability and versatility for heavy-duty log management in forestry operations, ports, and timber storage yards.

Gantry Crane For Timber Lifting Key Features

1. Heavy-Duty Performance: Handles large timber volumes with ease, including oversized logs
2. Outdoor Capability: Designed for all-weather operation with wind-resistant structures
3. Track Mobility: Runs on ground rails, offering wide coverage of timber yards and storage areas
4. High Lifting Capacity: Single girder models up to 30 tons; Double girder models up to 400 tons
5. Customizable Span: Adaptable to various workspace dimensions and timber yard layouts
6. Enhanced Safety: Equipped with anti-sway systems and specialized timber attachments

Gantry Crane For Timber Lifting Technical Parameters Table

Parameter	Range	Notes
Lifting Capacity	10 – 400 tons	Single girder: 10-30 tons; Double girder: 20-400 tons
Span (Width)	12 – 35 meters	Some models available up to 32 meters
Lifting Height	6 – 60 meters	Customizable for specific application needs
Travel Speed	15 – 30 m/min	Varies based on load and terrain
Hoist Speed	10 – 30 m/min	Double-speed options for precise positioning
Power Supply	380V/50Hz/3Phase	Other specifications available upon request
Structural Design	Single girder truss, double girder, or portal frame	Based on load requirements and environmental conditions

Gantry Crane For Timber Lifting Applications

1. Forestry operations for log loading/unloading and transportation
2. Timber ports and docks for ship loading/unloading
3. Lumber storage yards for stacking and retrieval
4. Paper mill facilities for raw material handling
5. Construction sites for heavy timber component installation

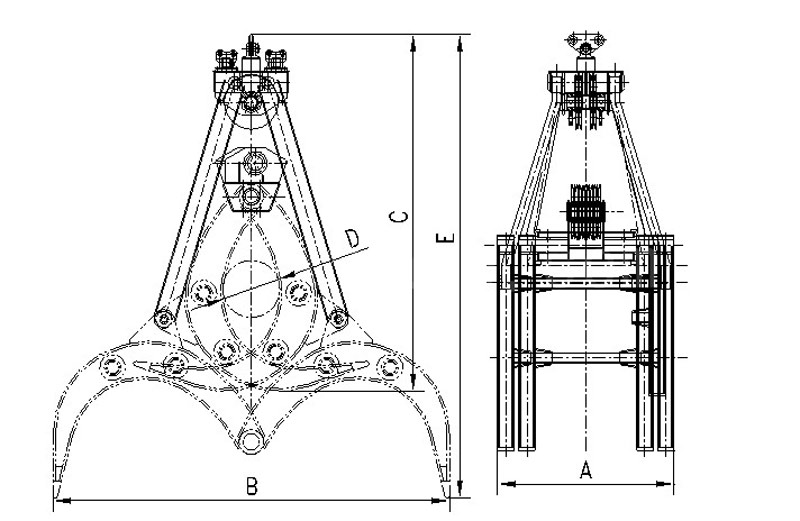

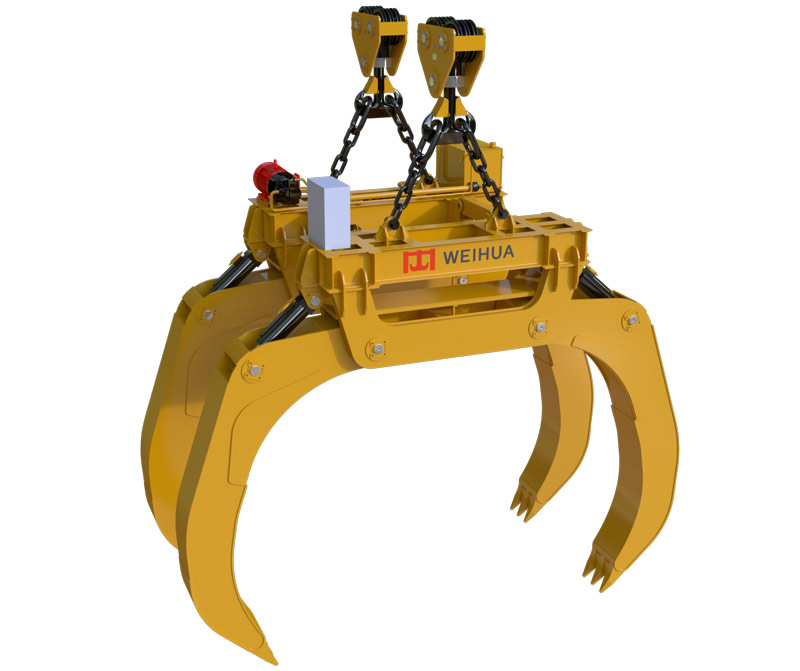

Timber Grabs

木材掠夺

Timber Grabs Introduction

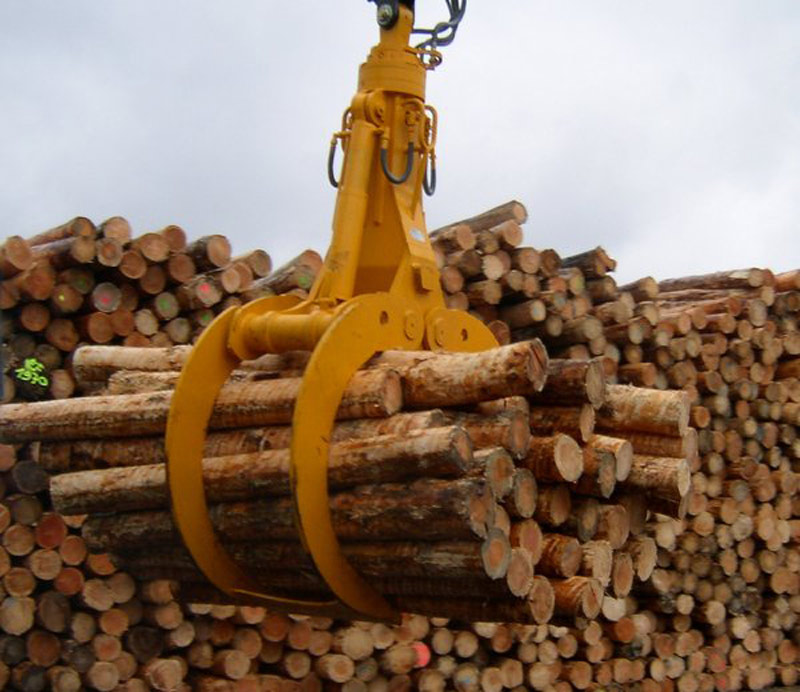

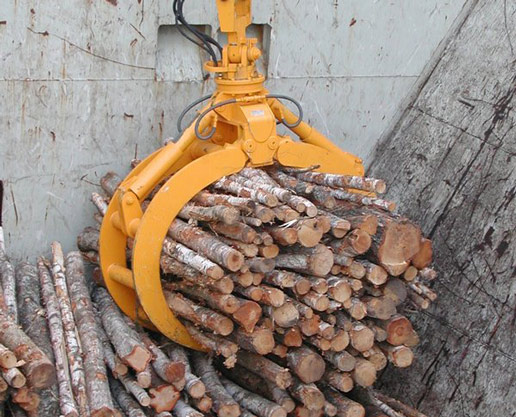

Timber grabs (also known as log grabs or wood grapples) are specialized attachments designed for efficient lifting, loading, and handling of logs, timber, and other elongated wooden materials. These devices work in conjunction with overhead cranes, gantry cranes, or excavators to significantly improve timber handling efficiency while reducing manual labor.

Timber Grabs Key Features

1. High Load Capacity: Capable of securely gripping large, heavy logs of varying diameters
2. Precision Grasping: Engineered to handle irregularly shaped logs with minimal damage

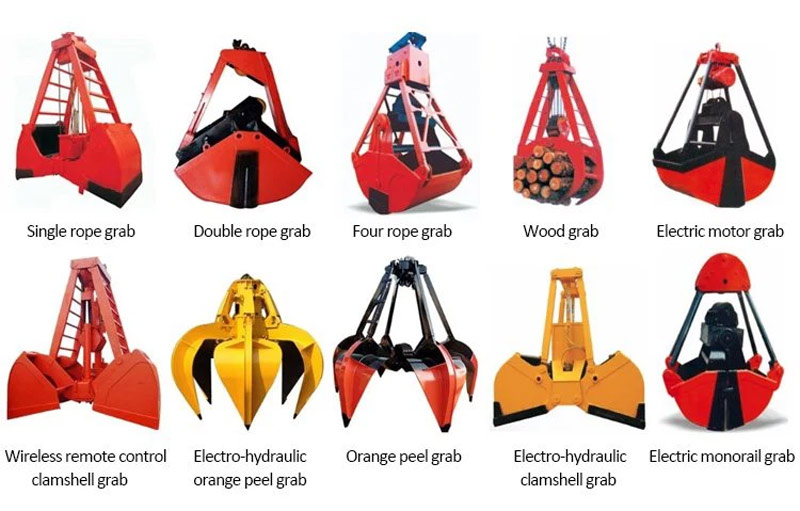

3. Multiple Configurations: Available in single-rope, double-rope, four-rope, and electric/hydraulic models
4. 坚固耐用的结构：采用高强度钢材制成，在恶劣环境下具有出色的耐磨性
5. 操作灵活：可与各种起重设备配合使用，适用于不同的木材搬运场景

木材抓取技术参数表

范围	描述	笔记
类型	单绳、双绳、四绳、电动或液压	根据起重机类型和应用场景
负载能力	1-50吨	因型号和设计而异
开口宽度	1.0 – 3.6 米	确定可处理的最大原木直径。
重量	200 – 2,400 公斤	没有悬架部件
附件方法	直接安装、悬挂系统或液压连接	根据起重机类型
旋转能力	固定旋转或360°液压旋转	可选功能，增强操控性
材料	高强度钢合金	确保耐用性和耐磨性
