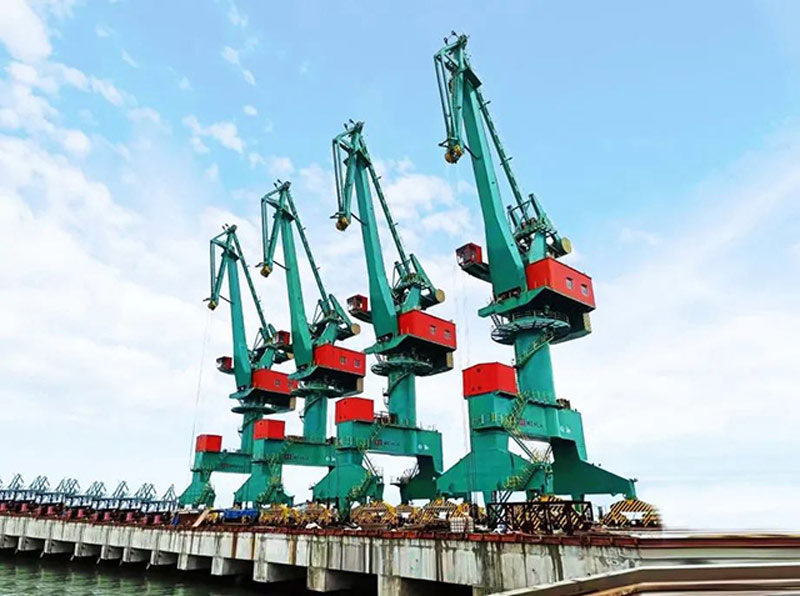

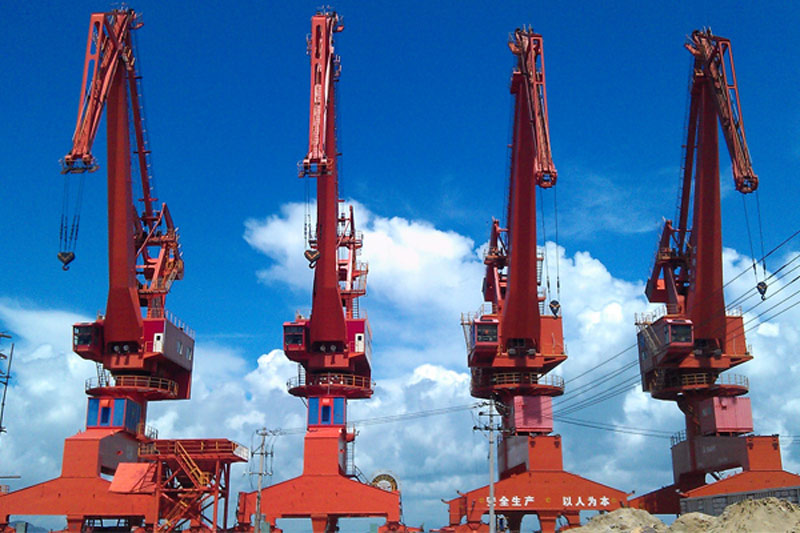

18 Ton Single Jib Portal Crane

The 18 Ton Single Jib Portal Crane is a high-efficiency, durable, and versatile gantry lifting solution engineered for heavy-duty material handling in ports, shipyards, railway freight yards, industrial yards, and logistics terminals. Adopting a optimized single-jib structural design, this portal crane integrates lifting, luffing, slewing, and traveling functions into one compact and robust unit, balancing outstanding load-bearing capacity, flexible operation, and stable performance. It delivers reliable 18-ton rated lifting performance, making it an ideal mainstream equipment for medium and heavy cargo loading, unloading, and stacking operations.

Core Structural Features

Built with a high-strength welded steel framework, the crane’s portal frame and single jib undergo rigorous stress analysis and anti-fatigue testing, ensuring excellent rigidity, seismic resistance, and deformation resistance even under long-term continuous operation. The streamlined single-jib structure features light self-weight, large working outreach, and small horizontal deflection during luffing, effectively improving lifting accuracy and working coverage compared with traditional multi-jib cranes.

Equipped with a full 360° slewing platform and precise four-bar linkage luffing mechanism, the crane realizes smooth, jitter-free angle adjustment and omnidirectional operation without dead zones. The modular mechanical structure simplifies assembly, disassembly, and daily maintenance, greatly reducing later operation costs. It supports dual working modes of hook lifting and grab handling, enabling flexible adaptation to bulk cargo, container parts, and heavy mechanical equipment handling.

18 Ton Single Jib Portal Crane Technical Parameters

• ◆ Rated Lifting Capacity: 18 Ton
• ◆ Working Class: A4-A7 (customizable)
• ◆ Max Lifting Height: 20m (customizable per site demand)
• ◆ Working Outreach: 10-40m (adjustable)
• ◆ Slewing Range: 360° Full Rotation
• ◆ Control Mode: Cabin Operation / Wireless Remote Control
• ◆ Driving Mode: AC Frequency Conversion Drive
• ◆ Applicable Rail Gauge: Customized
• ◆ Working Environment: Outdoor open-air, wind-resistant, dust-proof, moisture-proof

Advanced Control & Driving System

This 18-ton single jib portal crane adopts mature AC frequency conversion speed regulation and PLC intelligent control systems. All operating mechanisms feature stepless speed adjustment, achieving stable start, precise positioning, and smooth stop without impact, which effectively protects cargos and extends the service life of mechanical components. Operators can choose between cabin manual operation and wireless remote control according to on-site working conditions, with simple and humanized operation logic that lowers operational difficulty and improves working efficiency.

The traveling mechanism is equipped with high-precision walking wheels and anti-derailment devices, supporting stable linear movement on standard rails. The matched high-power low-noise motor provides sufficient power reserve, ensuring stable and efficient operation even in harsh working environments such as high wind, dust, and humidity.

Strict Safety Protection Design

Safety is prioritized in every detail of the crane’s design. It is fully equipped with comprehensive safety protection devices, including overload limiting devices, height limit switches, slewing limiters, emergency stop systems, and wind speed alarm devices. Once the operating parameters exceed the safe range, the system will automatically trigger alarm and power-off protection to avoid equipment failure and safety accidents.

In addition, the crane is fitted with anti-slip platforms, protective railings, and professional lighting and communication systems for on-site operation. The whole machine adopts anti-corrosion paint treatment, with excellent rust and weather resistance, adapting to long-term outdoor open-air operation and extending the overall service life of the equipment.

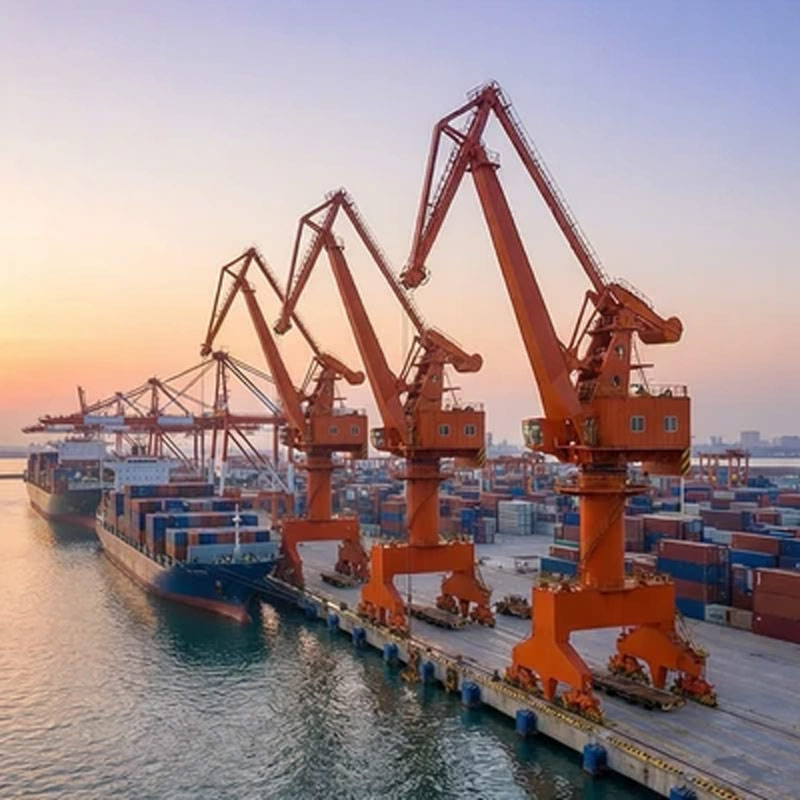

Application Scenarios

Product Advantages

• ◆ High Cost Performance: Simple and compact structure, low manufacturing and maintenance costs, high operational efficiency, and fast return on investment
• ◆ Stable & Durable: High-strength steel structure and mature accessory configuration, anti-fatigue and anti-corrosion, long service life
• ◆ Flexible Operation: 360° omnidirectional slewing, precise luffing and positioning, adaptable to diverse working conditions
• ◆ High Safety: Full-range safety protection systems to ensure zero-risk standard operation
• ◆ Customizable: Supports personalized customization of lifting height, outreach, span, and control modes to meet diverse customer demands

After-Sales Service

We provide one-stop full lifecycle services including equipment customization, factory manufacturing, on-site installation, commissioning, operator training, and after-sales maintenance. All products comply with international quality certification standards, with reliable quality and stable performance. Professional technical teams offer 24-hour online technical support and rapid on-site maintenance services to ensure long-term stable and efficient operation of customer equipment.
