Overhead Crane Used for Steel Coil Handling

An overhead crane used for steel coil handling is a custom-engineered electric overhead travelling (EOT) crane designed specifically to lift, transport, stack and load heavy steel coils safely inside steel mills, coil warehouses, steel service centers and metal processing workshops. Unlike general-purpose overhead cranes, this coil handling overhead crane is optimized for the special shape and weight of hot rolled and cold rolled steel coils, preventing coil surface scratches, deformation and dropping risks during continuous heavy-duty operation.

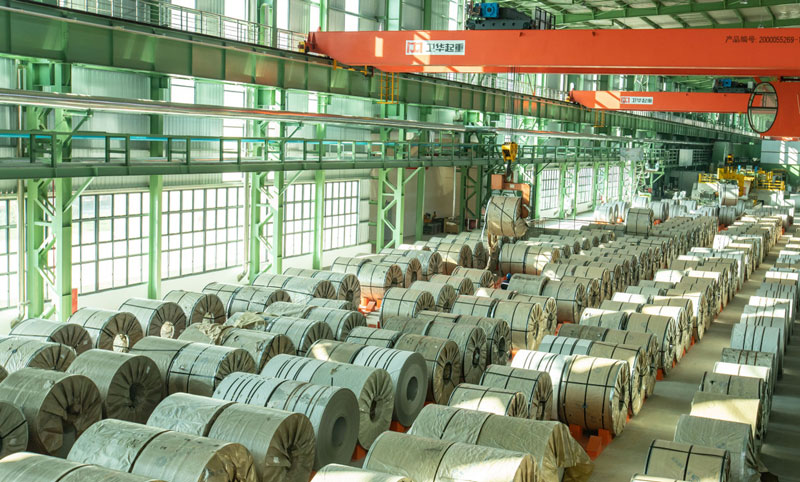

overhead crane used for steel coil handling

Most customers select a double girder overhead crane for steel coil handling because it delivers stronger rigidity, higher stability and larger load capacity. The typical working duty class reaches A6, A7 or FEM 2M~4M, suitable for 24-hour cyclic material handling. The common rated capacities include 10 ton, 20 ton, 30 ton, 50 ton overhead crane for steel coil handling, and larger custom tonnage up to 250 tons is available for heavy industrial metallurgy workshops.

The core advantage of this overhead crane lies in its matched below-hook attachments. The overhead crane with C hook for steel coil lifting is the most popular solution for horizontally placed coils. The C-hook adopts high-strength alloy steel structure, with protective padding on contact surfaces to avoid damaging coil edges. For hot coils or high-frequency handling scenarios, users can choose a magnetic overhead crane for hot and cold steel coil handling, equipped with electromagnetic coil lifters for fast, secure pickup without mechanical clamping. In modern intelligent warehouses, the automated overhead crane for steel coil storage and stacking with PLC control, laser positioning and anti-sway system helps realize unmanned coil storage and retrieval, greatly improving warehouse space utilization.

This heavy duty EOT crane for steel coil warehouse serves multiple industry scenarios. Steel rolling mills use metallurgical overhead crane for rolling mill steel coil transport between hot rolling lines and cooling zones. Steel service centers rely on overhead crane for steel service center coil handling to unload incoming coils, reposition coils in racks and load finished coils onto trucks for delivery. Coil storage depots need reliable overhead cranes to stack multi-layer coil racks with precise positioning.

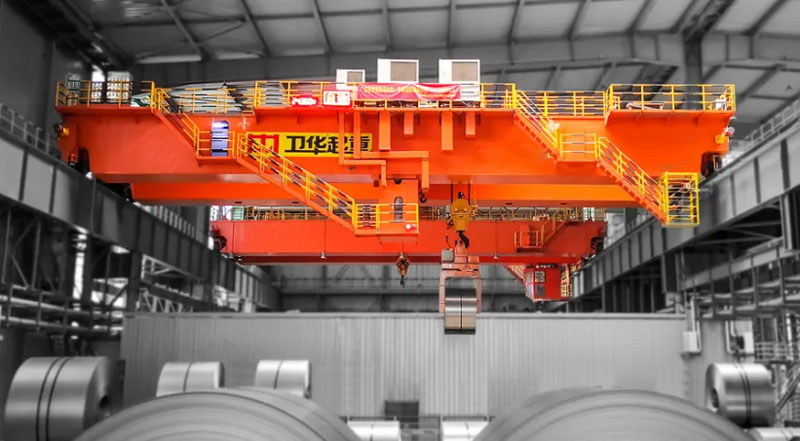

overhead crane used for steel coil handling with C hook

Key Features of Overhead Crane Used for Steel Coil Handling

• 1. Heavy-duty main girder: Double girder welded box beam, high bending resistance to bear impact loads during coil lifting.
• 2. Special coil lifting attachments: C-hook, mechanical coil tong, electromagnetic lifter, customized according to coil inner diameter, width and temperature.
• 3. Anti-sway & inverter travelling system: Variable frequency drive reduces load swing, critical for stable steel coil positioning and protection against coil damage.
• 4. Full safety protection: Overload limiter, upper/lower lifting limit switch, emergency stop, buffer, phase loss protection and load monitoring system.
• 5. Flexible control modes: Cabin control, wired pendant or radio remote control for operator selection.
• 6. Customizable parameters: Span, lifting height, working duty, power supply can be adjusted to fit existing factory building and coil rack layout.

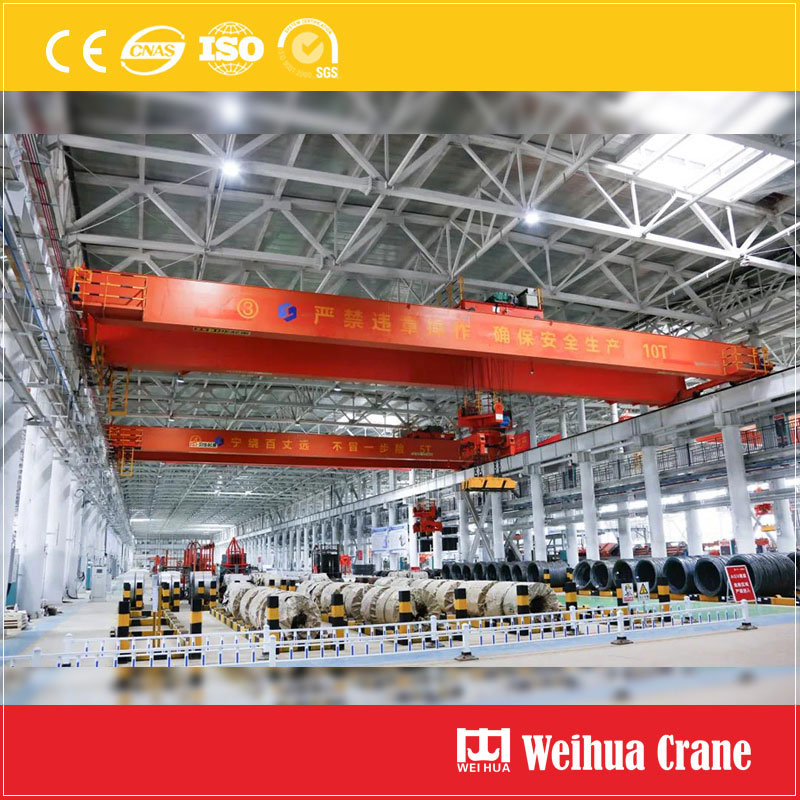

magnetic overhead crane for hot and cold steel coil handling

Technical Parameters Reference

• ◆ Lifting capacity: 5 ~ 250 ton
• ◆ Span: 10.5m ~ 31.5m (custom span available)
• ◆ Lifting height: 6m ~ 18m or customized
• ◆ Working class: A5-A8 / FEM 1M ~ FEM 4M
• ◆ Main attachments: C-hook, electromagnetic lifter, coil tong
• ◆ Application: Steel mill, coil warehouse, steel service center, metal processing plant

Selection Guide

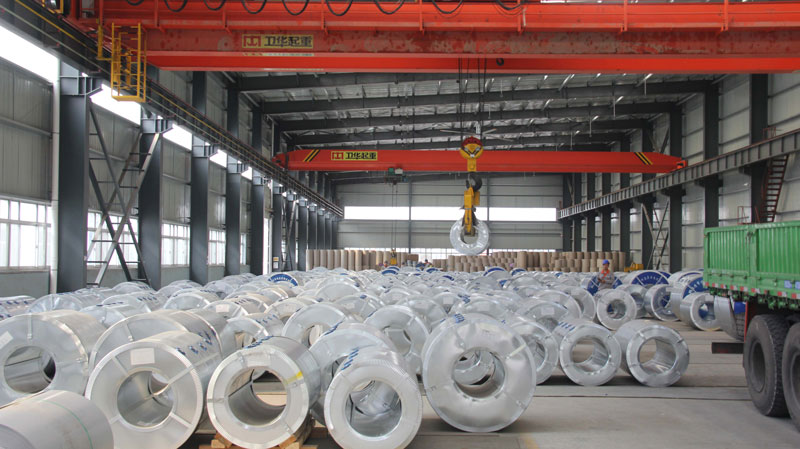

overhead crane used for steel coil handling

When buying an overhead crane used for steel coil handling, first confirm coil weight, coil dimension and operating temperature. Cold rolled coils usually adopt C-hook type overhead crane. High-temperature hot steel coils require heat-resistant magnetic overhead crane. If your warehouse plans automatic coil stacking, the automated overhead crane for steel coil storage and stacking is a better long-term investment. We provide full site survey, design drawing, production, installation guidance and after-sales maintenance service for your overhead crane project.

FAQ

Q: What is overhead crane used for steel coil handling?

A: It is a special EOT overhead crane equipped with coil lifting tools, for moving, stacking and loading steel coils in steel plants and coil warehouses. Double girder design is widely used for heavy coil loads.

Q: Which lifting attachment is better, C hook or magnetic lifter?

A: Overhead crane with C hook for steel coil lifting is cost-effective and suitable for most cold coils. Magnetic lifters work faster for clean coil surfaces, ideal for high-volume continuous production lines.

Q: Can you supply 30 ton overhead crane for steel coil handling?

A: Yes. We offer 10t,20t,30t,50 ton overhead crane for steel coil handling and heavy tonnage custom metallurgical cranes.

Q: Where can this coil handling overhead crane be applied?

A: Steel rolling mills, coil storage warehouses, steel service centers, metal cutting & processing factories.
