40ft Container Gantry Crane

The 40ft Container Gantry Crane is a high-efficiency, heavy-duty handling equipment specifically designed for loading, unloading, stacking and transferring 40ft international standard containers, as well as compatible with 20ft, 45ft containers and special oversize/overweight containers. It is widely recognized as the core equipment in modern container terminals, railway freight yards, inland logistics centers and container storage yards, playing an irreplaceable role in optimizing logistics efficiency and improving yard space utilization.

Product Overview

Our 40ft Container Gantry Crane integrates advanced mechanical design, intelligent control and reliable performance, tailored to meet the high-intensity, continuous operation needs of container handling scenarios. With a focus on precision, safety and energy efficiency, this series of cranes adopts modular structural design, flexible configuration options and mature manufacturing technology, ensuring stable operation even in harsh working environments such as coastal salt spray, high temperature, low temperature and strong wind. It effectively solves the pain points of low efficiency, high labor intensity and poor safety in traditional container handling, helping customers reduce operational costs and enhance market competitiveness.

40ft Container Gantry Crane Core Types & Key Features

We offer two main types of 40ft Container Gantry Cranes to adapt to different site conditions and operational requirements, each with unique advantages to meet diverse customer needs:

1. Rail-Mounted Container Gantry Crane (RMG)

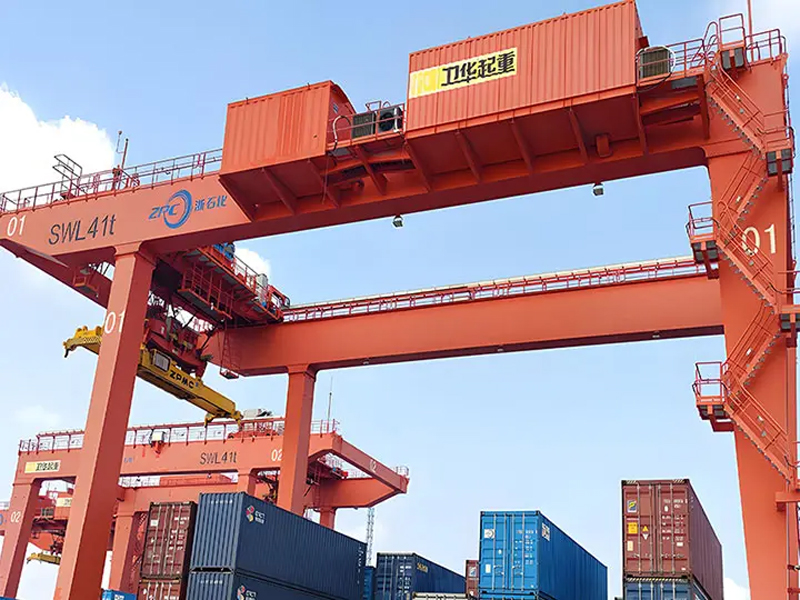

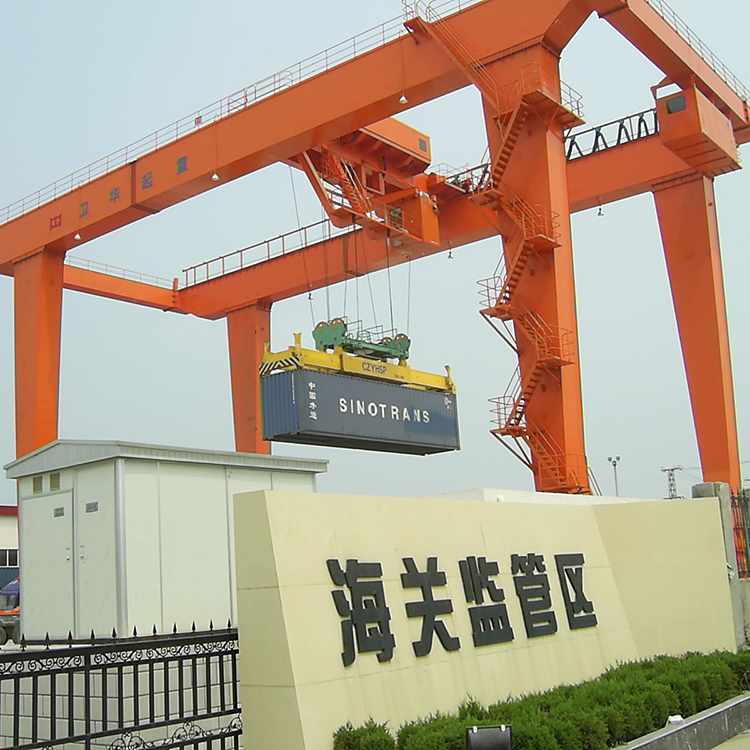

Designed for large-scale, high-throughput container yards with fixed operational areas, the RMG type moves precisely along preset rails, ensuring high positioning accuracy and efficient space utilization. Key features include:

• ◆ High Precision & Throughput: Equipped with automatic positioning technology and vector frequency conversion control, the positioning error is controlled within 5cm, and the hourly throughput can reach more than 40 TEU, significantly improving handling efficiency.
• ◆ Environmentally Friendly & Energy-Saving: Adopts full electric drive system, with low noise, zero emissions and energy feedback technology, reducing energy consumption by 30% compared with traditional models.
• ◆ Stable & Durable: The gantry structure adopts high-strength steel plate, after sandblasting, primer spraying and drying pretreatment to eliminate internal stress and enhance corrosion resistance, with a service life of up to 20 years and a loading cycle of 2 million times.
• ◆ Intelligent Monitoring: Equipped with CMS intelligent service management system, which can real-time monitor equipment operating status, conduct fault diagnosis and data analysis, and reduce maintenance costs.

2. Rubber-Tyred Container Gantry Crane (RTG)

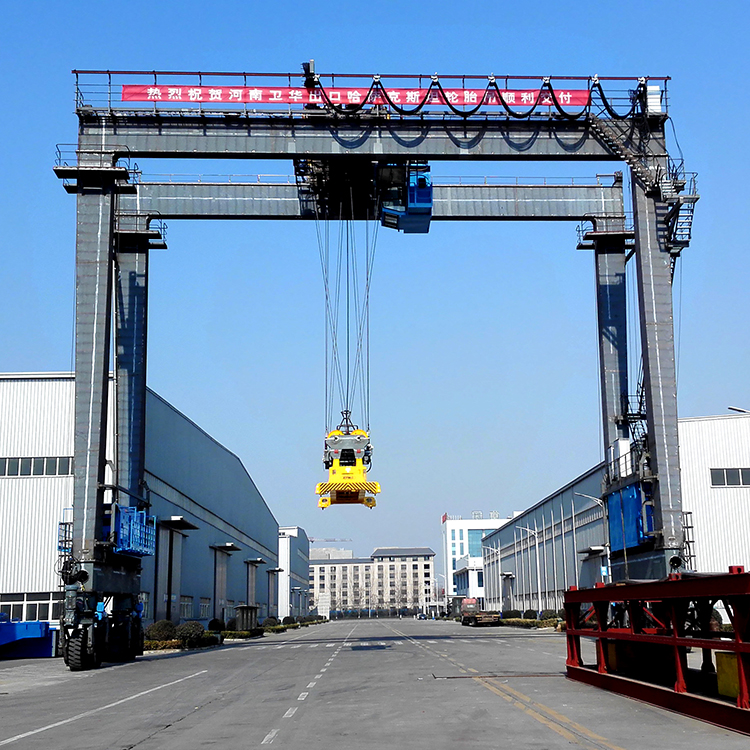

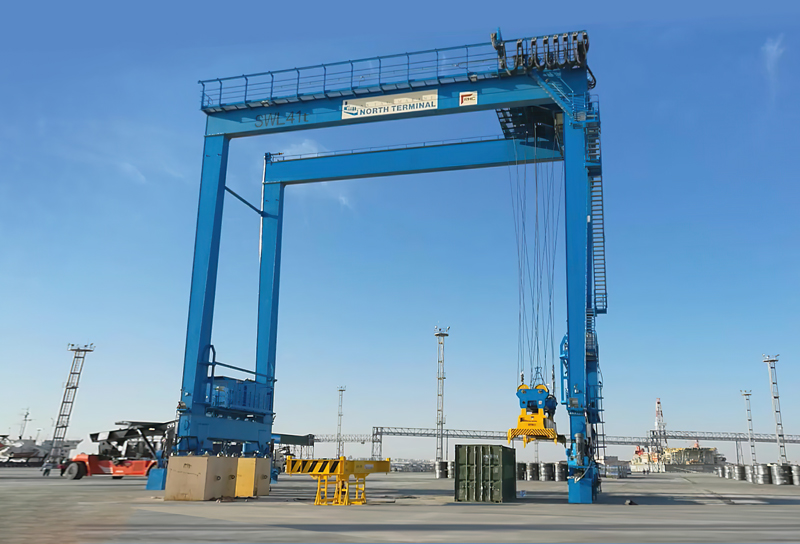

Ideal for medium-sized yards, inland ports and logistics centers that require flexible operation without fixed rail constraints, the RTG type moves freely on rubber tires, with strong mobility and adaptability. Key features include:

• ◆ High Flexibility: Equipped with 8-16 tubeless rubber tires and 90-degree right-angle steering mechanism, it can move freely between different work areas, adapting to changing yard layouts and expansion needs without additional infrastructure investment.
• ◆ Dual Power Options: Available in diesel, electric or hybrid power systems, with a cable drum power supply as standard and optional diesel generator backup, ensuring uninterrupted operation even in power outages.
• ◆ Easy Installation & Transfer: Modular and detachable frame structure, convenient for transportation, installation and disassembly, shortening delivery and commissioning time.
• ◆ Precision Anti-Sway: Equipped with bidirectional flexible resistance anti-sway system or electronic anti-sway system, reducing container swing by over 90%, ensuring safe and stable handling of heavy containers.

40ft Container Gantry Crane Technical Specifications

The 40ft Container Gantry Crane offers customizable parameters to meet specific operational needs, with the following standard configurations and optional ranges:

Product Advantages

• ◆ Strong Compatibility: Specifically optimized for 40ft containers, compatible with 20ft, 45ft containers and special containers, meeting multi-specification handling needs.
• ◆ Efficient & Stable: Fully hydraulically driven or electric driven, with 3-point support design to ensure stable operation and smooth landing of wheels; single-cycle time ≤ 90s/TEU, significantly improving turnover efficiency.
• ◆ Safe & Reliable: Equipped with multiple safety protection devices, including overload protection, anti-collision system, emergency stop button, wind speed indicator, anti-typhoon anchoring device and limit switch, ensuring safe operation in all scenarios.
• ◆ Customizable Design: Modular components and flexible parameter configuration, supporting customization of span, lifting height, power system and control mode according to customer site conditions and operational requirements.
• ◆ Low Operational Cost: Adopts high-quality components (such as OMRON PLC, Schneider contactor, SEW reducer) to reduce failure rate; energy-saving technology and intelligent monitoring system reduce energy consumption and maintenance costs.

40ft Container Gantry Crane Application Scenarios

The 40ft Container Gantry Crane is widely used in various scenarios requiring efficient container handling, including:

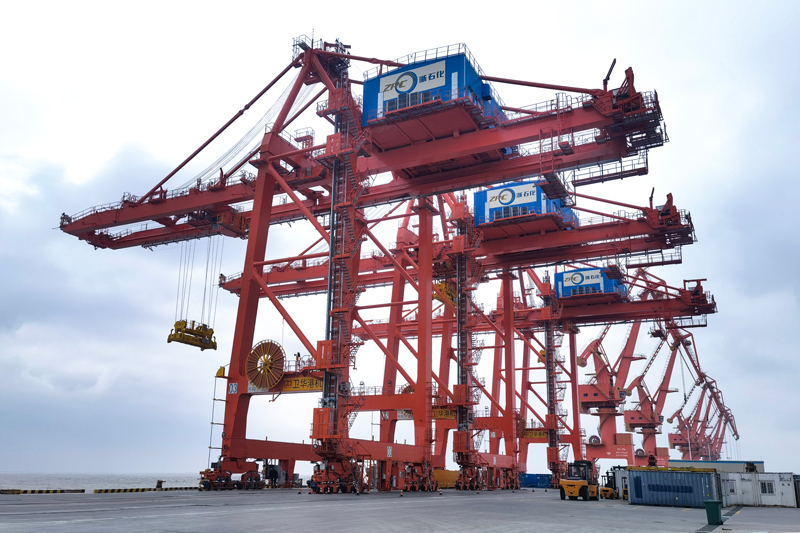

• ◆ Seaport Terminals: Handling containers between ships, trucks and storage stacks, improving port throughput.
• ◆ Railway Freight Yards: Transferring containers between rail wagons and yards, realizing intermodal transportation of rail and road.
• ◆ Inland Logistics Centers & Container Yards: Stacking and transferring containers, maximizing yard space utilization.
• ◆ Industrial Parks & Manufacturing Bases: Handling large-scale containerized raw materials and finished products, optimizing production logistics efficiency.

After-Sales Service & Support

We are committed to providing comprehensive after-sales service to ensure the stable operation of your equipment:

• ◆ Professional Installation & Commissioning: Our experienced engineers provide on-site installation, commissioning and operator training to ensure the equipment is put into use quickly.
• ◆ Timely Maintenance & Repair: 24/7 after-sales hotline, professional maintenance team responds quickly to solve equipment failures; regular maintenance reminders and on-site inspection services.
• ◆ Genuine Spare Parts Supply: A complete spare parts warehouse, providing genuine spare parts in a timely manner to avoid operation interruption caused by lack of parts.
• ◆ Long-Term Technical Support: Provide technical consultation, equipment upgrading and transformation services for a long time to meet the changing needs of your business development.

Our 40ft Container Gantry Crane is designed to create greater value for your container handling operations with reliable performance, efficient operation and thoughtful service. Whether you need a rail-mounted or rubber-tyred model, we can provide customized solutions tailored to your specific needs. Contact us today to learn more about product details and quotation information!
