Gantry crane hook

As the pivotal connection between your crane’s lifting mechanism and critical loads, the Weihua Gantry Crane Hook embodies over 30 years of metallurgical innovation and rigorous quality control. Trusted in the world’s most demanding lifting environments, from Arctic logistics hubs to tropical megaports.

Gantry Crane Hook Technical Specifications (Typical Range – Customizable)

Parameter	Specification / Range
Safe Working Load (SWL)	1 ton to 500+ tons (Standard & Custom Capacities Available)
Material	High-Tensile Alloy Steel (e.g., 34CrMo4, 42CrMo, 35CrMo, C-Mn Steel per standards)
Safety Standards	ISO 4301, FEM 1.001, ASME B30.10, DIN 15400, GB/T 10051.1, CE Marked
Proof Load Tested	Typically 125% to 200% of SWL
Design Safety Factor	Minimum 4:1 (often higher, e.g., 5:1 for M6/FEM 1.001m)
Surface Treatment	Electro-galvanized, Hot-Dip Galvanized, Painted, Stainless Steel (AISI 316)
Rotation	Fixed Eye, Plain Bushing Rotation, Sealed Anti-Friction Bearing Rotation (360°)
Safety Latch	Spring-Loaded or Bolt-Type (Standard)
Traceability	Unique serial number and test certificate provided

Core Features & Benefits

• 1. Uncompromising Strength & Durability:

  • Premium Materials: Forged from high-tensile alloy steel (e.g., Grade P, Q, S, or equivalent per FEM/DIN/ISO standards) for exceptional strength-to-weight ratio and resistance to deformation.
  • Robust Construction: Precision forging ensures superior grain structure flow, minimizing stress points and maximizing fatigue life under repeated heavy loads.
  • Corrosion Resistance: Options include high-quality zinc plating (electro or hot-dip galvanizing), specialized coatings, or stainless steel variants for harsh environments (marine, chemical).

• 2. Enhanced Safety & Reliability:

  • Rigorous Testing: Every hook undergoes Non-Destructive Testing (NDT – Magnetic Particle, Dye Penetrant) and proof load testing (typically 1.5x – 2x SWL) to guarantee structural integrity and compliance with safety regulations (ISO 4301, FEM 1.001, ASME B30.10, DIN 15400).
  • High Safety Factor: Designed with a significant safety margin exceeding minimum regulatory requirements (e.g., 4:1, 5:1, or higher depending on classification).
  • Secure Latch Options: Reliable spring-loaded safety latches or robust bolt-type latches included as standard to prevent accidental load disengagement.

• 3. Optimized Performance:

  • Low Friction & Smooth Operation: Precision-machined throat and saddle points minimize friction with slings and rigging, reducing wear and ensuring smooth load movement.
  • Reduced Weight (Where Applicable): Advanced forging techniques and design optimization result in lighter hooks without sacrificing strength, improving crane efficiency.
  • Rotation Options: Available in fixed eye, standard rotation (plain bush/bearing), or low-friction sealed bearing rotation models (up to 360°) for effortless load positioning and reduced wire rope twisting.

• 4. Versatility for Every Task:

  • Comprehensive Range: Choose from various hook types:

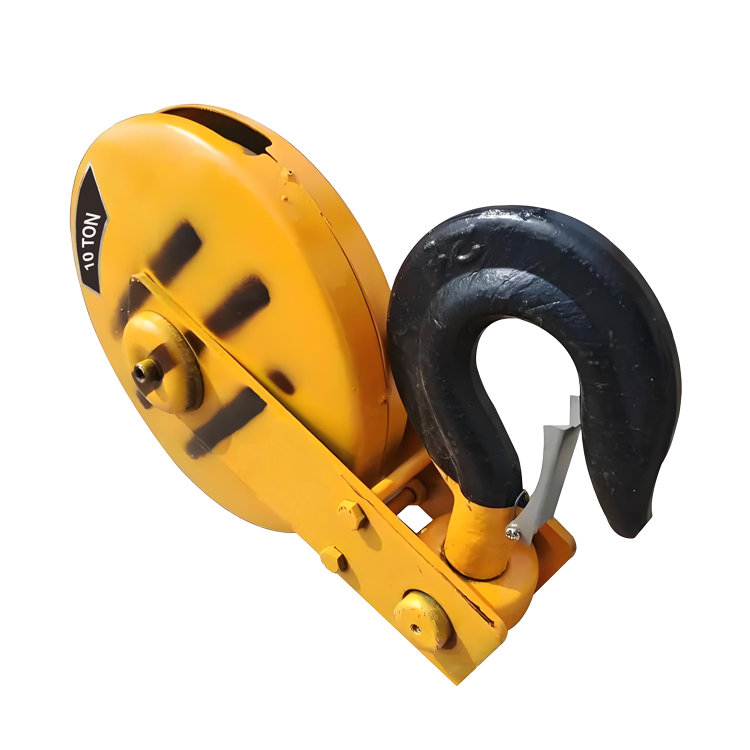

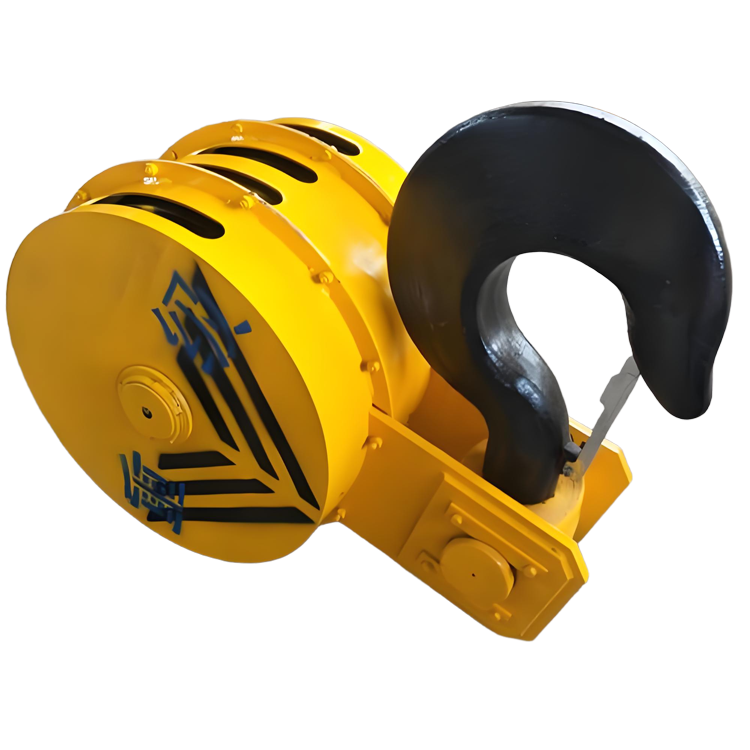

    • Forged Single Hooks: Standard duty to ultra-heavy duty (SWL from 1 ton to 500+ tons).

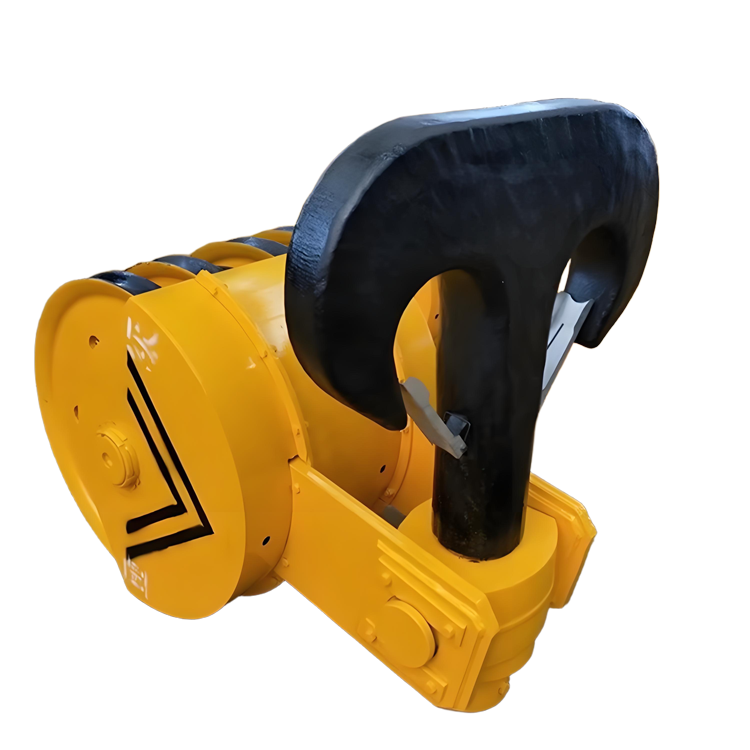

    • Forged Ramshorn Crane Double Hook: Ideal for balanced lifting with two sling legs (SWL from 1 ton to 300+ tons).
    • Laminated Hooks: Multiple steel plates for specific high-impact or specialized applications.
  • Multiple Shank Configurations: Eye hooks, Clevis hooks, and hooks compatible with Weihua’s advanced trolley systems.

Why Choose Weihua Gantry Crane Hooks?

• 1. Global Leader: Leverage Weihua’s 30+ years of experience as a top crane manufacturer.

• 2. Quality Assurance: Stringent quality control at every stage, from raw material to final inspection.

• 3. Safety First: Engineered and tested to exceed global safety standards.

• 4. Long Service Life: Durable construction minimizes downtime and replacement costs.

• 5. Custom Solutions: Tailor hook specifications (SWL, rotation, material, coating) to your exact gantry crane and application needs.

• 6. Comprehensive Support: Global network for parts, service, and technical expertise.

Gantry Crane Hook Applications

• 1. Port Container Handling & Bulk Material Terminals
• 2. Shipbuilding & Repair Yards
• 3. Heavy Fabrication Workshops & Steel Mills
• 4. Large-Scale Construction Projects
• 5. Power Plants & Infrastructure Development
• 6. Heavy Machinery Installation & Maintenance
• 7. Rail Yards & Logistics Centers

Industry	Hook Solution	Key Feature
Ports/Terminals	RAMSHORN HOOK + TwistLock Adaptor	360° rotation + ISO 3874 container compatibility
Steel Mills	FORGED LADLE HOOK (M8 Duty)	Refractory heat shield (>800°C intermittent)
Wind Energy	MODULAR EYE HOOK with Dyneema® Sling Interface	Lightweight (35% mass reduction) for tower lifts
Offshore	DNV-GL Certified Hook with Zn-Ni Alloy Coating	Salt spray resistance >1,000 hrs (ISO 9227)
Automotive	Low-Profile Rotating Hook with RFID Tag	Collision avoidance in dense assembly lines

Advanced Safety Systems

1. Proactive Load Security:

   • Smart Latch Monitoring: Optional IoT-enabled sensors detecting latch engagement status (output to crane control system).
   • Anti-Swing Grooves: Machined throat geometry minimizes sling slippage during dynamic lifts.

2. Failure Prevention:

   • Wear Indicators: Laser-etched wear limit markers on critical load zones.
   • Overload Protection: RFID-tagged hooks with embedded load history (compatible with Weihua Crane Health Monitoring System).
