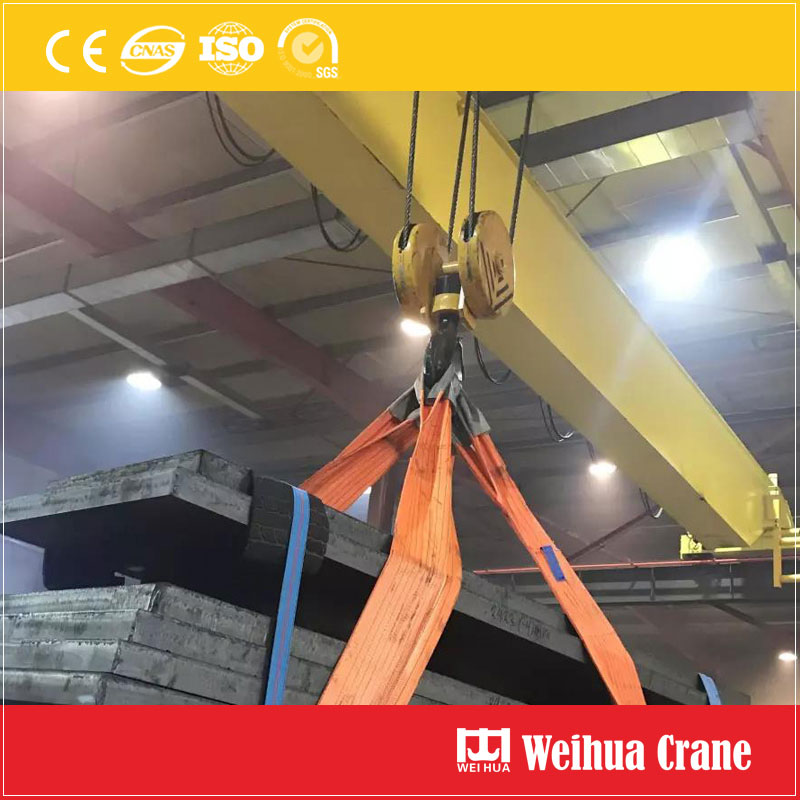

オーバーヘッドクレーンフックブロックアセンブリ

天井クレーンフックブロックアセンブリは基本です, robust component responsible for the safe, 効率的, and controlled lifting, 低下, and suspension of loads on overhead traveling cranes (EOT cranes), ガントリークレーン, そしてモノレール. It serves as the crucial link between the crane’s hoisting mechanism (wire rope or chain) そして負荷そのもの. Engineered for demanding industrial environments, its design directly impacts lifting capacity, 安全性, and operational smoothness.

Overhead Crane Hook Block Assembly – Technical Parameters

Critical Notes:

• 1. SWL is valid only when load is centered – Angular lifts reduce capacity.
• 2. Rope/Sheave Ratio: Minimum sheave diameter ≥ 18× rope diameter (FEM standard).
• 3. Never modify/weld hooks – Replace damaged components immediately.
• 4. Latch is mandatory – Ensure it engages before lifting.

For custom configurations (例えば。, 防爆, high-speed lifts), consult engineering team.

重要なコンポーネント & 工事

• 1. フック: The primary load-bearing element, forged from high-tensile alloy steel (通常グレード 80, 100, または高). Available in various configurations:

  • スイベルクレーンフック: Rotates 360° on bearings, preventing load-induced rope twist. Essential for most applications.

  • 修理済み (Non-Swivel) フック: Rigidly mounted, used where rotation control is needed.

  • 安全ラッチ: A spring-loaded or gravity-operated latch that prevents slings or chains from accidentally disengaging from the hook throat. Mandatory for most safety standards.

• 2. シーブ(s) (Pulleys): Precision-machined, hardened steel wheels grooved to guide and support the hoist wire rope. Mounted on high-capacity bearings for smooth rotation with minimal friction. The number of sheaves determines the mechanical advantage (reeving).

  • Single Sheave Block: Simple design for lighter loads or direct lifts.
  • *Multi-Sheave Block (2, 3, 4, 6, or more sheaves):* Provides significant mechanical advantage, allowing smaller, more economical hoist motors to lift heavier loads or reducing rope pull force.

• 3. Hook Block / Housing: The central structural frame, usually fabricated from heavy-duty steel plates or cast steel. It:

  • Securely holds the sheave(s) via robust pins or axles.

  • Houses the hook suspension (swivel bearing or trunnion mount).

  • Provides attachment points for the hoist rope(s) and the balancing equalizer (if used).

  • Protects internal components from impact and environmental factors.

• 4. Bearings: Critical for performance and longevity:

  • シーブベアリング: Large-diameter roller bearings (often spherical roller bearings) handle high radial loads and slight misalignment.

  • Swivel Hook Bearings: Thrust bearings combined with radial bearings allow smooth hook rotation under full load.

• 5. Lifting Lugs / Equalizer Connection: Points on the block housing where the hoist rope(s) terminate or where an equalizer beam connects to distribute load evenly across multiple rope falls.

• 6. Rope Guards / Side Plates: Protect the sheaves and rope from external damage and prevent rope jump-off. Often incorporate wear plates in high-abrasion areas.

Types of Hook Block Assemblies

• Single Reeved Hook Block: One rope fall entering and leaving the block (single sheave or multi-sheave where rope starts and ends on the hoist drum). Simplest setup.

• Double Reeved Hook Block: The rope end is anchored on the block itself, creating two supporting rope parts. Requires fewer sheaves than single reeving for the same mechanical advantage, often resulting in a more compact block.

• 回転 (スイベル) Hook Block: Features a hook mounted on a rotating bearing assembly.

• Non-Rotating (修理済み) Hook Block: Hook is rigidly attached to the block housing.

• Balanced (Equalized) フックブロック: Used with multiple hoist ropes (例えば。, 2/1, 3/1, 4/1 reeving). Employ an equalizer beam above the hook block to ensure even load distribution across all ropes, critical for stability and preventing uneven wear. The hook block itself connects to the equalizer.

Essential Features & 利点

• 高負荷容量: Rated for specific Safe Working Loads (SWL) clearly marked on the block. Manufactured to rigorous standards (から 15401/15402, fem, ASME B30.10, ISO).

• 堅牢な構造: Forged hooks, hardened sheaves, heavy-duty housing, and premium bearings ensure durability and long service life in harsh industrial settings.

• Safety Critical: Integral safety latch, overload prevention (when part of a system), and strict adherence to design and manufacturing standards minimize accident risk.

• スムーズな操作: Precision bearings ensure low-friction rotation of sheaves and hooks, reducing wear on ropes and improving control.

• Reduced Rope Wear: Properly aligned, hardened sheaves with correct groove profiles minimize abrasion on the hoist rope, extending rope life.

• 汎用性: Available in countless configurations (SWL, number of sheaves, フックタイプ, reeving type) to suit virtually any overhead lifting application.

• Rotation Control: Swivel hooks prevent dangerous load spinning; fixed hooks offer precise positioning.

• メンテナンスの少ない設計: Sealed or greasable bearings and robust construction minimize downtime.

Overhead Crane Hook Block Assembly Typical Applications

• 1. 製造工場 (自動車, 鋼鉄, 機械)

• 2. 倉庫 & 配送センター

• 3. 鋳物工場 & Forging Shops

• 4. 発電所 & Utilities

• 5. 造船所 & Dry Docks

• 6. 建設現場 (with gantry cranes)

• 7. マイニング & Bulk Material Handling

• 8. Scrapyards & Recycling Facilities

The Overhead Crane Hook Block Assembly is far more than just a hook; it’s a sophisticated, safety-critical engineered system. Selecting the correct type, サイズ, and configuration, manufactured to the highest standards and rigorously maintained, is paramount for safe, 信頼性のある, and efficient overhead lifting operations. It is the indispensable workhorse interface that transforms crane power into controlled load movement. Always consult crane and block manufacturers for precise selection, インストール, 検査, and maintenance procedures.
