Overhead Travelling Crane

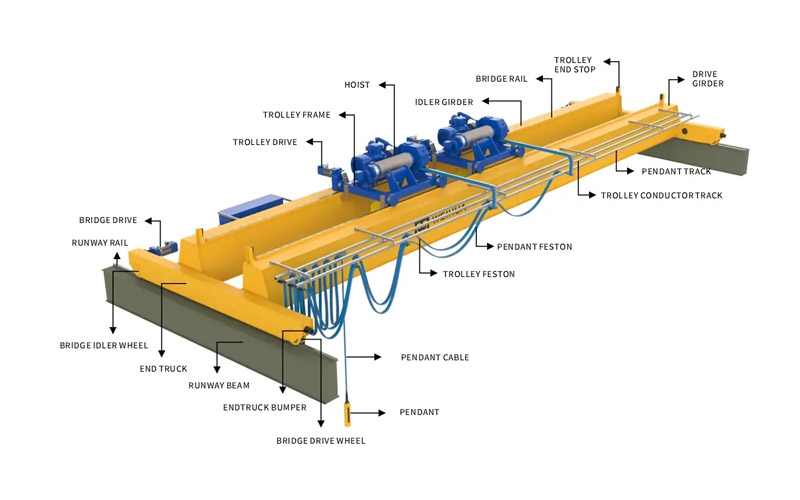

An overhead travelling crane, also known as an 橋式起重機 or bridge crane, is a vital material handling equipment widely used in industrial workshops, 倉庫, 工廠, 和建築工地. It consists of a bridge structure that travels along elevated rails, a trolley that moves horizontally along the bridge, and a hoist for lifting and lowering loads. This type of crane is designed to efficiently transport heavy or bulky items within a fixed working area, significantly improving operational efficiency and reducing manual labor intensity. With various configurations and customization options, overhead travelling cranes can meet the diverse needs of different industries and working conditions.

Main Types of Overhead Travelling Cranes

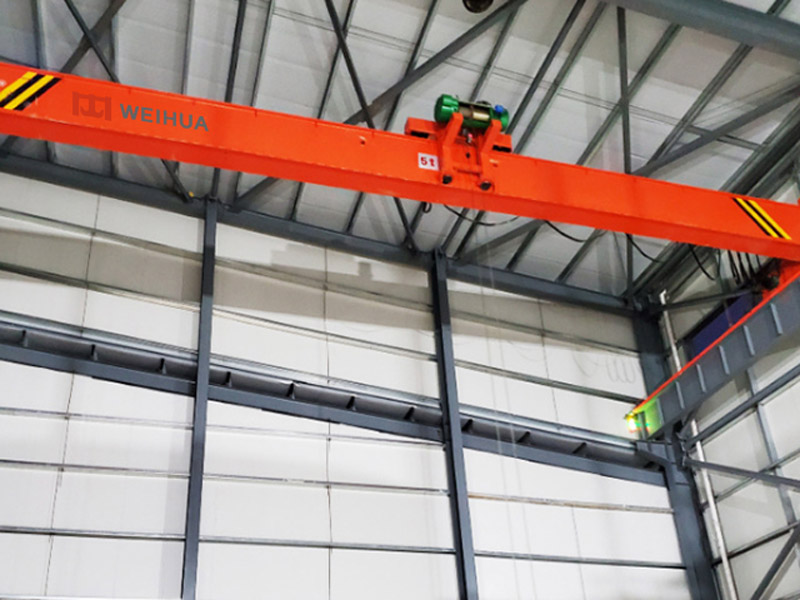

Single girder overhead travelling crane

This crane is characterized by a single main beam, offering a perfect balance of functionality and cost-efficiency. With lifting capacities typically from 1t to 20t, it’s lightweight and occupies less space, making it a top choice for small to medium-sized workshops, 倉庫, and assembly lines where load demands are moderate. Its simple structure ensures easy installation, 維護, and operation, often paired with an electric hoist for seamless load handling.

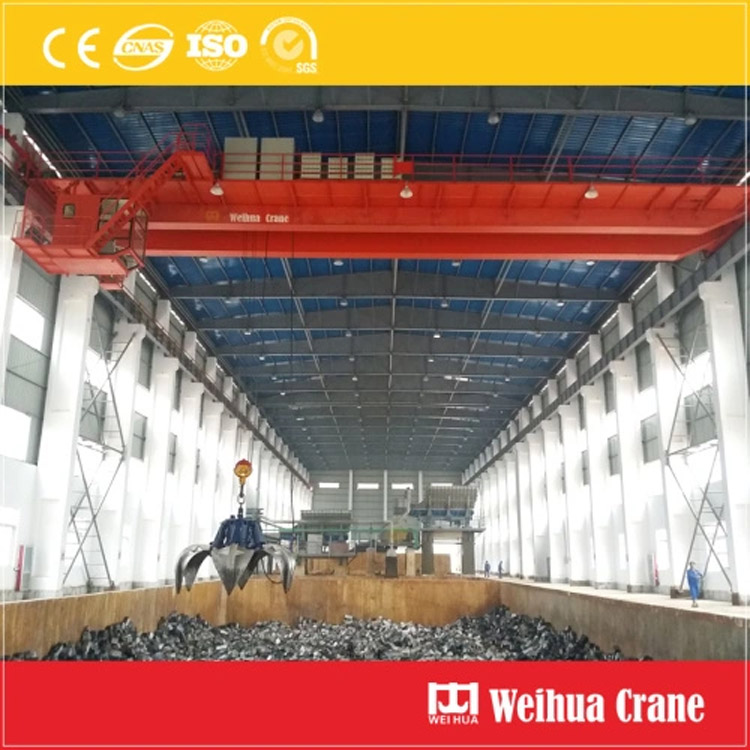

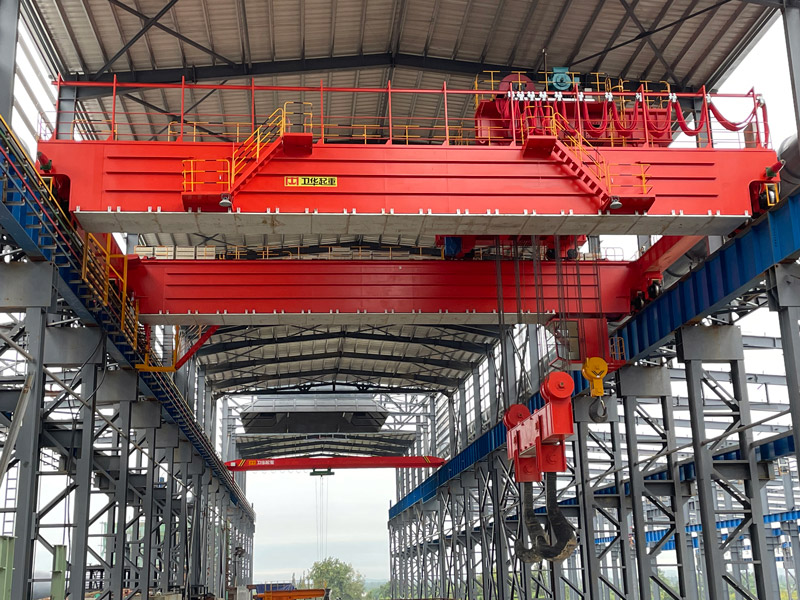

Double girder overhead travelling crane

Boasting two parallel main beams, this model delivers superior load-bearing capacity (5t to 500t+) 和穩定性. It’s designed for heavy-duty scenarios in large factories, 鋼廠, 和端口. The double girder configuration allows for larger working spans, higher lifting heights, and compatibility with diverse attachments like grab buckets and magnets, enabling it to handle steel plates, 線圈, and containers with ease.

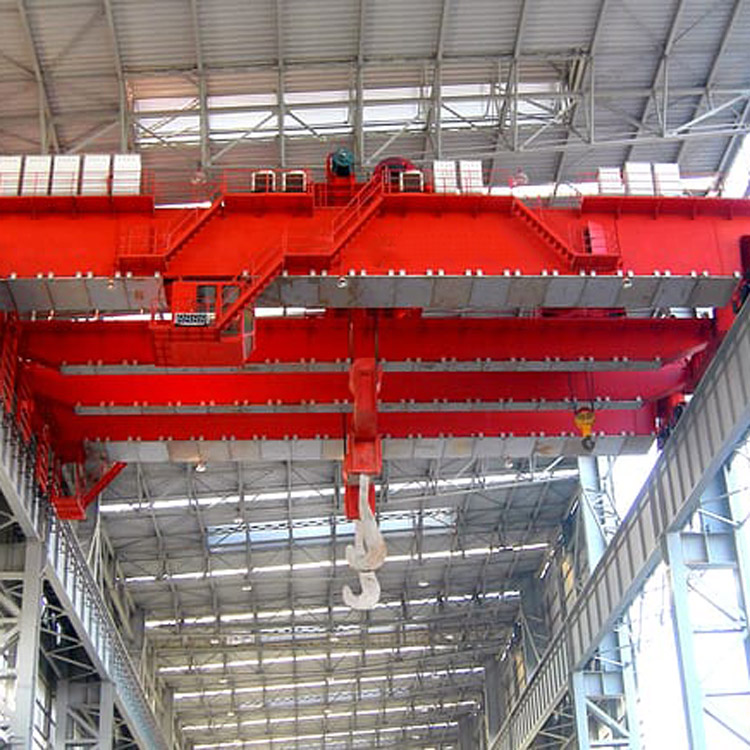

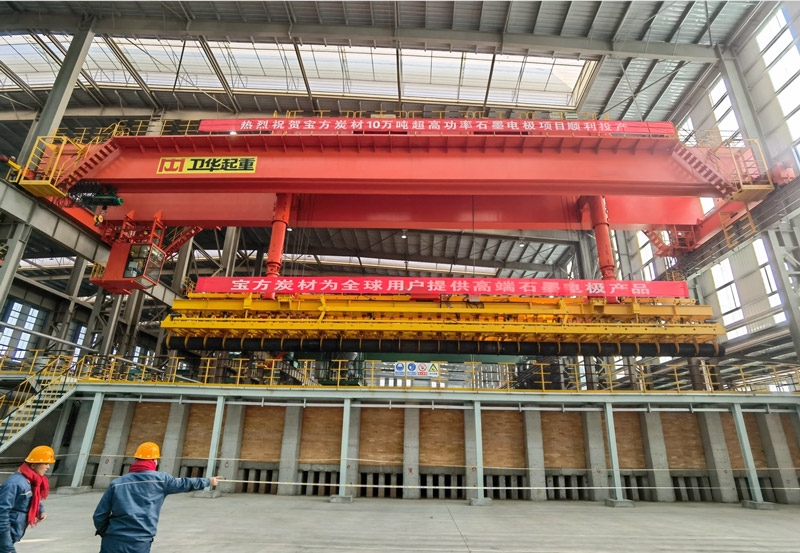

Heavy duty overhead travelling crane (50t-200t)

Heavy duty overhead travelling crane

Engineered for extreme load requirements, this crane is a workhorse in industries like steel manufacturing and heavy machinery. It features reinforced main beams, high-strength hoisting systems, and robust travel mechanisms to safely lift and transport 50t to 200t loads. Equipped with advanced safety features such as overload protection and emergency stop, it ensures reliable operation in demanding heavy-duty environments.

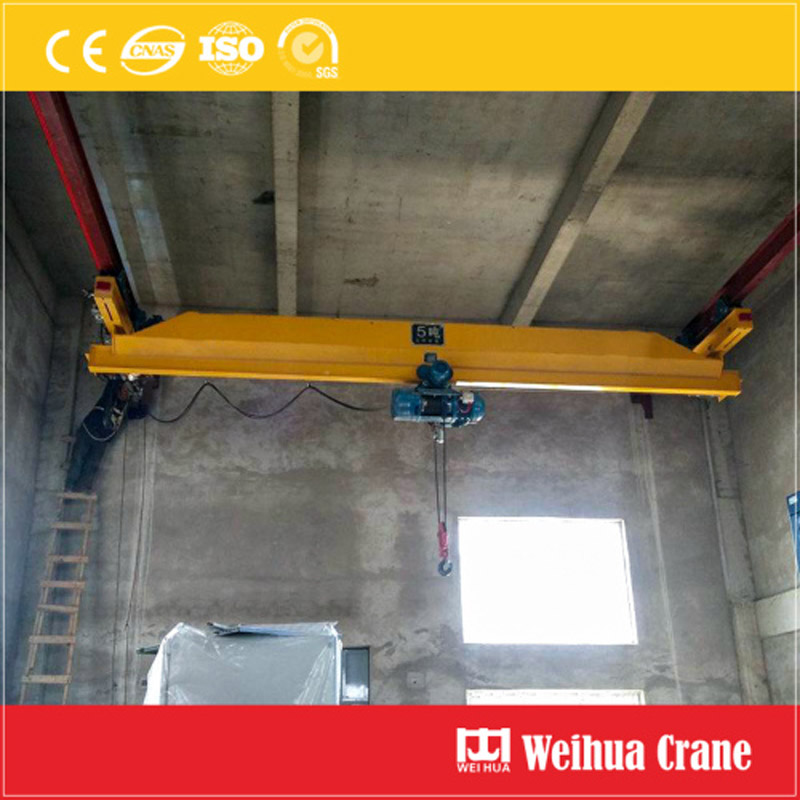

Light duty overhead travelling crane (1t-10t)

Light duty overhead travelling crane

Tailored for light-load applications, this crane is compact, energy-efficient, and easy to maneuver. Ideal for small workshops, electronic factories, 和倉庫, it handles loads from 1t to 10t. Its lightweight design minimizes stress on the building structure, while its simple control system allows for quick operation, making it suitable for frequent, low-weight material transfers.

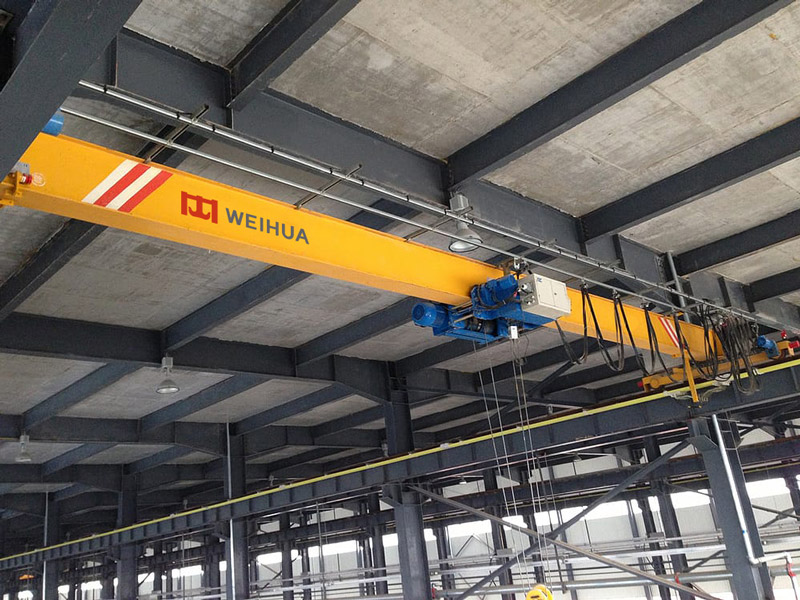

Explosion-proof overhead travelling crane for chemical industry

Specifically developed for hazardous chemical environments, this crane meets strict explosion-proof standards. It uses explosion-proof motors, electrical enclosures, and wiring to prevent sparks that could ignite flammable gases, vapors, or dust. With corrosion-resistant components, it safely handles chemical raw materials and finished products in chemical plants, oil refineries, and pharmaceutical facilities.

Foundry overhead travelling crane with heat-resistant hook

Designed to withstand high temperatures in foundries and steel mills, this crane is equipped with heat-resistant hooks, cables, and insulation materials. It can endure extreme heat from molten metal and hot castings, ensuring safe lifting and transport during smelting and casting processes. Its durable structure and heat-resistant features make it essential for high-temperature industrial settings.

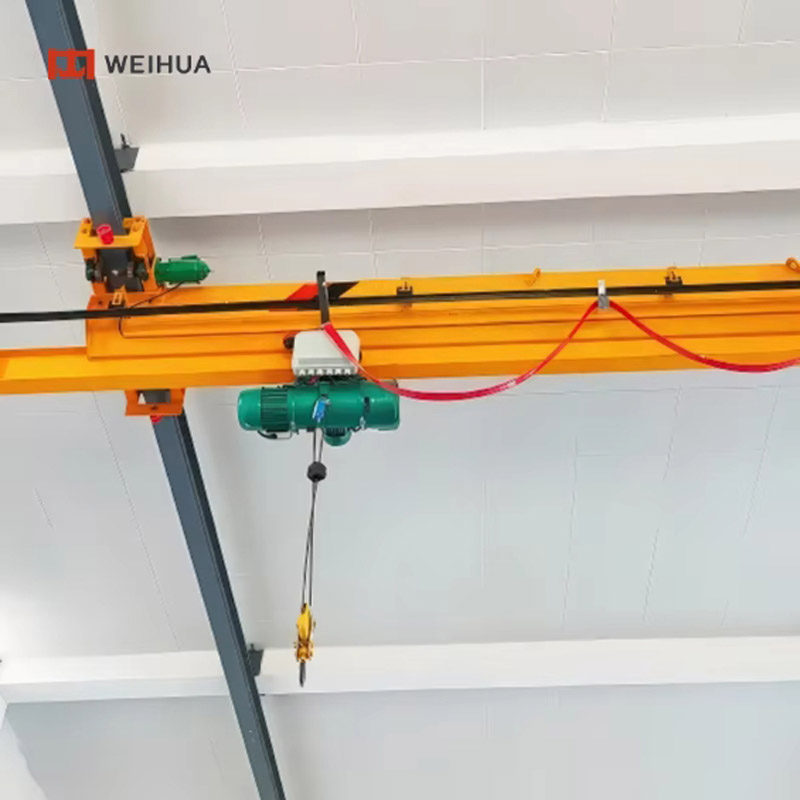

Overhead travelling crane with electric hoist

This integrated model combines an overhead travelling crane with a high-performance electric hoist, simplifying load handling. The electric hoist provides smooth and precise lifting/lowering operations, while the crane’s bridge and trolley enable horizontal movement. It’s widely used in various industries for general material handling, offering convenience, 效率, and reliability in both light and medium-duty applications.

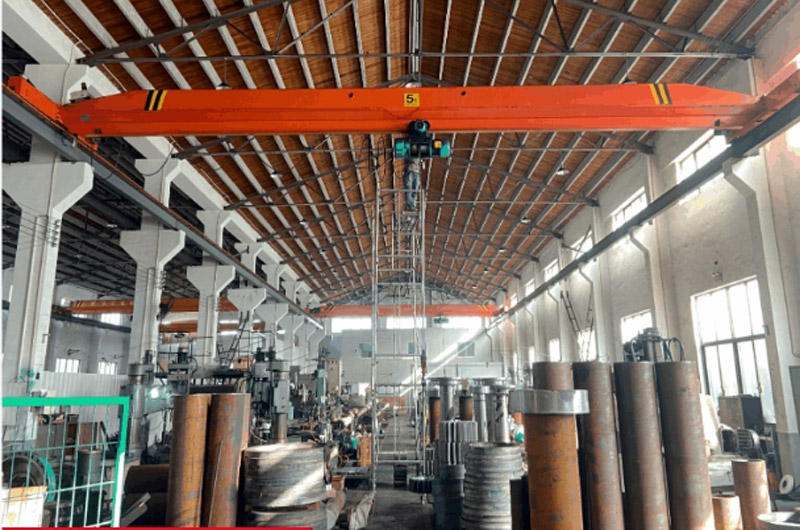

Customized overhead travelling crane for warehouse

Tailored to the unique layout and needs of warehouses, this crane can be customized in terms of span, 舉升高度, and control system. It optimizes warehouse space utilization, often featuring compact designs to navigate narrow aisles. Equipped with features like automatic positioning or remote control, it enhances efficiency in loading, 卸貨, and stacking goods in warehouse logistics operations.

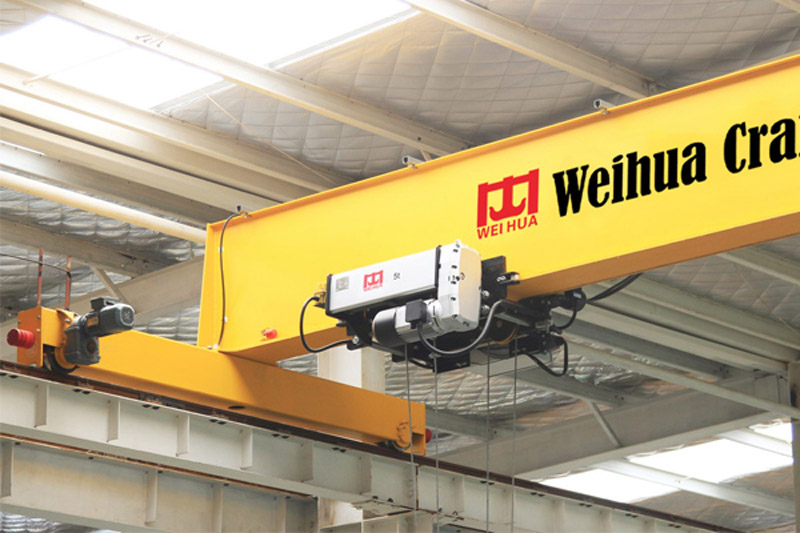

European standard overhead travelling crane

Adhering to strict European safety and quality standards, this crane emphasizes precision, 能源效率, and low noise. It uses high-quality components and advanced design concepts, ensuring smooth operation and long service life. With compact dimensions and optimized weight distribution, it’s suitable for modern factories and industrial facilities that require high standards of performance and safety.

Low headroom overhead travelling crane for limited space

Specifically designed for spaces with restricted vertical clearance, this crane has a compact trolley and optimized structure to maximize available headroom. It can operate in old workshops, buildings with low ceilings, or areas where vertical space is at a premium. Despite its low profile, it maintains reliable lifting capacity and performance, solving space constraints in various industrial settings.

Overhead Travelling Crane Key Features and Advantages

1. High Lifting Capacity: Overhead travelling cranes can handle loads of various weights, from light tons to hundreds of tons, meeting the needs of different industrial applications.
2. Large Working Range: The bridge travels along the length of the workshop, and the trolley moves along the width of the bridge, enabling the crane to cover a large rectangular working area, maximizing the utilization of the workspace.
3. Precise Control: Equipped with advanced control systems, such as frequency conversion speed regulation, the crane can achieve smooth lifting, 降低, and movement, ensuring precise positioning of loads, which is crucial for assembly, processing, and other precision operations.
4. 運營效率高: Compared to manual material handling or other lifting equipment, overhead travelling cranes can transport loads quickly and efficiently, reducing the time required for material transfer and improving overall production efficiency.
5. Durable and Reliable: Made of high-quality steel and components, overhead travelling cranes have a strong structure and long service life. They undergo strict quality control and testing during production to ensure reliable performance even in harsh working environments.
6. 可定制: According to the specific requirements of customers, such as lifting capacity, working span, 舉升高度, and working environment, overhead travelling cranes can be customized with different configurations, accessories, 和控制系統.

overhead travelling crane

Overhead Travelling Crane Technical Parameter Table

參數類別	規格範圍	描述
提升能力	1t – 500t+	Varies by model; light duty (1t-10t), medium duty (10t-50t), heavy duty (50t-500t+)
Working Span	5m – 30m+	Distance between crane rails; customizable based on workshop/warehouse dimensions
提升高度	3m – 30m+	Vertical distance from hook to ground; adjustable according to working requirements
行駛速度	Bridge: 10米/分鐘 – 40m/分鐘; 手推車: 5米/分鐘 – 20m/分鐘	Frequency conversion speed regulation available for smooth operation
起升速度	0.5m/min – 15m/min	Dual-speed or variable-speed options for precise load handling
電源	380伏/50赫茲 (針對不同地區可定制)	Three-phase AC power; explosion-proof electrical system for hazardous environments
控制模式	吊墜控制, 遙控, cabin control	Select based on operation convenience and working environment
安全裝置	Overload limiter, 緊急停止, limit switch, anti-collision device	Ensures safe operation and prevents accidents

Overhead Travelling Crane Applications

Overhead travelling cranes are widely used in various industries, 包括:

1. 製造業: Used in automobile factories, machinery manufacturing plants, and electronic factories for lifting and transporting raw materials, 半成品, and finished products during the production process.
2. 鋼鐵行業: Applied in steel mills for handling steel ingots, steel plates, 線圈, and other steel products, as well as in the smelting and casting processes.
3. Logistics and Warehousing: Used in warehouses, freight yards, and ports for loading, 卸貨, and stacking goods, improving the efficiency of logistics operations.
4. 建築業: Utilized in construction sites for lifting construction materials, such as steel bars, concrete, 和設備, to high-rise buildings or other construction positions.
5. 化工: Employed in chemical plants for handling chemical raw materials, 製成品, and equipment in explosion-proof or corrosion-resistant environments.
6. Mining Industry: Used in mines for lifting and transporting ores, 煤炭, and mining equipment in the mining and processing processes.

結論

As a core material handling equipment, the overhead travelling crane plays an indispensable role in modern industrial production and logistics operations. With a wide range of types, including single girder, 雙樑, and specialized models, and a host of advantages such as high lifting capacity, large working range, precise control, and customization, it can adapt to the diverse needs of different industries. Whether in light duty workshops or heavy duty industrial sites, the overhead travelling crane is a reliable and efficient solution for improving productivity and reducing operational costs.
