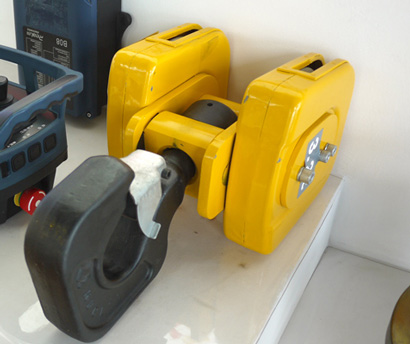

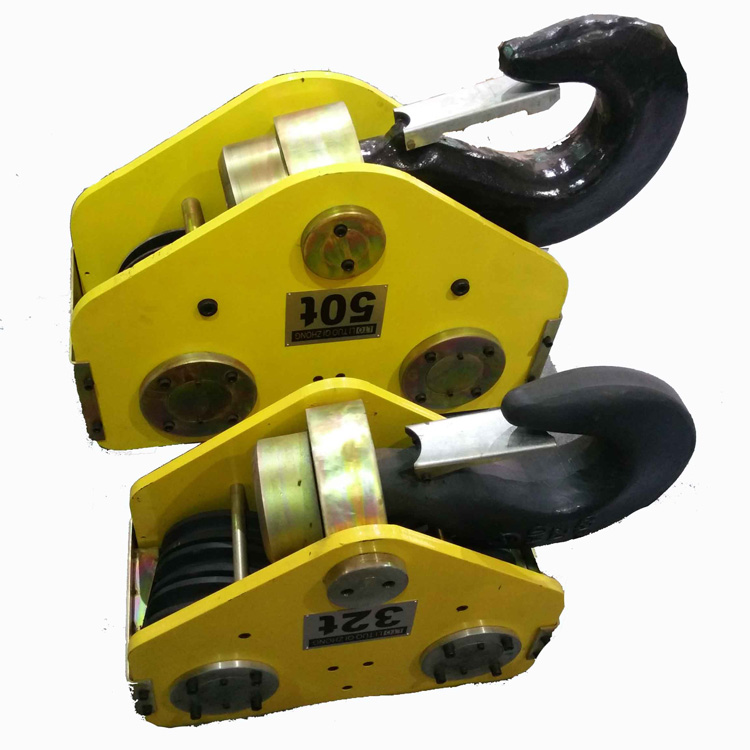

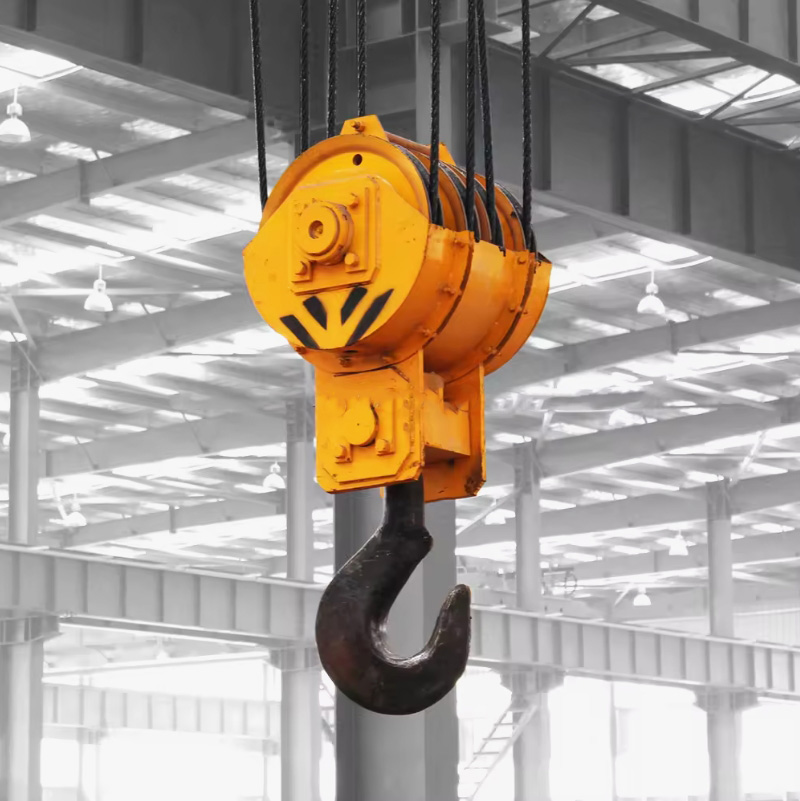

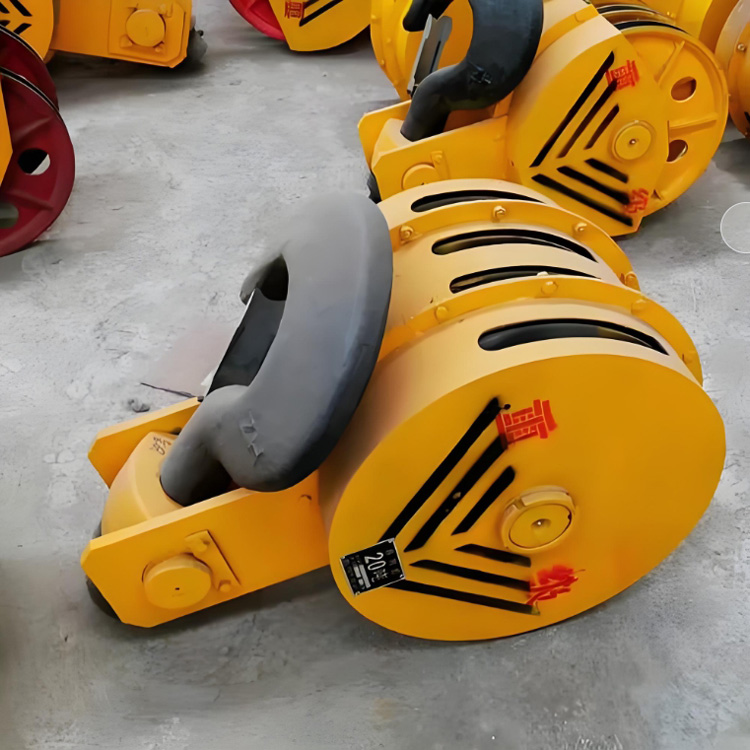

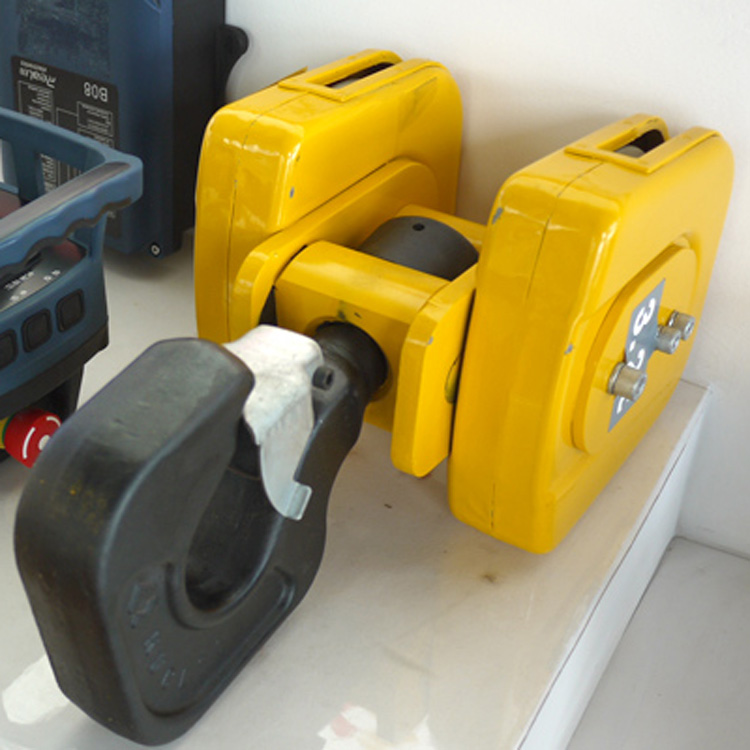

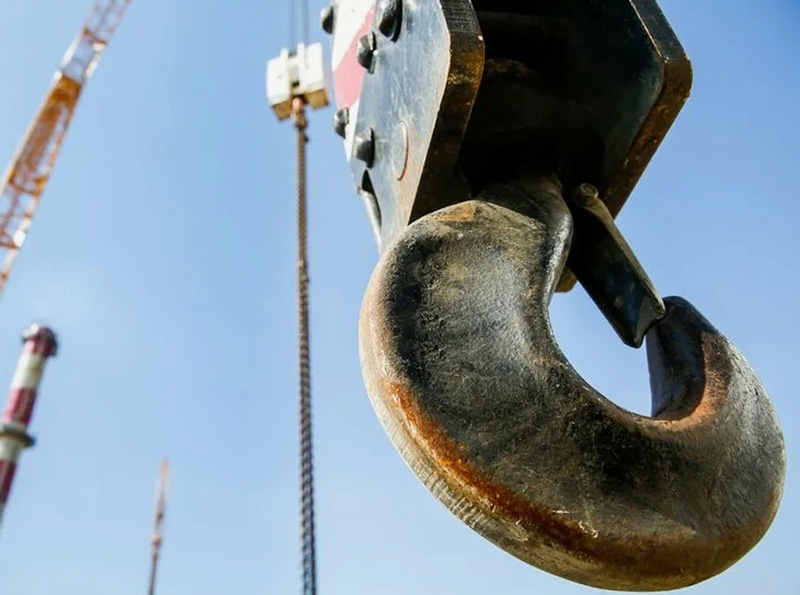

Lifting Crane Hook

The lifting crane hook is the core load-bearing component of the crane system and is directly related to the safety and efficiency of hoisting operations. This series of lifting crane hooks adopt high-strength materials and intelligent design, and are suitable for heavy equipment hoisting, material handling and precision installation operations in construction, Cổng, energy, manufacturing and other fields. The products have passed strict quality certification and take high safety factor, long life cycle and intelligent protection functions as core competitiveness to help customers achieve safe and efficient lifting goals.

lifting crane hook

Core design features of lifting crane hook

High-strength materials and craftsmanship

• Vật liệu: The main body of the lifting crane hook is forged from 42CrMo/34CrNiMo6 alloy steel. After quenching + tempering heat treatment process, the tensile strength is ≥1000MPa, the hardness reaches HRC 45-50, and it is impact-resistant and deformation-resistant.
• Anti-corrosion treatment: The surface is hot-dip galvanized or Dacromet coated, with salt spray corrosion resistance time of ≥1000 hours, suitable for high-humidity and high-salt environments such as ports and seas.

Intelligent security protection system

• Overload monitoring (không bắt buộc): Built-in wireless sensor monitors the Móc cần cẩu load in real time. When overloaded, it automatically triggers an audible and visual alarm and uploads data to the control terminal.
• Anti-decoupling double insurance: Equipped with spring lock tongue + mechanical buckle double locking device, complying with ISO 2415 and ASME B30.10 safety standards.

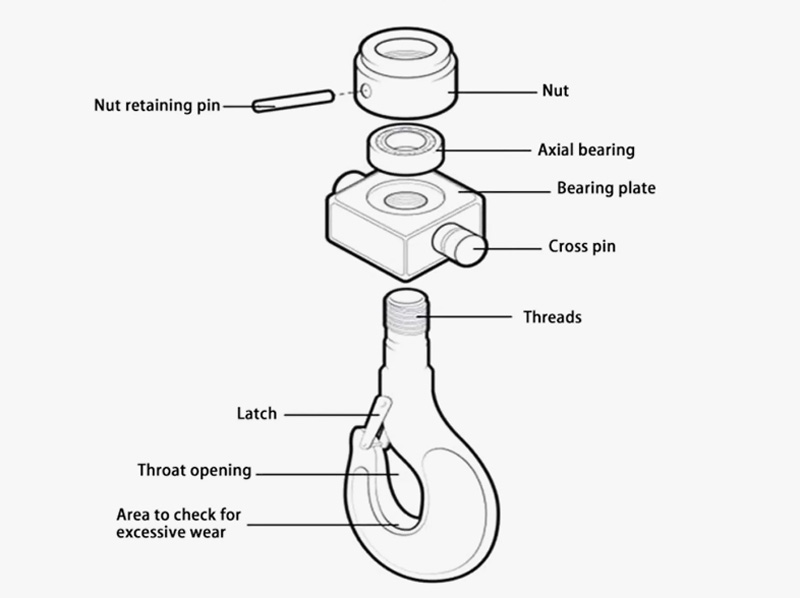

• 360° rotating bearing: The lifting crane hook adopts a sealed roller bearing, which supports the free rotation of the hook, reduces the risk of wire rope entanglement, and extends the life of the rope.

Modularity and ease of maintenance

• Quick-release structure: The lifting crane hook and boom are connected using a standardized pin interface, which supports quick replacement and reduces equipment downtime.
• Wear visualization: Laser markings are set on key parts such as hook tips and bearings to facilitate regular detection of wear and achieve preventive maintenance.

lifting crane hook

Basic parameters of lifting crane hook

Mục tham số	Parameter description	Typical value
Tải định mức	Maximum safe working load (SWL) allowed by hook design	1 tấn, 5 tấn, 10 tấn, 20 tấn, 50 tấn, 100 tấn (support non-standard customization to more than 500 tấn)
Yếu tố an toàn	The ratio of minimum breaking load to rated load (industry standard ≥4:1)	4:1 (standard type), 5:1 (heavy-duty type), 6:1 (special equipment)
Materials and craftsmanship	Lifting crane hook main body material and processing technology	42CrMo alloy steel forging + quenching and tempering heat treatment (hardness HRC 45-50, tensile strength ≥1000MPa)
Xử lý bề mặt	Anti-corrosion coating process	Hot-dip galvanizing (salt spray resistance ≥1000 hours), Dacromet coating (corrosion resistance increased by 3 times)
Đường kính dây dây áp dụng	Matching wire rope size range	10-18mm (5-ton level), 26-34mm (20-ton level), 40-52mm (50-ton level)
Chức năng xoay	Hook rotation angle and bearing type	360° continuous rotation, sealed roller bearings (IP67 protection, maintenance-free)
Nhiệt độ làm việc	Applicable ambient temperature range	-40℃ to +120℃ (ultra-low temperature/high temperature models can be customized)
Lòng tự trọng	Hook body weight (affects crane counterweight efficiency)	25kg (5-ton level), 140kg (20-ton level), 950kg (100-ton level)
Tiêu chuẩn chứng nhận	Compliance with international/national industry standards	ISO 4309, ASME B30.10, TRONG 13889, Gb/t 10051.1, CE, DNV (for maritime use only)

Note:

• Yếu tố an toàn: defined as the ratio of the minimum breaking strength to the rated load to ensure safety under extreme working conditions.
• Rotating bearing: fully enclosed design, IP67 protection grade, dustproof and waterproof, lubrication-free maintenance.
• Extended functions: Optional load recorder, remote monitoring module or anti-collision sensor.

lifting crane hook

Quality assurance and after-sales service

• Strict testing: Each lifting crane hook has passed 100% magnetic particle inspection (crack detection) and static load/dynamic load test.
• Warranty commitment: Provide 2-year free warranty and lifetime maintenance support.
• Global service: 48-hour emergency response, providing on-site maintenance, spare parts replacement and technical training.
• Dịch vụ tùy chỉnh: Support non-standard designs (such as explosion-proof and ultra-low temperature hooks) to meet the needs of special working conditions.

Lifting crane hook selection suggestions

• Normal working conditions: Choose standard safety factor (4:1) galvanized hooks, such as construction sites and logistics warehouses.
• Extreme environment: Priority is given to high anti-corrosion coatings or ultra-low temperature materials, such as offshore operations and polar scientific expeditions.
• High frequency and heavy load: need to match high safety factor (≥5:1) + intelligent monitoring module, such as steel plants and heavy manufacturing.
