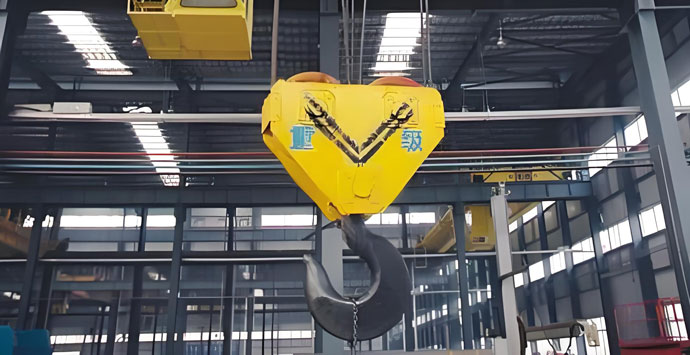

Cần cẩu công suất cao 50 tấn

Các tính năng chính & Thông số kỹ thuật

• 1. Sức mạnh đặc biệt & Độ bền:

  • Vật liệu: Forged from high-tensile, low-alloy steel (e.g., Grade A, or equivalent per DIN/ISO/FEM standards).

  • Manufacturing: Precision forged under controlled conditions for superior grain structure and fatigue resistance.

  • Design: Optimized profile for optimal load distribution and stress reduction, minimizing risk of deformation.

• 2. Enhanced Safety Systems:

  • Integrated Safety Latch: Heavy-duty, spring-loaded safety latch securely retains slings, chains, or shackles, preventing accidental disengagement (Standard feature, optional types available).

  • Smooth Surfaces: Machined bearing surfaces and throat area minimize wear on slings and rigging.

  • Throat Opening: Generously sized to accommodate large shackles and multiple sling legs.

• 3. Rigorous Quality Assurance:

  • Proof Load Testing: Each individual high capacity crane hook 50 tấn undergoes mandatory proof load testing significantly above its SWL (typically 125-200% of SWL) to verify structural integrity.

  • Non-Destructive Testing (NDT): Subjected to Magnetic Particle Inspection (MPI) or Ultrasonic Testing (UT) to detect any subsurface flaws or defects.

  • Chứng nhận: Compliant with international standards including FEM 1.001, DIN 15400/15401, ISO 7597, ASME B30.10, and carries relevant certifications (e.g., CE, GOST).

• 4. Precision Engineering:

  • Shank: Precision-machined shank ensures smooth rotation and optimal bearing contact within the crane hook and block.

  • Latch Mechanism: Robust latch design ensures positive engagement and reliable operation even in harsh conditions.

  • Finish: Protective coating (e.g., galvanized, painted) applied to resist corrosion and extend service life.

• 5. Versatility & Compatibility:

  • Designed for seamless integration with Weihua crane blocks and trolleys rated for 50-ton SWL.

  • Compatible with various rigging configurations (slings, chains, spreader beams).

Móc cần cẩu 50 Ton Technical Specifications

Feature	Đặc điểm kỹ thuật	Standard/Note
Safe Working Load (SWL)	50 Metric Tons (50,000 kg)	Primary Rating
Proof Load	Typically 62.5 – 100 Tons	Mandatory per hook
Vật liệu	High-Tensile Forged Steel	e.g., Grade A, 34CrMo4, vân vân.
Design Standard	Nữ 1.001, DIN 15400/15401, ISO 7597, ASME B30.10	Compliant
Latch an toàn	Spring-Loaded, Heavy-Duty	Standard
Testing	Proof Load Tested, NDT (MPI/UT)	On every hook
Bảo vệ ăn mòn	Galvanized or Painted	Optional specifications available
Rotation	Swivel Type Standard	Ensures load stability

Where is the Weihua 50 Ton Crane Hook Essential?

This high capacity crane hook 50 tấn is the workhorse for industries where lifting massive weights is routine:

• 1. Heavy Fabrication & Steel Mills: Handling large steel plates, coils, castings, and machinery.

• 2. Shipbuilding & Repair: Lifting ship sections, engines, and heavy components.

• 3. Ports & Terminals: Moving heavy containers, project cargo, and large machinery on/off vessels.

• 4. Power Generation: Installing and maintaining turbines, generators, and transformers.

• 5. Mining & Heavy Equipment: Relocating large mining machinery, crushers, and excavators.

• 6. Large-Scale Construction: Positioning pre-cast concrete elements, bridge segments, and heavy plant equipment.

• 7. Aerospace: Handling large aircraft components and assemblies.

The Weihua Cần cẩu công suất cao 50 tấn represents the pinnacle of strength, safety, and reliability for lifting critical heavy loads. Its robust forged construction, rigorous testing protocols, and adherence to international standards make it the trusted choice for industries where safety and performance under maximum load are non-negotiable. Equip your heavy-lifting cranes with the Weihua 50-ton hook for unparalleled confidence and productivity.

Ready to Specify or Learn More? Contact Weihua or your authorized distributor today to discuss your specific 50 ton lifting requirements and explore the full range of high-capacity crane solutions. Ensure your next heavy lift is anchored by the best.
