Yüksek Performanslı Vinç Halatı

İçindekiler Göstermek

Malzeme taşımanın zorlu dünyasında, yapı, ve ağır kaldırma, every component must perform with unwavering reliability. At the heart of these critical operations is the Crane Wire Rope—a product engineered not just to lift, but to endure, to secure, and to empower.

Our crane wire ropes are the culmination of advanced metallurgy, precision manufacturing, and rigorous testing. They are designed to be the strongest, most durable, and safest link in your lifting system, ensuring peak performance in the most challenging environments.

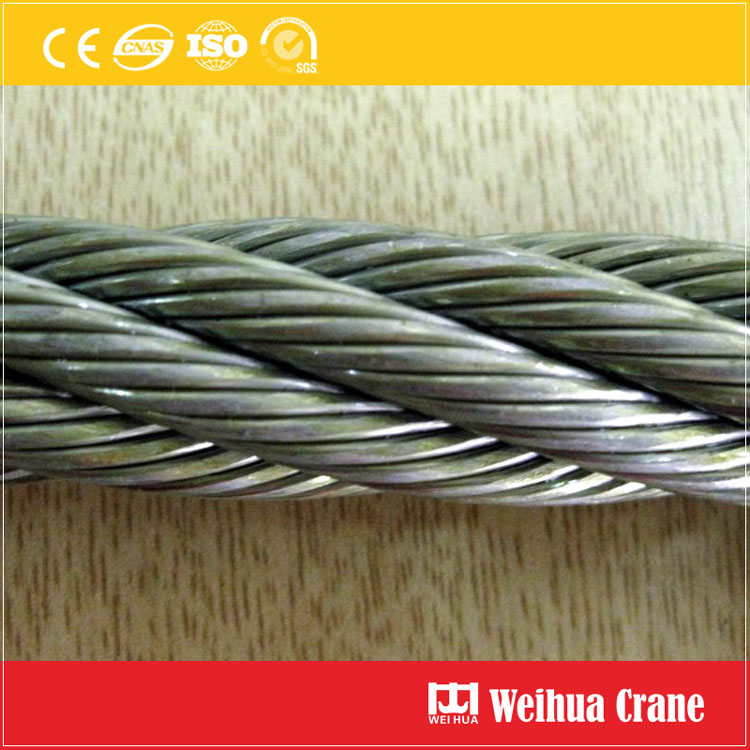

Vinç Halatı

Why Our Crane Wire Rope is Your Superior Choice

1. Uzlaşmaz güç & Dayanıklılık:
Constructed from high-carbon steel with various grades (Örn., IPS, EIP, EEIP), our ropes offer exceptional tensile strength. This means a higher safety factor, greater resistance to breaking, and the ability to handle your maximum workload with confidence.
2. Enhanced Fatigue Resistance:
The constant bending over sheaves and drums is a primary cause of wire rope failure. Our ropes are engineered with optimal core construction and precise strand patterning to withstand millions of bending cycles, significantly extending service life and reducing downtime.
3. Superior Abrasion Resistance:
We offer a range of surface treatments, including Bright (Uncoated), Galvanizli, and Stainless Steel, to combat wear and corrosion. For the toughest conditions, our Wire Rope with Plastic-Impregnated (PVC or Nylon) Coating provides an extra layer of protection against abrasion, nem, and chemical exposure.
4. Exceptional Crush Resistance:
A robust core—whether Independent Wire Rope Core (IWRC) or Fiber Core (FC)—is vital. Our IWRC construction provides superior support against high loads and crushing forces on drums, while our FC offers excellent flexibility and cushioning.
5. Customized for Your Application:
No two lifts are the same. We provide a variety of constructions (Örn., 6×19, 6×36, 6x25FW, 8×19) to match your specific needs:
- 6×19 Class: A versatile workhorse for general crane service, hoisting, and dragging.
- 6×36 Class: Offers more wires for greater flexibility, ideal for applications requiring frequent spooling.
- Rotation-Resistant: Multi-layer construction designed to prevent spinning under load, essential for single-line, free-hanging lifts.

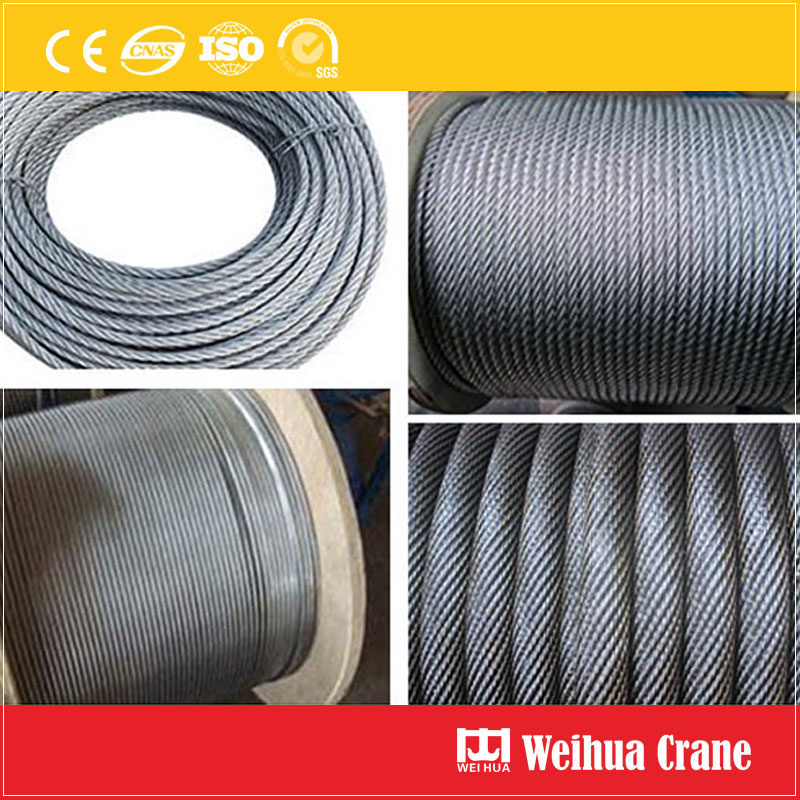

Vinç Halatı

Teknik Özellikler & Özellikler

Grades	IPS (1770 N/mm²), EIP (1960 N/mm²), EEIP (2160 N/mm²)
Cores	Independent Wire Rope Core (IWRC), Fiber Core (FC), Synthetic Core (SC)
Constructions	6x19S, 6x25FW, 6x36WS, 6x41WS, 8x19S, and Rotation-Resistant types.
Coatings	Bright (uncoated), Galvanizli (Zinc-Coated), PVC/Nylon Coated, Paslanmaz çelik.
Yağlama	Impregnated with a high-performance lubricant during manufacturing to reduce internal friction and prevent corrosion.

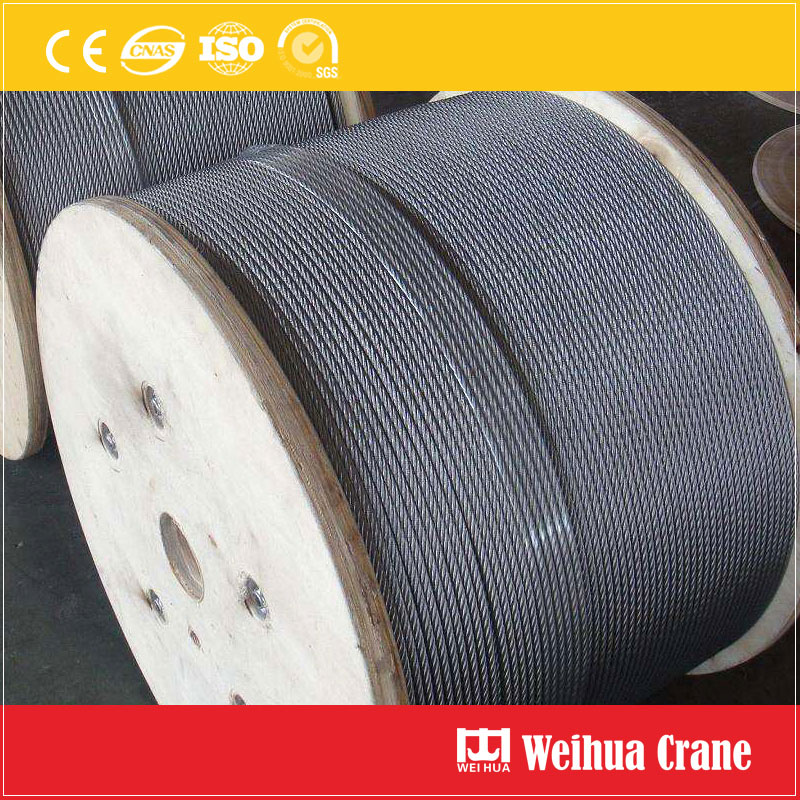

Vinç Halatı

Applications Across Industries

Our crane wire ropes are trusted in a multitude of sectors:

1. Mobil Vinçler & Kule Vinçler
2. Gezer Köprülü Vinçler and Gantries
3. Shipbuilding and Offshore Platforms
4. Mining and Quarrying
5. İnşaat ve Altyapı Projeleri

başvuru

Vinçteki tel halat ne zaman değiştirilmeli??

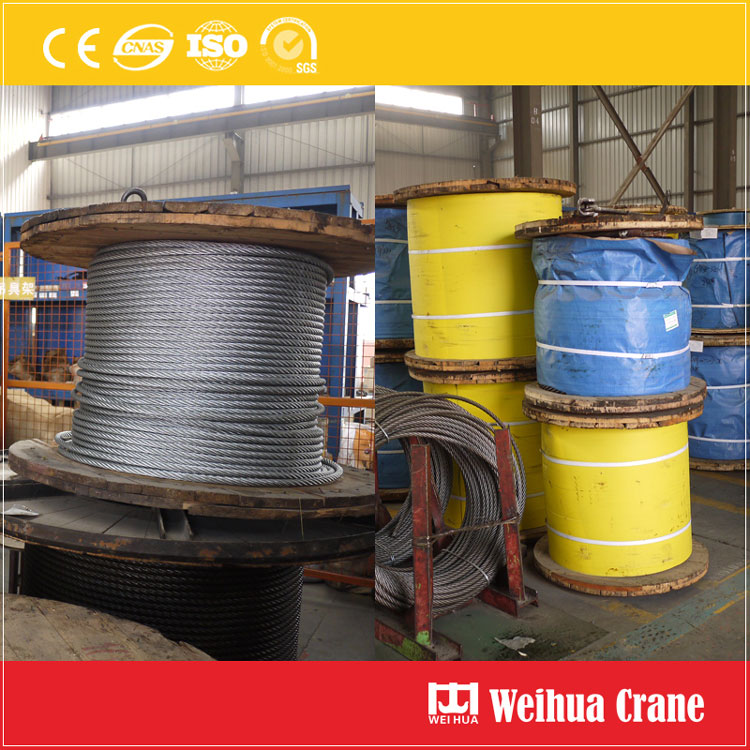

Vinç Halatı

The overarching principle from safety standards like OSHA and ASME B30.2 is: A wire rope must be removed from service when there is evidence of distortion, aşırı aşınma, korozyon, or damage that could result in a measurable loss of strength or functional integrity.

In practice, this is determined by regular, documented inspections. There are two main categories of inspection:

1. İlk Muayene: Before each shift or use (visual check by the operator).
2. Periyodik Muayene: Formal, documented inspections by a qualified person at frequencies based on crane use (Örn., aylık, üç ayda bir).

Sipariş verin ve imzalayın

Müşteriler fabrikayı ziyaret ediyor

Vinç taşımacılığı

Choosing the right wire rope is critical. Our technical team is ready to assist you in selecting the perfect rope for your crane’s load capacity, duty cycle, ve çevre koşulları.

Contact us today for a consultation and quote.
