What is an Overhead Bridge Crane?

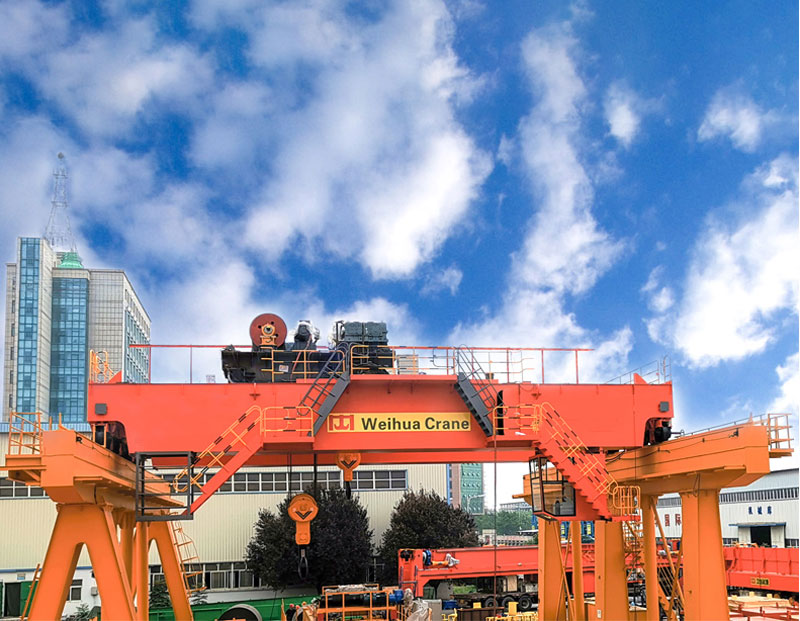

Overhead Bridge Crane

An overhead bridge crane is a heavy-duty material handling equipment designed to lift, преместити, and position large or heavy loads horizontally across a fixed span. Suspended from or mounted on elevated runways (typically along the length of a facility), it consists of a bridge structure that travels along these runways, with a hoist or trolley system that moves perpendicular to the bridge—enabling precise, multi-directional load movement.

Widely used in industrial settings, overhead bridge cranes streamline operations, reduce manual labor, and enhance safety when handling weights from a few tons to hundreds of tons. They are customizable to fit specific workspace dimensions, load requirements, и еколошки услови, making them indispensable in manufacturing, логистика, and heavy industries.

Key Features of Overhead Bridge Cranes

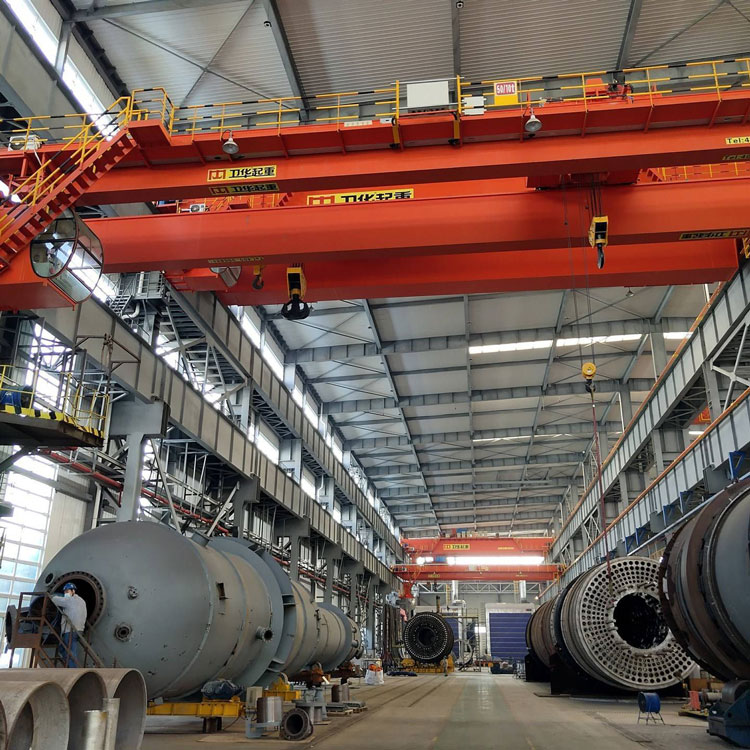

Overhead Bridge Crane

Overhead bridge cranes are engineered for reliability, ефикасност, и сигурност. Here are their core features:

1. High Load Capacity: Designed to handle loads ranging from 1 ton to over 500 тона, suitable for light to ultra-heavy lifting tasks.
2. Precise Control: Equipped with advanced hoist and trolley systems (manual, electric, or hydraulic) for smooth, accurate load positioning—critical for delicate operations like machinery assembly.
3. Durable Construction: Built with high-strength steel girders, reinforced runways, and corrosion-resistant components to withstand harsh environments (Нпр., high temperatures, dust, or humidity).
4. Усаглашавање на безбедности: Integrated safety features include overload protection, emergency stop buttons, limit switches, and anti-collision systems, meeting global standards (ОСХА, ИСО, Фем).
5. Space Efficiency: Operates above ground level, freeing up floor space for other equipment or workflows—ideal for facilities with limited ground area.
6. Customizability: Available in single or double girder designs, with options for span length, lifting height, power sources (electric, diesel), and automation (for unmanned operations).

Једноструки поклопац вс. Double Girder Overhead Bridge Cranes: What’s the Difference?

Single girder overhead bridge crane

Double girder overhead bridge crane

Double girder overhead crane

Choosing between single girder and double girder overhead bridge cranes depends on your load requirements, workspace, and budget. Here’s a breakdown:

Значајка	Single Girder Overhead Bridge Crane	Double Girder Overhead Bridge Crane
Structure	One main girder (beam) supporting the hoist/trolley.	Two parallel girders with the hoist/trolley running between them.
Носивост	До 20 тона (стандардни); 50 тона (heavy-duty models).	20 tons and above (commonly 50–500+ tons).
Дужина распона	Ideal for spans up to 30 метар.	Suitable for longer spans (до 50+ метар).
Висина подизања	Moderate (limited by single girder strength).	Higher lifting heights (extra clearance due to dual girders).
Cost	More affordable (simpler design, lower material use).	Higher initial cost (sturdier build, larger components).
Најбоље за	Light to medium loads; small to medium facilities (Нпр., workshops, Складишта).	Heavy loads, large spans, or harsh environments (Нпр., челични млинови, shipyards).

Technical Specifications of Overhead Bridge Cranes

Overhead Bridge Cranes

Below is a general parameter table for common overhead bridge crane models. Custom specifications are available based on your needs:

Model Type	Max Lifting Capacity	Дужина распона	Висина подизања	Радничка класа (ISO/FEM)*	Напајање	Hoist Speed
Single Girder (Стандардни)	1–20 tons	5–30 m	3–12 m	A3–A5	380V/3Ph/50Hz (custom)	0.5–10 m/min
Single Girder (Heavy-Duty)	20–50 tons	10–25 m	5–15 m	A5–A6	380V/3Ph/50Hz (custom)	0.3–8 m/min
Двоструки носач (Стандардни)	20–100 tons	10–40 m	6–20 m	A6–A7	380V/3Ph/50Hz (custom)	0.2–6 m/min
Двоструки носач (Ultra-Heavy)	100–500+ tons	15–50+ m	8–30 m	A7–A8	Обичај (diesel/electric)	0.1–4 m/min

Радничка класа: Indicates duty cycle (how often the crane operates under load). Higher classes (A7–A8) suit continuous, heavy-use environments.

Industries That Use Overhead Bridge Cranes

Overhead Bridge Cranes

Overhead bridge cranes are versatile across sectors requiring heavy material handling. Key applications include:

1. Производња: Moving raw materials (челик, aluminum) and finished products on assembly lines (automotive, aerospace, машинерије).
2. Складиштење & Логистика: Loading/unloading cargo, stacking pallets, and organizing inventory in distribution centers.
3. Metallurgy: Handling molten metal, инготи, and rolled steel in foundries and steel mills.
4. Изградња: Lifting building materials (steel beams, бетонске плоче) in prefabrication yards or on-site.
5. Рударство: Transporting ore, equipment, and components in mines or processing plants.
6. Shipbuilding: Assembling large ship parts and moving heavy machinery in dry docks.
7. Waste Management: Handling bulk waste or recycling materials in treatment facilities.

Overhead Bridge Crane Manufacturing Process

overhead bridge crane manufacturing process

How to Choose the Right Overhead Bridge Crane?

Overhead Bridge Cranes

Follow these steps to select the perfect overhead bridge crane for your needs:

1. Determine Load Requirements: Calculate the maximum weight you’ll lift (include margins for future needs) to choose between single (≤20 tons) or double (≥20 tons) girder models.
2. Measure Your Workspace: Check the span (distance between runways) and available headroom (lifting height) to ensure the crane fits.
3. Assess Working Conditions: Consider environmental factors—high temperatures, dust, or corrosive substances may require specialized coatings or components.
4. Evaluate Duty Cycle: Choose a working class (A3–A8) based on how often the crane will operate (Нпр., A7 for 24/7 heavy use).
5. Set a Budget: Single girder overhead cranes are more cost-effective for light tasks; double girder cranes are a long-term investment for heavy loads.
6. Prioritize Safety & Усаглашавање: Ensure the crane meets local regulations (Нпр., OSHA in the U.S., CE in the EU) and includes essential safety features.

ФАК: Overhead Bridge Crane

К1: How often should an overhead bridge crane be inspected?

А: Daily visual checks (for wear, leaks, or loose parts) and annual professional inspections are mandatory. Heavy-use cranes (A7–A8) may require quarterly inspections.

К2: Can overhead bridge cranes be automated?

А: Yes. Modern models can integrate with IoT systems for automated load tracking, scheduled movements, and remote operation—ideal for repetitive tasks.

К3: What’s the lifespan of an overhead bridge crane?

А: With proper maintenance, single girder cranes last 15–20 years; double girder cranes can operate for 25–30 years or longer.

К4: How is an overhead bridge crane installed?

А: Installation involves mounting runways to building columns or support structures, positioning the bridge, and integrating the hoist/trolley. Professional installation is recommended for safety.

Q5: What’s the difference between an overhead bridge crane and a gantry crane?

А: Overhead bridge cranes run on elevated runways (attached to a building), while gantry cranes have ground-supported legs—making gantries better for outdoor or open spaces.

Ready to enhance your material handling efficiency? Contact us for a custom overhead bridge crane solution tailored to your industry and workflow.
