Double Girder Overhead Crane

Introduction to Double Girder Overhead Cranes

A double girder overhead crane is a robust material handling equipment designed to lift and transport heavy loads in industrial settings. Engineered with two parallel main girders, it delivers superior stability and load-bearing capacity compared to single girder models, making it the go-to choice for heavy-duty applications such as steel mills, manufacturing plants, Складишта, и градилишта. Whether you need to move machinery, raw materials, or finished products, our double girder overhead cranes combine precision, издржљивост, and safety to optimize your workflow.

What is a Double Girder Overhead Crane?

A double girder overhead crane is a type of bridge crane consisting of two horizontal main girders supported by end trucks (or end carriages) that run along elevated rails (runways) mounted on building columns or standalone structures. The crane’s lifting mechanism—typically a hoist or trolley—is mounted on a trolley that travels along the length of the main girders, allowing 360° coverage of the workspace below.

Unlike single girder overhead cranes, which rely on a single main beam, double girder designs distribute weight more evenly, enabling them to handle much heavier loads (often up to 500 tons or more). This makes them essential for industries requiring frequent heavy lifting, where reliability and safety are non-negotiable.

Key Features of Double Girder Overhead Cranes

Our double girder overhead cranes are built to excel in demanding environments. Here are their standout features:

• 1. Висок капацитет оптерећења: Designed to handle heavy loads from 10 tons up to 500 тона, making them ideal for heavy-industry applications.
• 2. Superior Stability: Two main girders distribute weight evenly, reducing sway and ensuring stable operation even with maximum loads.
• 3. Extended Span Options: Available with spans from 10 meters to 35 метар, adaptable to large workspaces like warehouses or factory floors.
• 4. Precision Control: Equipped with advanced hoisting and trolley mechanisms for smooth, accurate positioning of loads—critical for delicate or high-value materials.
• 5. Durable Construction: Made from high-strength steel with anti-corrosion coatings, ensuring long-term performance in harsh conditions (Нпр., high temperatures, dust, or moisture).
• 6. Појачана сигурност: Integrated safety features include overload protection, дугмад за хитно заустављање, limit switches, and anti-collision devices to prevent accidents.
• 7. Customizable Design: Can be tailored with optional extras like remote control, frequency inverters for variable speed, or specialized hooks for unique load types (Нпр., калемови, контејнери).

Техничке спецификације

Structure of a Double Girder Overhead Crane

A double girder overhead crane consists of several key components working together to ensure efficient lifting and movement:

1. Main Girders

Main Girders

Two parallel steel beams (girders) that form the bridge structure. They bear the load of the trolley and the lifted material, requiring high strength and rigidity.

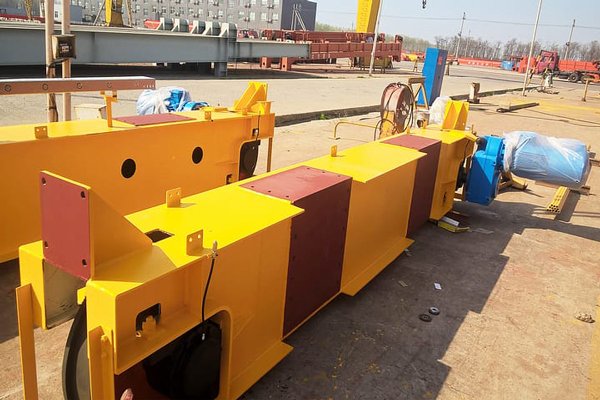

2. Енд Труцкс (End Carriages)

Енд Труцкс

Mounted at both ends of the main girders, these house the wheels and motors that drive the crane along the runway rails.

3. Колица

Колица

A movable unit that travels along the top or bottom of the main girders. It carries the hoist and is powered by its own motor for horizontal movement.

4. Hoist

Hoist

The lifting mechanism, including a crane drum, wire rope/cable, и кука за кран. It is responsible for raising and lowering loads, with options for electric or hydraulic operation.

5. Елецтрицал Систем

Елецтрицал Систем

Includes motors, контролне табле, switches, and wiring to power and operate the crane, колица, and hoist.

6. Safety Devices

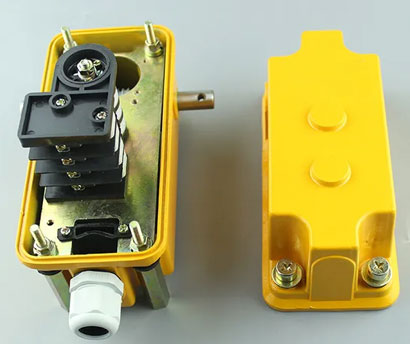

Лимитер висине подизања

Overload limiters, travel limit switches, emergency stop systems, and anti-sway devices to ensure safe operation.

ФАК: Double Girder Overhead Crane

К1: What’s the difference between a double girder and single girder overhead crane?

А: Double girder cranes have two main girders, offering higher load capacity (10+ тона) and stability, making them suitable for heavy-duty use. Single girder cranes have one main girder, are lighter, and better for lighter loads (до 10 тона) in smaller workspaces.

К2: Which industries use double girder overhead cranes?

А: They are widely used in steel mills, automotive manufacturing, бродоградилишта, градилишта, Складишта (for heavy pallet handling), and power plants.

К3: How often should a double girder overhead crane be maintained?

А: Routine inspections (daily checks for wear, lubrication) and professional maintenance (every 6–12 months) are recommended to ensure safety and longevity.

К4: Can double girder cranes be customized for specific applications?

А: Да. We offer customizations for load capacity, укрстити, висина подизања, control systems, and specialized attachments (Нпр., magnets for metal handling, grabs for bulk materials).

К5: Are double girder overhead cranes compliant with international safety standards?

А: Our cranes meet ISO, Фем, and OSHA standards, with built-in safety features to ensure compliance with global industrial regulations.
