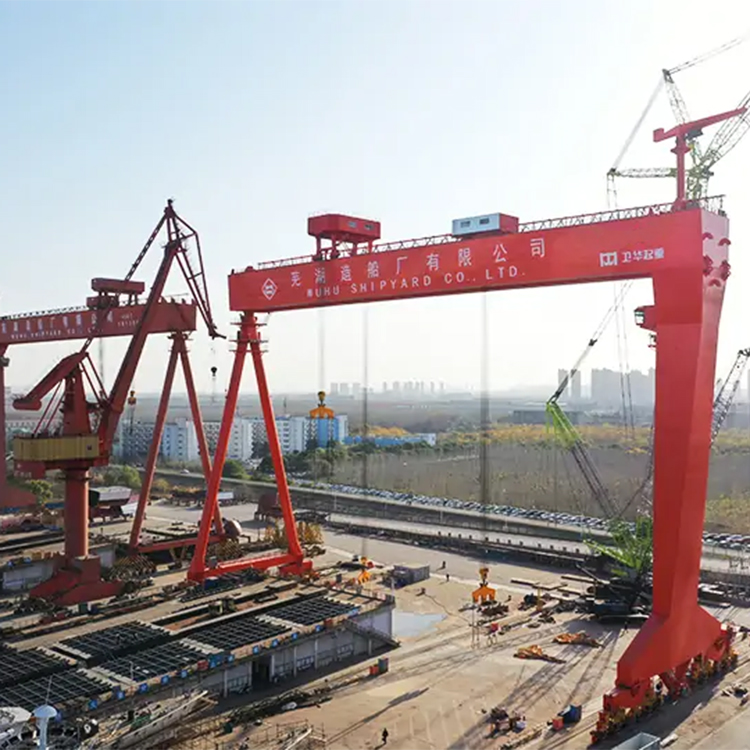

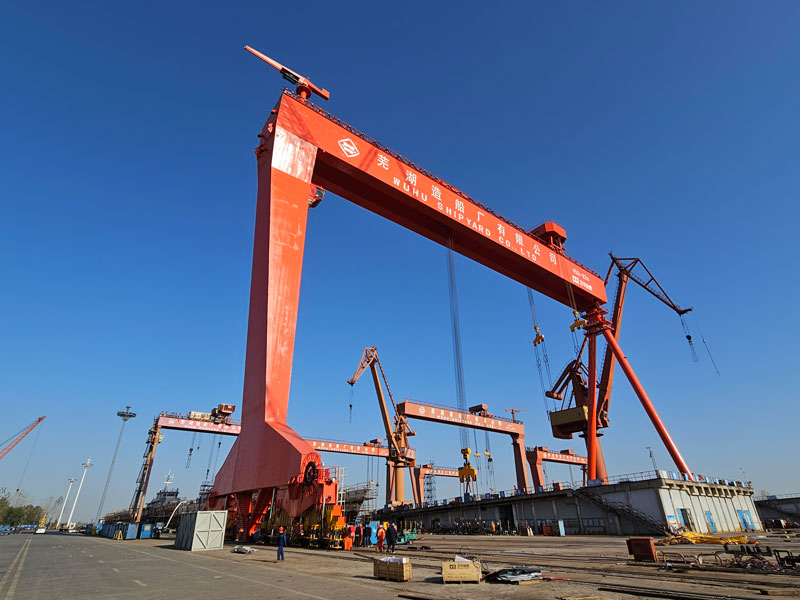

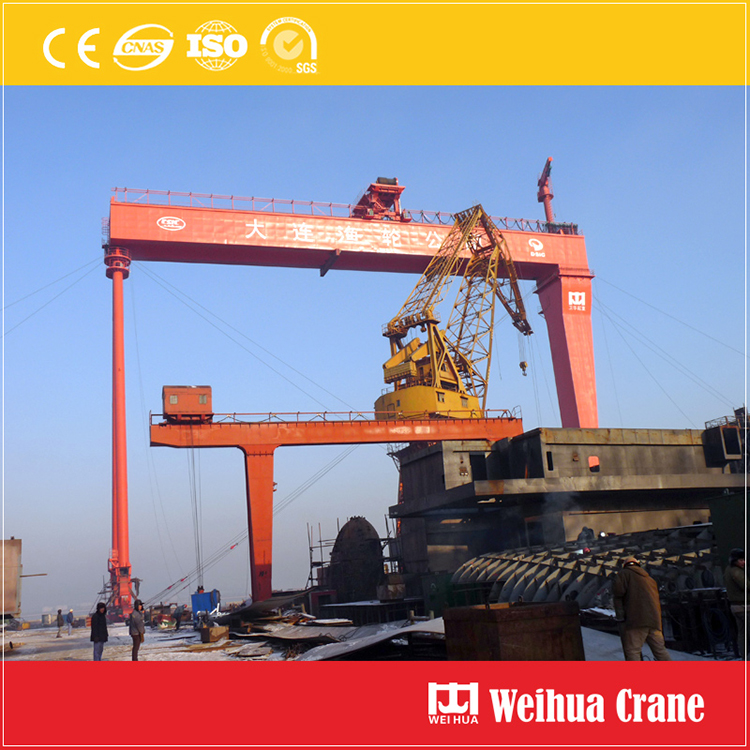

300 Tons Shipbuilding Gantry Crane

As a core piece of heavy lifting equipment in modern shipbuilding and offshore engineering, a 300 tons shipbuilding gantry crane is specifically engineered to meet the rigorous demands of ship hull assembly, section hoisting, and offshore module handling. With its exceptional lifting capacity, stable operation, and versatile performance, this crane serves as the “backbone” of shipyards, dry docks, and large-scale marine structure manufacturing sites, significantly enhancing production efficiency and construction safety while adapting to the complex working environments of marine engineering.

Prehľad produktov

The 300 tons shipbuilding gantry crane is a large-span, heavy-duty lifting device designed for outdoor and semi-outdoor operations, integrating advanced mechanical, electrical, and hydraulic technologies. Unlike traditional overhead cranes, it features a gantry frame supported by rigid and flexible legs, allowing it to move freely along ground rails and cover large working areas—making it ideal for hoisting heavy ship sections, steel plates, and marine components with high precision. It is available in both single-girder and double-girder designs, with the single-girder option recommended for large spans and heavy loads due to its cost-effectiveness, while the double-girder design offers enhanced stability for complex lifting tasks.

300 Tons Shipbuilding Gantry Crane Core Technical Specifications

The 300 tons shipbuilding gantry crane is customizable to meet diverse project requirements, with the following standard technical parameters (customizations available based on client needs):

Key Structural & Performance Advantages

1. Robust & Durable Structure

The gantry frame is made of high-strength Q355B steel, After shot blasting and anti-corrosion painting (epoxy zinc-rich primer + topcoat) to resist salt spray, vlhkosť, and marine corrosion—extending the crane’s service life in harsh coastal environments. The frame adopts a variable cross-section optimization design to ensure structural strength while reducing overall weight, and the rigid-flexible leg combination prevents structural deformation during heavy-load operation and long-span movement.

2. High Precision & Efektívnosť

Equipped with a frequency conversion control system, the crane achieves stepless speed regulation, ensuring smooth lifting, spúšťanie, and movement without impact—protecting fragile ship sections and components from damage. The dual-trolley design allows for single lifting, double-hook zdvíhanie, and air flipping of ship sections, enabling seamless assembly of hull segments and significantly improving shipbuilding efficiency. A deviation rectification system can be equipped for extra-large spans to ensure stable movement of rigid and flexible legs, preventing structural damage.

3. Komplexná bezpečnostná ochrana

Safety is a top priority, with multiple protection devices to ensure operator and equipment safety: overload limiter, obmedzovač výšky zdvihu, trolley travel limiter, crane travel limiter, wind speed and direction monitoring system, rail clamp device, and anchor device. The overload limiter automatically cuts off power when the load exceeds the rated capacity, while the wind speed monitoring system stops operation in strong winds (≥15m/s) to avoid accidents. All electrical components comply with international standards (napr., Schneider) for reliable performance.

4. Versatile & Prispôsobiteľné

The crane is suitable for various shipbuilding scenarios, including dry dock operations, slipway construction, offshore platform assembly, and steel structure handling. It can be customized with different spans, lifting heights, and trolley configurations to meet the specific needs of small, medium, and large shipyards. Optional configurations include a 10t 360° rotating maintenance crane for convenient equipment maintenance, wireless remote control, and cabin control for flexible operation.

5. Easy Maintenance & Low Operating Cost

The portálový žeriav is designed with maintenance in mind, featuring accessible components, centralized lubrication systems, and clear maintenance instructions. Routine maintenance is simple and cost-effective, reducing downtime and operational costs. The modular design allows for quick replacement of damaged parts, ensuring continuous operation of the shipbuilding line.

300 Tons Shipbuilding Gantry Crane Application Scenarios

• ◆ Shipyards: Hoisting and assembling ship hull sections, steel plates, ribs, and marine engines; flipping ship sections for welding and inspection.
• ◆ Dry Docks: Lifting and moving large ship blocks, assisting in ship maintenance and repair operations.

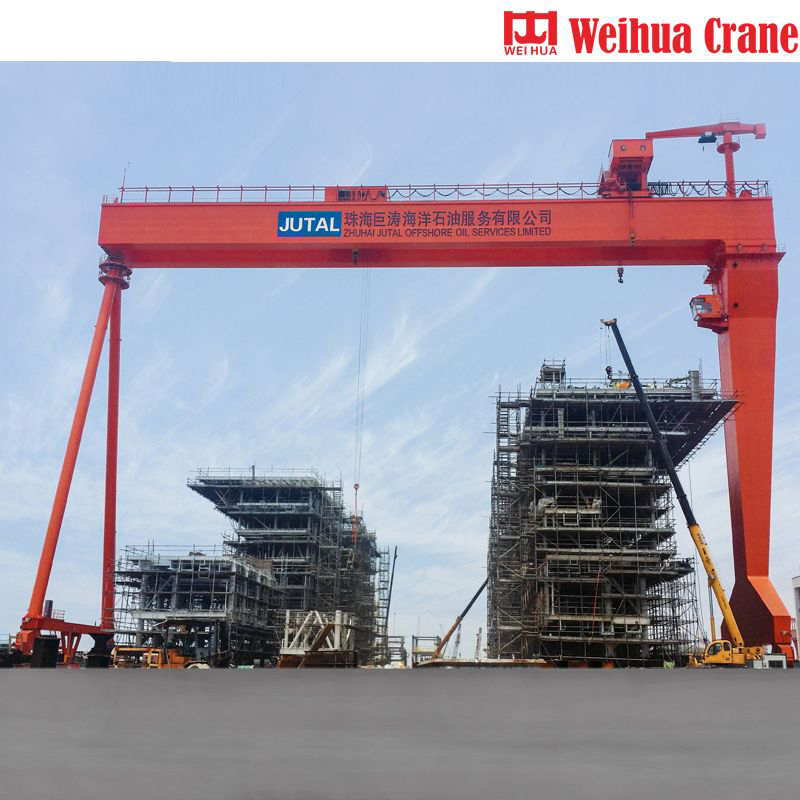

• ◆ Offshore Engineering: Handling offshore platform modules, wind power components, and other heavy marine structures.
• ◆ Heavy Industry: Lifting large steel structures, strojov, and prefabricated components in steel mills and industrial plants.

Quality & Certifikácia

náš 300 tons shipbuilding gantry crane complies with international standards, including ISO, CE, SGS, GOST, and BV certifications, ensuring reliable quality and safe operation worldwide. We have rich experience in manufacturing heavy-duty shipbuilding gantry cranes, with products widely used in national key projects and global shipyards. Each crane undergoes strict factory testing, including load testing, performance testing, and safety testing, before delivery to ensure it meets design requirements and industry standards.

Popredajný servis

We provide comprehensive after-sales service to support our clients throughout the crane’s lifecycle: professional installation and commissioning by experienced engineers, on-site operator training, regular maintenance guidance, a 24/7 technickú podporu. We also offer spare parts supply and on-site repair services to minimize downtime and ensure the crane operates at peak performance. Engineers are available to service machinery overseas to meet the needs of global clients.

The 300 tons shipbuilding gantry crane combines power, presnosť, and durability to become an indispensable piece of equipment for modern shipbuilding and marine engineering. With customizable configurations, spoľahlivý výkon, and comprehensive safety protection, it helps shipyards improve production efficiency, reduce costs, and achieve sustainable development in the competitive marine industry.
