30 Tons Overhead Crane: Heavy-Duty Material Handling Solution

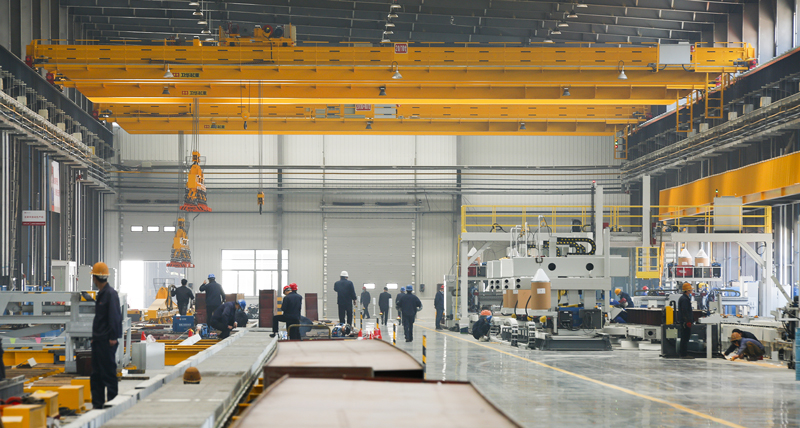

30 Tons Overhead Crane

А 30 tons overhead crane is a core material handling equipment designed for medium-to-heavy industrial applications. It excels in lifting, движущийся, and positioning loads up to 30 tons with high precision, stability, и безопасность, making it an indispensable asset for industries requiring efficient heavy-load transportation. Whether in manufacturing workshops, power plants, or logistics yards, this crane optimizes workflow, reduces manual labor intensity, and ensures consistent operational efficiency.

30 Tons Overhead Crane Core Features

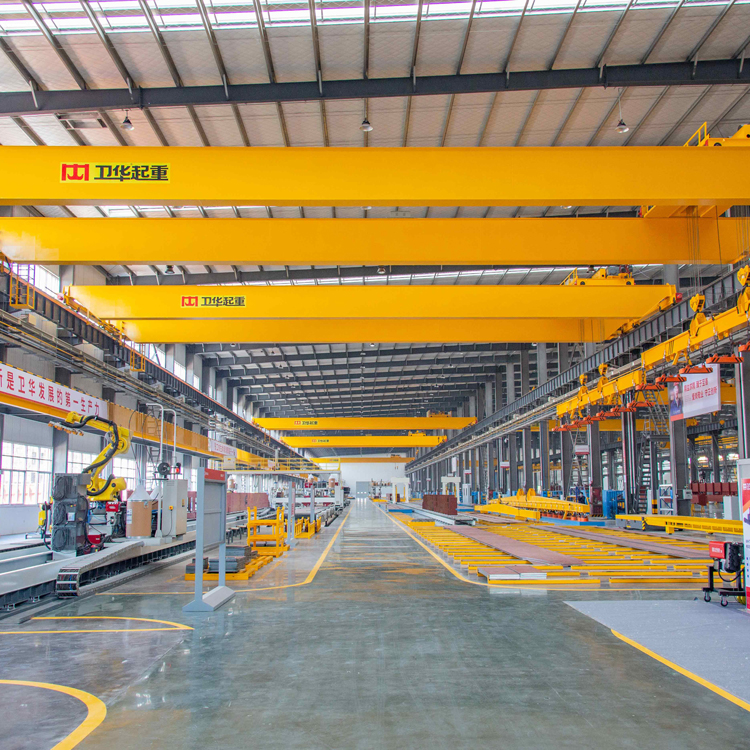

30 Tons Overhead Crane

А 30 tons overhead crane integrates advanced engineering, safety design, and user-friendly functionality, with the following key advantages:

1. Robust Structural Design: The main beam and end beams are fabricated from high-strength Q345B steel, undergoing strict welding and heat treatment processes. This ensures excellent load-bearing capacity, resistance to deformation, and long-term durability even under frequent heavy-load operations.
2. Comprehensive Safety Protection: Equipped with multiple safety devices to eliminate operational risks:
- Overload protection device: Automatically cuts off power when the load exceeds 110% of the rated capacity, preventing structural damage.
- Upper/lower limit switches for hoisting: Stops the hook from overtraveling, avoiding collisions with the crane frame or ground.
- Emergency stop button: Enables immediate shutdown of all mechanisms in case of emergencies.
- Anti-sway system: Reduces load swing during movement, improving positioning accuracy and preventing load damage.
3. High Operational Efficiency:
- The hoisting mechanism adopts a high-torque variable-frequency motor, supporting stepless speed regulation (0.8-8 m/min for hoisting, adjustable based on load weight).
- The crane (longitudinal travel) and trolley (transverse travel) mechanisms use precision gearboxes and rail clamps, ensuring smooth movement and positioning accuracy within ±5mm.
4. Intelligent Control System: Adopts PLC (Программируемый логический контроллер) with a touchscreen HMI (Human-Machine Interface). Operators can monitor real-time data (load weight, travel speed, working hours) and adjust parameters easily. Remote control is optional for scenarios requiring long-distance operation.
5. Easy Maintenance & Low Downtime: Key components (motors, reducers, bearings) use internationally renowned brands (НАПРИМЕР., Siemens, ABB) for reliable performance. The crane is designed with accessible maintenance hatches and lubrication points, simplifying routine inspections and reducing maintenance time.

30 Tons Overhead Crane Technical Specifications

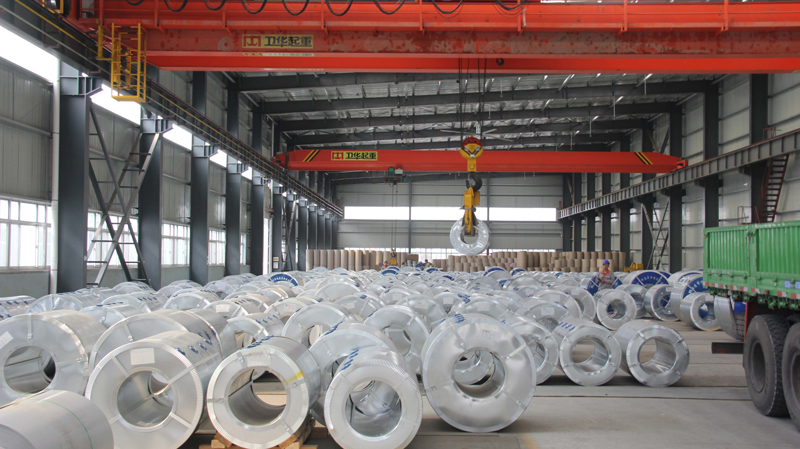

30 Tons Overhead Crane

Parameter Category	Specification Details
Rated Lifting Capacity	30 тонны (main hook); 5-10 тонны (auxiliary hook, необязательный)
Span Range	10 м - 31.5 м (customizable for special workshops)
Высота подъема	6 м - 30 м (customizable based on workshop height)
Скорость подъема (Main Hook)	0.8 - 8 м/мой (variable frequency, stepless regulation)
Скорость подъема (Aux Hook)	2 - 16 м/мой (Если оборудован)
Longitudinal Travel Speed (Crane)	20 - 40 м/мой (variable frequency)
Transverse Travel Speed (Trolley)	10 - 20 м/мой (variable frequency)
Рабочий класс	А5 – А7 (А5: medium-duty, 1,000 working hours/year; A7: heavy-duty, 4,000 working hours/year)
Источник питания	380В/50Гц/3Ф (customizable for 415V/60Hz for international markets)
Overall Weight	15 - 35 тонны (varies by span and lifting height)
Motor Power (Hoisting)	18.5 - 37 кВт (main hook); 5.5 - 11 кВт (auxiliary hook, необязательный)
Motor Power (Longitudinal Travel)	2×7.5 – 2×15 kW (one motor per end beam)
Motor Power (Transverse Travel)	1×3 – 1×7.5 kW

30 Tons Overhead Crane Industry Applications

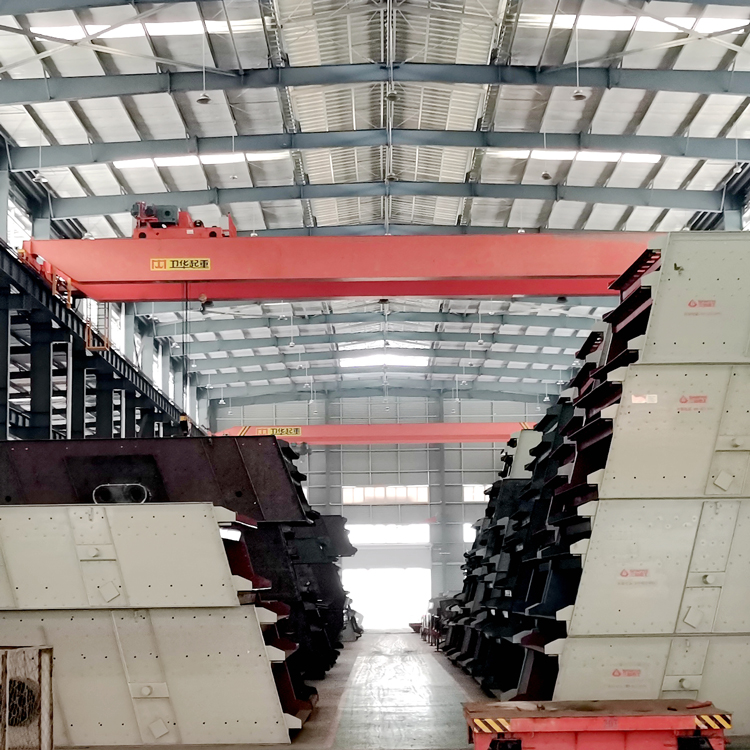

30 Tons Overhead Crane

А 30 tons overhead crane is widely used in industries that require heavy-load handling, thanks to its adaptability to different working environments:

1. Heavy Machinery Manufacturing: Lifts and assembles large components (НАПРИМЕР., engine blocks, machine frames) in workshops for tractors, excavators, or industrial presses.
2. Power Industry: Installs and maintains heavy equipment in thermal power plants (НАПРИМЕР., boilers, генераторы) and hydropower stations (НАПРИМЕР., turbine rotors), ensuring safe and efficient construction.
3. Металлургическая промышленность: Transports molten steel ladles, steel coils, or cast iron ingots in steel mills. The crane can be customized with high-temperature resistance (НАПРИМЕР., heat-insulated hooks) to withstand harsh environments.
4. Chemical Industry: Moves large chemical reactors, storage tanks, or pressure vessels. It is designed with explosion-proof motors and electrical components to meet safety standards in flammable/explosive areas.
5. Логистика & Склады: Loads and unloads heavy cargo (НАПРИМЕР., shipping containers, large machinery parts) in ports, railway yards, or industrial warehouses, streamlining cargo turnover.
6. Construction Industry: Lifts prefabricated concrete components (НАПРИМЕР., балки, columns) or construction machinery (НАПРИМЕР., small cranes) in large-scale building projects, improving on-site construction efficiency.

Difference Between Single-Girder & Double-Girder 30 Tons Overhead Cranes

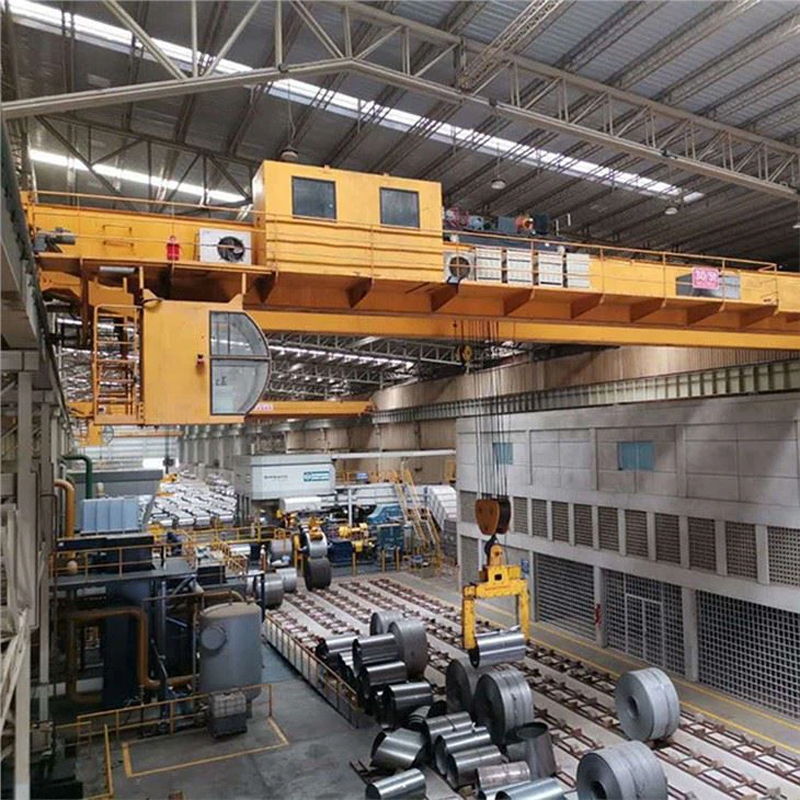

30 Tons Overhead Crane

While both models handle 30 тонны, their structural designs and application scenarios differ significantly. The following table compares key aspects:

Comparison Dimension	Single-Girder 30 Tons Overhead Crane	Double-Girder 30 Tons Overhead Crane
Structural Design	Single main beam (I-beam or box beam) supported by end beams.	Two parallel main beams (box beams) connected by crossbeams.
Span Adaptability	Maximum span ≤ 22 м (limited by single-beam load-bearing capacity).	Maximum span ≥ 31.5 м (suitable for large workshops/yards).
Высота подъема	Generally 6 - 18 м (limited by trolley installation space).	Generally 10 - 30 м (more vertical space for trolley movement).
Space Occupancy	Lower headroom (saves workshop height); smaller overall size.	Higher headroom (requires taller workshops); larger footprint.
Operational Stability	Moderate stability (prone to slight beam deflection under heavy loads).	High stability (dual beams distribute load evenly, minimal deflection).
Load Frequency	Suitable for medium-frequency operations (≤ 1,500 cycles/year).	Suitable for high-frequency operations (≥ 3,000 cycles/year).
Cost	Lower initial cost (30% - 50% cheaper than double-girder).	Higher initial cost (but lower long-term maintenance costs for heavy use).
Optional Configurations	Limited (auxiliary hook, remote control only).	Versatile (auxiliary hook, grab bucket, magnet, Анти-системная система, и т. д.).
Ideal Scenarios	Small-to-medium workshops, low-frequency heavy-load handling (НАПРИМЕР., small machinery factories).	Large workshops, high-frequency heavy-load handling (НАПРИМЕР., steel mills, power plants).

FAQ: 30 Tons Overhead Crane

Q1: What factors should I consider when selecting a 30 tons overhead crane?

A1: Key factors include:

1. Workshop Dimensions: Охватывать (distance between crane rails) and height (determine lifting height).
2. Working Intensity: Choose the right working class (A5 for medium use, A7 for heavy use).
3. Load Characteristics: Whether the load is regular (НАПРИМЕР., steel coils) or irregular (НАПРИМЕР., machinery parts) (affects hook type or auxiliary tools).
4. Условия окружающей среды: High temperature, влажность, or explosion risks (require customized components like heat-resistant or explosion-proof designs).
5. Local Standards: Compliance with regional safety certifications (НАПРИМЕР., CE for Europe, OSHA for the US, GB for China).

Q2: How often does a 30 tons overhead crane require maintenance?

A2: Maintenance follows a three-level schedule:

1. Daily Inspection: Check safety devices (Аварийная остановка, ограниченные переключатели), wire rope wear, and oil levels before operation.
2. Monthly Maintenance: Inspect motor temperature, reducer noise, and rail alignment; lubricate moving parts (bearings, gears).
3. Annual Overhaul: Test load capacity (125% rated load test), replace worn parts (wire ropes, brake pads), and verify electrical safety.

Q3: Can the 30 tons overhead crane be customized for special needs?

А3: Yes. Common customizations include:

1. Extended span/lifting height (НАПРИМЕР., 35 m span for large workshops).
2. Special hooks (НАПРИМЕР., C-hooks for steel coils, magnetic hooks for metal sheets).
3. Explosion-proof/heat-resistant designs (for chemical or metallurgical industries).
4. Automation features (НАПРИМЕР., automatic positioning, integration with factory MES systems).

Q4: What safety certifications are mandatory for 30 tons overhead cranes?

A4: Certifications vary by region, but key ones include:

1. International: Iso 4301 (crane safety), CE (EU), Оша (US), SABS (South Africa).
2. Китай: ГБ/Т 3811 (crane design standards), TSG Q7015 (special equipment inspection).
3. All cranes must pass load tests (static load: 125% rated capacity; dynamic load: 110% rated capacity) before delivery.

Q5: What is the service life of a 30 tons overhead crane?

А5: Under normal use and proper maintenance, the service life is 10 - 15 годы. Key factors affecting life include:

1. Working class (A7 cranes have shorter life than A5 if used identically).
2. Maintenance frequency (regular maintenance extends life by 3 - 5 годы).
3. Условия окружающей среды (corrosive or high-temperature environments reduce life).

А 30 tons overhead crane combines power, безопасность, and flexibility to meet the diverse needs of heavy-industry material handling. With customizable designs and reliable performance, it is a long-term investment for improving operational efficiency and ensuring workplace safety. For more details on models, quotes, or custom solutions, please contact our technical team.
