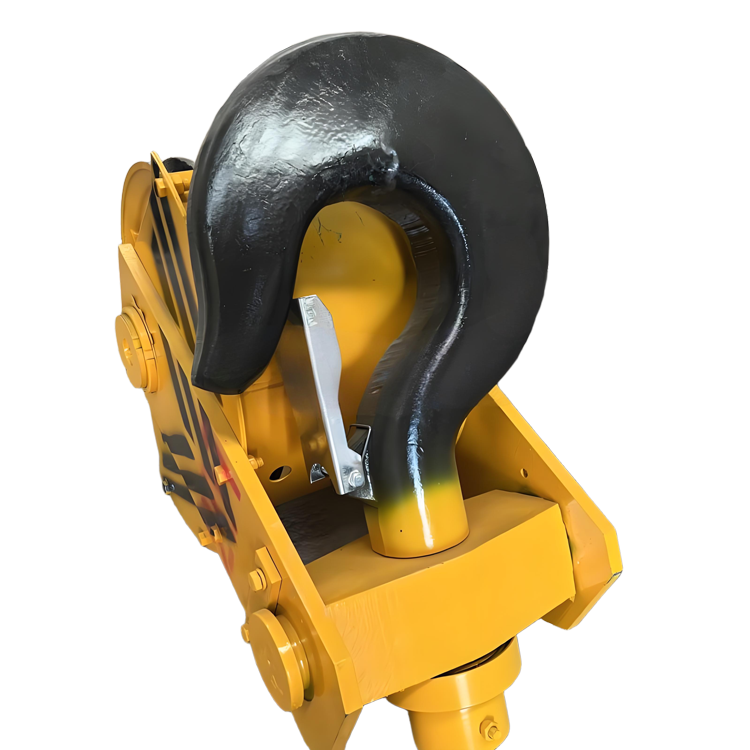

30 Ton crane hook

А 30 ton crane hook produced by Weihua Group is the core equipment of heavy-duty cranes and is widely used in hook groups of bridge cranes and gantry cranes.

30 Ton Crane Hook Key Features & Преимущества

1. Кованая сплавная сталь премиум -класса:
   Forged under extreme pressure for superior grain structure, maximizing strength, impact resistance, and fatigue life compared to cast hooks.

2. 30 Ton Safe Working Load (SWL):
   Rated for 30 метрические тонны (30,000 кг) under standard conditions. Rigorously proof-tested to 125% SWL (37.5 тонны) to ensure structural integrity.

3. ASME B30.10 Compliant:
   Meets critical design, Производство, and inspection requirements for overhead hooks, ensuring safety and regulatory acceptance.

4. Precision Machined Surfaces:
   Critical load-bearing surfaces (седло, shank/bail) are precision-machined for optimal rope/chain contact and reduced wear.

5. Heavy-Duty Safety Latch Options:
   Available with robust spring-loaded or bolt-type safety latches (standard or optional) to prevent accidental load disengagement.

6. Smooth Contoured Throat Design:
   Minimizes stress concentrations and wire rope abrasion for longer service life of both hook and rope.

7. Durable Finish:
   Protected against corrosion with high-quality paint or galvanization (specify option).

8. Traceability & Сертификация:
   Each hook includes a unique serial number and is supplied with a Manufacturer’s Test Certificate documenting material specs, heat treatment, and load test results.

Технические спецификации

Параметр	Content
Емкость	30 Metric Tons (30,000 кг / 66,139 lbs) SWL
Материал	High-Tensile Alloy Steel (НАПРИМЕР., 34CRMO4, 42CRMO)
Стандартный	ASME B30.10, Iso 7597, Женский 9.511, GB/T 10051
Доказательство нагрузочного теста	125% SWL (37.5 Тонны)
Crane Hook Type	Forged, Одиночный крючок (Specify shank type: Eye, Clevis, or Swivel Hook Assembly)
Защелка по обеспечению безопасности крюка	Standard Spring Latch Included (Bolt-Type Optional)
Throat Opening	[Specify dimension in mm – e.g., ~150mm typical]
Масса	[Specify approx. kg – e.g., ~85-100kg typical]
Compatibility	Designed for Weihua 30-ton overhead cranes, Гарновые краны, and compatible hoists.

Ideal For

• Weihua 30-ton overhead bridge cranes

• Weihua 30-ton gantry cranes

• Литейные, Steel Mills, Heavy Fabrication

• Shipping & Logistics Terminals

• Электростанции, Heavy Machinery Installation

• Mining and Construction

Why Choose Genuine Weihua 30 Тонны крючков?

• Guaranteed Compatibility: Precision-engineered for seamless integration with Weihua crane systems.

• Uncompromising Safety: Forged construction and rigorous testing prevent catastrophic failure.

• Extended Service Life: Superior materials and finish reduce wear and maintenance costs.

• Reduced Downtime: Reliable performance keeps your operations running smoothly.

• Full Warranty & Поддерживать: Backed by Weihua’s global service network.
