Haczyk żurawia w bramę

Spis treści Pokazywać

Jako kluczowe połączenie między mechanizmem podnoszenia dźwigu a obciążeniami krytycznymi, the Weihua Gantry Crane Hook embodies over 30 years of metallurgical innovation and rigorous quality control. Trusted in the world’s most demanding lifting environments, from Arctic logistics hubs to tropical megaports.

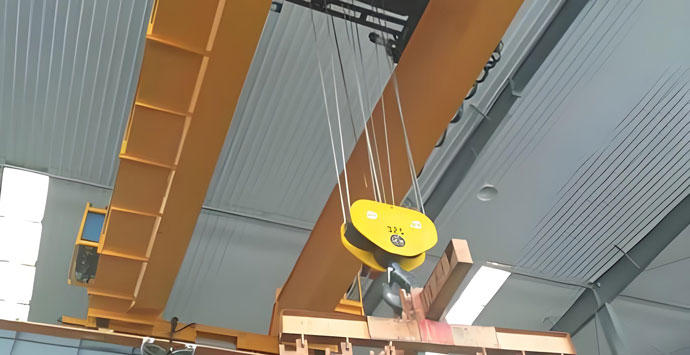

Haczyk żurawia w bramę

Gantry Crane Hook Technical Specifications (Typowy asortyment – konfigurowalny)

Parametr	Specyfikacja / Range
Bezpieczne obciążenie robocze (SWL)	1 tona Do 500+ mnóstwo (Standard & Custom Capacities Available)
Tworzywo	Stal stopowa o wysokiej wytrzymałości (NP., 34CRMO4, 42Crmo, 35Crmo, C-Mn Steel per standards)
Safety Standards	ISO 4301, Fem 1.001, ASME B30.10, Z 15400, GB/T 10051.1, CE Marked
Testowane obciążenie próbne	Typically 125% Do 200% SWL
Projektowy współczynnik bezpieczeństwa	Minimum 4:1 (often higher, NP., 5:1 for M6/FEM 1.001m)
Obróbka powierzchniowa	Electro-galvanized, Cynkowane ogniowo, Namalowany, Stal nierdzewna (Aisi 316)
Obrót	Fixed Eye, Plain Bushing Rotation, Sealed Anti-Friction Bearing Rotation (360°)
Zatrzask bezpieczeństwa	Spring-Loaded or Bolt-Type (Standard)
Identyfikowalność	Unique serial number and test certificate provided

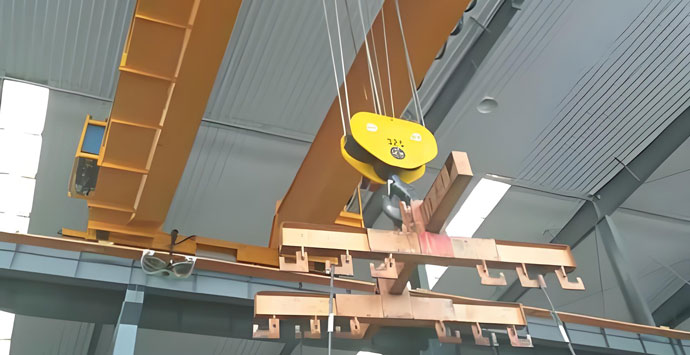

Haczyk żurawia w bramę

Podstawowe funkcje & Korzyści

1. Bezkompromisowa siła & Trwałość:
- Materiały premium: Wykuty ze stali stopowej na wysokim rozciąganie (NP., Grade P, Q, S, or equivalent per FEM/DIN/ISO standards) for exceptional strength-to-weight ratio and resistance to deformation.
- Solidna budowa: Precision forging ensures superior grain structure flow, minimizing stress points and maximizing fatigue life under repeated heavy loads.
- Odporność na korozję: Options include high-quality zinc plating (electro or hot-dip galvanizing), specjalistyczne powłoki, or stainless steel variants for harsh environments (morski, chemiczny).
2. Zwiększone bezpieczeństwo & Niezawodność:
- Rygorystyczne testy: Every hook undergoes Non-Destructive Testing (NDT – Magnetic Particle, Dye Penetrant) and proof load testing (typically 1.5x – 2x SWL) to guarantee structural integrity and compliance with safety regulations (ISO 4301, Fem 1.001, ASME B30.10, Z 15400).
- High Safety Factor: Designed with a significant safety margin exceeding minimum regulatory requirements (NP., 4:1, 5:1, or higher depending on classification).
- Secure Latch Options: Reliable spring-loaded safety latches or robust bolt-type latches included as standard to prevent accidental load disengagement.
3. Optimized Performance:
- Low Friction & Płynna praca: Precision-machined throat and saddle points minimize friction with slings and rigging, reducing wear and ensuring smooth load movement.
- Reduced Weight (Where Applicable): Advanced forging techniques and design optimization result in lighter hooks without sacrificing strength, improving crane efficiency.
- Rotation Options: Available in fixed eye, standard rotation (plain bush/bearing), or low-friction sealed bearing rotation models (up to 360°) for effortless load positioning and reduced wire rope twisting.
4. Versatility for Every Task:
- Comprehensive Range: Choose from various hook types:
  - Forged Single Hooks: Standard duty to ultra-heavy duty (SWL from 1 ton do 500+ mnóstwo).
  - Forged Ramshorn Podwójny hak: Ideal for balanced lifting with two sling legs (SWL from 1 ton do 300+ mnóstwo).
  - Laminated Hooks: Multiple steel plates for specific high-impact or specialized applications.
- Multiple Shank Configurations: Eye hooks, Clevis hooks, and hooks compatible with Weihua’s advanced trolley systems.

Haczyk żurawia w bramę

Why Choose Weihua Gantry Crane Hooks?

1. Global Leader: Leverage Weihua’s 30+ years of experience as a top crane manufacturer.
2. Zapewnienie jakości: Stringent quality control at every stage, from raw material to final inspection.
3. Bezpieczeństwo przede wszystkim: Engineered and tested to exceed global safety standards.
4. Długie życie: Durable construction minimizes downtime and replacement costs.
5. Niestandardowe rozwiązania: Tailor hook specifications (SWL, obrót, tworzywo, coating) to your exact gantry crane and application needs.
6. Comprehensive Support: Global network for parts, service, and technical expertise.

producent

Gantry Crane Hook Applications

1. Port Container Handling & Bulk Material Terminals
2. Okrętownictwo & Repair Yards
3. Heavy Fabrication Workshops & Huty stali
4. Large-Scale Construction Projects
5. Elektrownie & Infrastructure Development
6. Instalacja ciężkich maszyn & Konserwacja
7. Rail Yards & Centra Logistyczne

Przemysł	Hook Solution	Key Feature
Ports/Terminals	RAMSHORN HOOK + TwistLock Adaptor	360° rotation + ISO 3874 container compatibility
Huty stali	FORGED LADLE HOOK (M8 Duty)	Refractory heat shield (>800°C intermittent)
Energia Wiatrowa	MODULAR EYE HOOK with Dyneema® Sling Interface	Lightweight (35% mass reduction) for tower lifts
Offshore	DNV-GL Certified Hook with Zn-Ni Alloy Coating	Salt spray resistance >1,000 hrs (ISO 9227)
Automobilowy	Low-Profile Rotating Hook with RFID Tag	Collision avoidance in dense assembly lines

aplikacja

Advanced Safety Systems

Proactive Load Security:
- Smart Latch Monitoring: Optional IoT-enabled sensors detecting latch engagement status (output to crane control system).
- Anti-Swing Grooves: Machined throat geometry minimizes sling slippage during dynamic lifts.
Failure Prevention:
- Wskaźniki zużycia: Laser-etched wear limit markers on critical load zones.
- Zabezpieczenie przed przeciążeniem: RFID-tagged hooks with embedded load history (compatible with Weihua Crane Health Monitoring System).
