Komponen Crane Overhead

Overhead cranes are the workhorses of manufacturing plants, gudang, tapak pembinaan, dan kemudahan industri, enabling the safe and efficient lifting of heavy loads. Behind their robust performance lies a set of carefully engineered components that work in harmony. Understanding these overhead crane components is essential for operators, maintenance teams, and anyone involved in material handling operations. Let’s dive into the core structures that make overhead cranes reliable and functional.

1. Girder Utama

Girder Utama

The main girder is the primary horizontal beam of the Crane Overhead, merangkumi lebar ruang kerja. It serves as the backbone of the crane, supporting the entire weight of the load, troli, and lifting mechanism.

• 1. Typically constructed from high-strength steel for durability and load-bearing capacity.
• 2. Designed with specific cross-sections (such as I-beam, box girder, or truss) to balance strength and weight.
• 3. The length of the main girder determines the crane’s span—its ability to cover the working area.

2. Trak akhir

Trak akhir

End trucks are mounted at both ends of the main girder, acting as the “feet” of the overhead crane. They connect the girder to the crane runway and enable horizontal movement along the track.

• 1. Equipped with wheels or rollers that glide smoothly on the runway rails.
• 2. Housing drive mechanisms (motors and gearboxes) that power the crane’s longitudinal travel.
• 3. Built to withstand lateral forces and ensure stable movement across the workspace.

3. Troli

troli

The trolley is a movable unit that travels along the length of the main girder, allowing the lifting mechanism to reach different positions within the crane’s span.

• 1. Mounted on wheels that run along the top or bottom flange of the main girder.
• 2. Can be manually operated for light-duty applications or motorized for heavy loads and precise positioning.
• 3. Carries the lifting mechanism (angkat) and moves horizontally to align with the load’s location.

4. Gendang

crane wire rope drum

The drum is a cylindrical component that stores the lifting rope or chain, playing a critical role in raising and lowering the load.

• 1. Constructed from steel with grooved surfaces to prevent rope tangling and ensure even winding.
• 2. Connected to the lifting motor and reducer, rotating to wind or unwind the rope/chain.
• 3. The size of the drum depends on the crane’s lifting capacity and the required lifting height.

5. Kotak gear

kotak gear

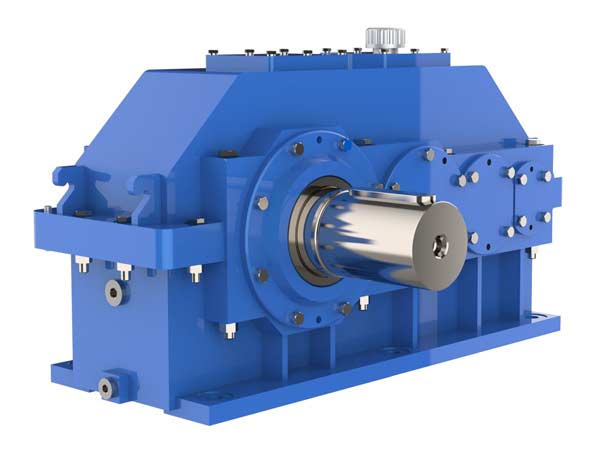

The gearbox is a power transmission component that adjusts the speed and torque from the motor to match the crane’s operational needs.

• 1. Gearboxs the high rotational speed of the motor to a slower, more controlled speed for lifting and traversing.
• 2. Increases torque to provide the necessary force for lifting heavy loads.
• 3. Common types include gearboxs, worm gearboxs, and planetary gearboxs, selected based on the crane’s design and load requirements.

6. Mekanisme angkat

Mekanisme angkat

The hoisting mechanism is the heart of the overhead crane, responsible for vertically lifting and lowering the load. It integrates several key components into a cohesive system.

• 1. Consists of the motor, pengurang, gendang, lifting rope/chain, and hook block.
• 2. The motor provides the power, which is transmitted through the reducer to the drum.
• 3. The hook block (equipped with pulleys) distributes the load force, enhancing lifting efficiency and stability.

7. Sistem elektrik

Pemungut semasa kren

The electrical system is the control center of the overhead crane, powering all mechanisms and ensuring safe operation.

• 1. Includes power supply cables, panel kawalan, motor, sensor, and wiring harnesses.
• 2. Control panels allow operators to manage lifting, menurunkan, pergerakan troli, and crane travel via buttons or joysticks.
• 3. Protective devices (such as circuit breakers and fuses) prevent electrical overloads and short circuits.

8. Safety System

Mengangkat ketinggian ketinggian

Safety systems are non-negotiable components that protect operators, peralatan, and loads from accidents.

• 1. Peranti perlindungan beban: Shuts down the lifting mechanism if the load exceeds the crane’s rated capacity.
• 2. Hadkan suis: Prevent overtravel of the trolley or crane, stopping movement at preset limits.
• 3. Butang berhenti kecemasan: Immediately cuts power to all mechanisms in case of emergency.
• 4. Anti-collision system: Avoids collisions between multiple cranes operating on the same runway.
• 5. Brake system: Secures the load in place when lifting is paused and stops crane/trolley movement when not in use.

Why Every Component Matters

Each overhead crane component plays a vital role in ensuring the equipment’s performance, keselamatan, dan panjang umur. From the main girder’s structural support to the safety system’s fail-safes, every part must be properly maintained and inspected regularly. A well-maintained crane not only minimizes downtime but also protects workers and valuable assets.

Whether you’re investing in a new overhead crane or maintaining an existing one, understanding these key components helps you make informed decisions about operation, penyelenggaraan, and upgrades. By prioritizing component integrity, you can maximize the crane’s efficiency and extend its service life.

If you need a detailed component maintenance checklist or want to learn more about selecting the right overhead crane for your application, feel free to reach out. Our team of experts is here to help you optimize your material handling operations!
