Insulated crane conductor rail

In the demanding environment of industrial facilities, the efficient and safe power supply to overhead cranes, ホイスト, and other material handling equipment is paramount. The Insulated Crane Conductor Rail System represents a significant leap forward from traditional bare conductor or festoon systems, offering a robust, 安全, and low-maintenance solution for electrifying heavy-duty applications.

What is an Insulated Crane Conductor Rail?

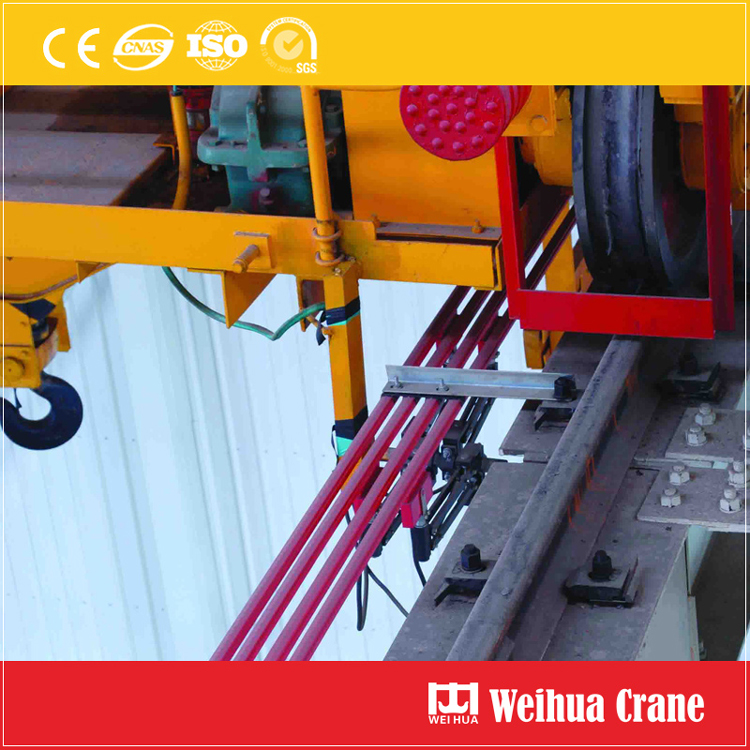

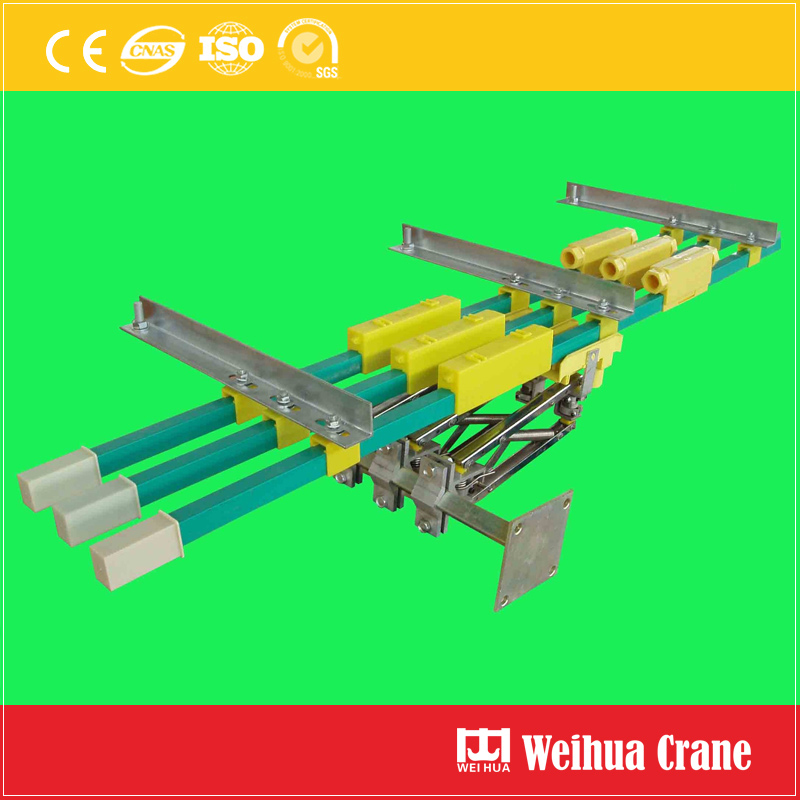

An insulated crane conductor rail is a fully-enclosed power distribution system designed to supply electrical energy to moving crane equipment. Unlike open conductor bars, this system features high-conductivity copper or aluminum rails housed within a rigid, protective steel casing. The critical component is the high-grade, impact-resistant insulation that completely surrounds the live conductors, separating them from the outer structure and the environment.

This engineered design creates a highly reliable and exceptionally safe method for power transmission across long distances on crane runways.

重要な機能 & Core Advantages

• 1. 安全性の強化

  • Complete Touch Protection: The fully insulated enclosure prevents accidental contact with live parts, protecting personnel from electrical shock hazards. This makes it ideal for facilities where worker safety is a top priority.
  • Reduced Short-Circuit Risk: The enclosed design prevents the ingress of foreign objects like tools, wires, or debris, which are common causes of short circuits and phase-to-phase faults in open systems.

• 2. 優れた信頼性 & Uptime

  • Protected from Contaminants: The system is highly resistant to dust, 水分, oil, and chemical vapors. This ensures consistent performance and prevents outages caused by environmental contamination, a common failure point for exposed systems.

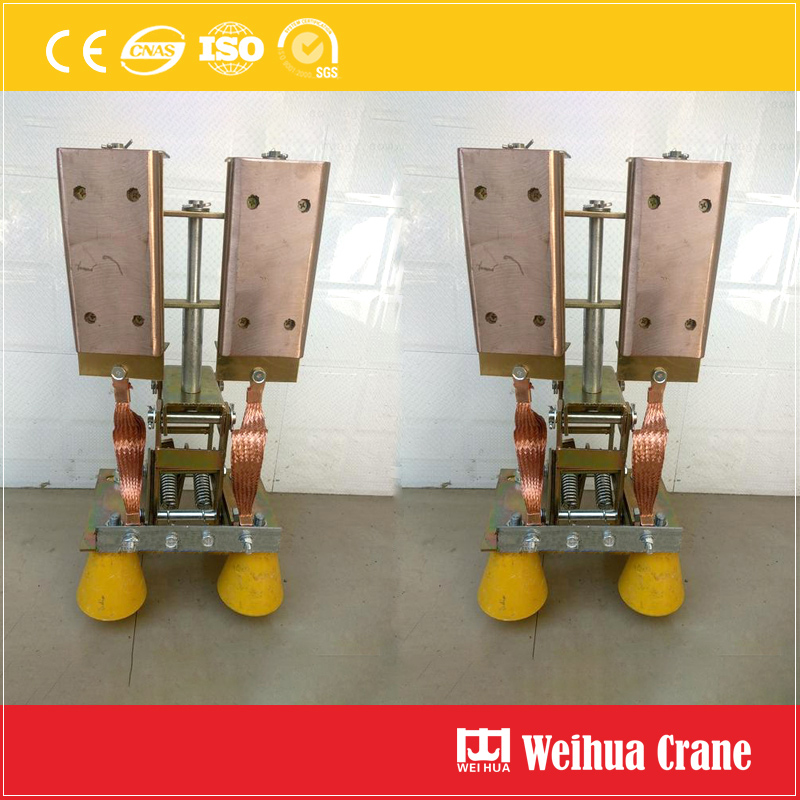

  • Stable Power Collection: The integrated collector trolley, equipped with carbon or sintered metal contact shoes, maintains constant and stable contact with the conductor rail, even in high-vibration environments. This minimizes power arcing and voltage drops.

• 3. Low Maintenance & 長いサービスライフ

  • Durable Construction: Made from robust materials like galvanized or stainless steel, the outer casing provides excellent mechanical protection against impact and corrosion.
  • Self-Cleaning Design: The design often allows for a self-cleaning action as the collector trolley moves, reducing the buildup of contaminants on the conductor surface.
  • Minimal Downtime: With no dangling cables or loose components to maintain or replace, the system requires significantly less inspection and upkeep than festoon systems, maximizing your operational uptime.

• 4. High Current Capacity and Flexibility

  • Suitable for Heavy-Duty Applications: These systems are engineered to deliver high electrical currents (ranging from hundreds to several thousands of Amps), making them perfect for large-scale industrial cranes, gantries, and automated transfer vehicles.

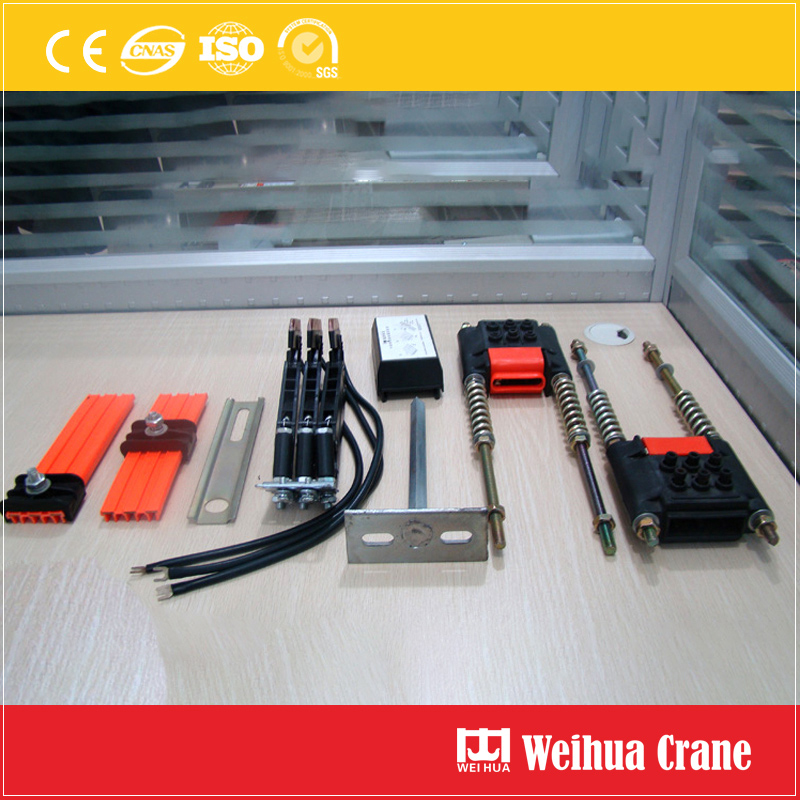

  • モジュラー設計: Available in straight lengths, curves, crossings, and switches, the rail can be configured to match virtually any crane runway layout, including complex and multi-crane facilities.

Insulated Crane Conductor Rail – Technical Parameter Table

This table provides a detailed overview of the standard technical specifications for our conductor rail systems. Parameters may vary depending on the specific model and application requirements.

パラメーター	Standard Specifications / Options
Rated Voltage	240v, 400v, 480v, 500vと / 250v, 500DCで
Rated Current	100a, 160a, 250a, 400a, 600a, 800a, 1000A+
Conductor Material	High-conductivity electrolytic copper (標準) or aluminum alloy.
Conductor Cross-Section	例えば。, 40mm², 80mm², 120mm², 240mm² (varies with current rating).
Insulation Level	Class F (155°C) または高, flame-retardant, self-extinguishing.
Dielectric Strength	通常 3-4 kV / 50 Hz for 1 minute.
Housing Material	Galvanized steel (標準), powder-coated steel, またはステンレス鋼 (アイシ 304/316 for corrosive environments).
Protection Level (IP Rating)	IP54 (標準, dust and water splashing), IP65 (water jet proof), IP68 (submersible) available.
Standard Length	3m, 5m, or 6m per section (for easy transport and installation).
重さ	Varies by system; 例えば。, 5-15 1メートルあたりkg.
Bending Radius	Customizable for curves (例えば。, Rmin = 1.5m, 2.5m).
Collector Shoe Material	Carbon graphite (標準, good wear and conductivity), sintered metal (heavy-duty, long life).
標準コンプライアンス	IEC 61439, IEC 60529, ISO 8528, cULus Listed, CE Marked.

注記: The values provided are indicative. For a precise quotation and detailed technical drawings, please consult our engineering team with your specific application details, including crane capacity, runway length, duty cycle (FEM Group / Class), and environmental conditions.

Technical Highlights

• 1. Robust Housing: Made from high-strength steel or aluminum alloy.
• 2. High-Conductivity Rails: Typically copper or aluminum, available in various cross-sections to match current requirements.
• 3. Advanced Insulation: High-dielectric-strength, flame-retardant, and self-extinguishing insulation materials.
• 4. IP Rating: Typically rated IP54 or higher, ensuring protection against dust and water spray.
• 5. Voltage Ratings: Suitable for common industrial voltages up to 1000V AC/DC.

典型的なアプリケーション

Insulated Crane Conductor Rails are the preferred choice for a wide range of industries, 含む:

• 1. 製鉄所 & 鋳物工場
• 2. 造船所 & ポート
• 3. Automotive Manufacturing
• 4. 倉庫 & 配送センター
• 5. Wastewater Treatment Plants
• 6. Power Stations
• 7. Heavy Machinery Manufacturing

結論

The insulated crane conductor rail is more than just a power delivery system; it is an investment in operational safety, efficiency, and productivity. By eliminating the primary drawbacks of traditional electrification methods, it provides a clean, 安全, and dependable power source that keeps your critical material handling operations running smoothly.

Upgrade to an Insulated Crane Conductor Rail System and power your productivity with confidence.
