Gru a ponte con benna

Sommario Spettacolo

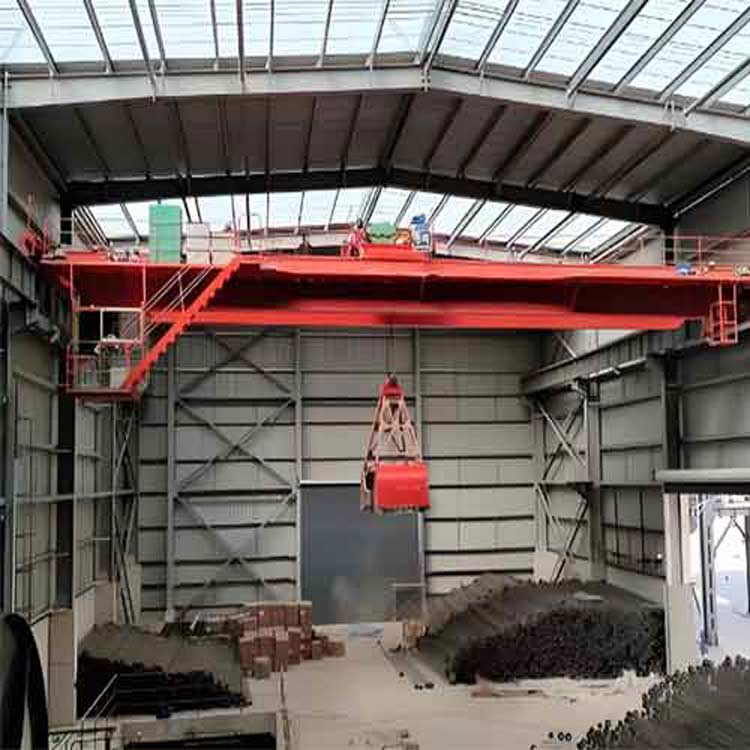

A grab bucket overhead crane is a specialized material handling machine designed to streamline the grabbing, sollevamento, and transportation of bulk materials like coal, ore, grano, sand, and gravel. As a critical piece of equipment in industrial and mining operations, this crane combines the stability of an overhead bridge structure with the powerful gripping force of a grab bucket—making it ideal for businesses seeking to boost productivity, cut labor costs, and ensure safe bulk material movement. Whether you’re operating in a mine, power plant, port, or construction site, a high-quality grab bucket overhead crane delivers consistent performance for heavy-duty material handling tasks.

Gru a ponte con benna

Key Features of Our Grab Bucket Overhead Crane

Our grab bucket overhead crane is engineered with industrial-grade components to meet the demands of harsh working environments. Here are its standout features:

1. High-Strength Main Beam: Constructed from premium Q355B steel using welding forming technology, the main beam undergoes strict flaw detection to ensure exceptional load-bearing capacity and fatigue resistance. Its optimized box-type structure reduces self-weight while maintaining rigidity, enabling stable operation even under maximum rated loads.

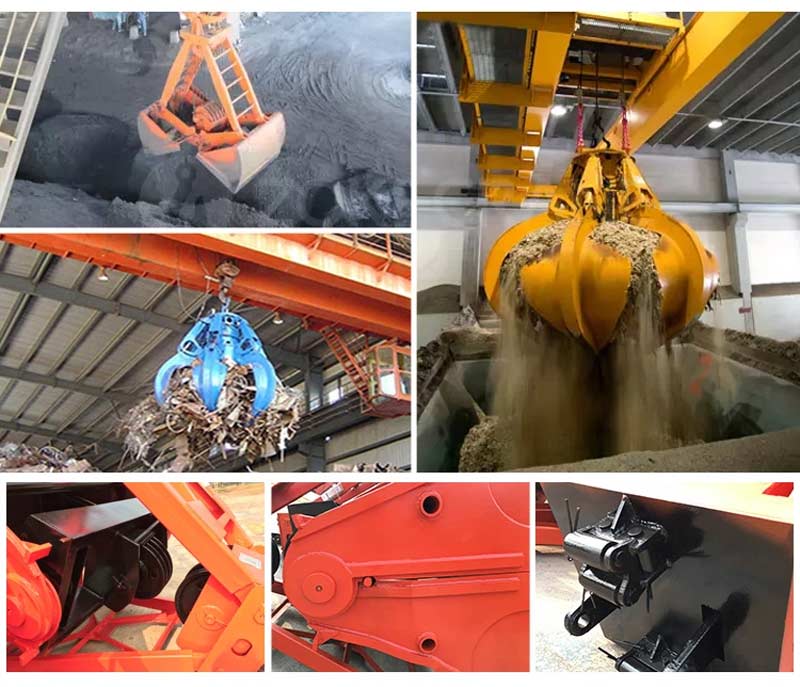

2. Wear-Resistant Crane Grab Bucket: Available in clamshell, orange-peel, and bulk grab designs to match different material properties. The bucket body is made of Mn13 wear-resistant manganese steel, significantly extending service life. The opening/closing mechanism uses a high-torque hydraulic cylinder or planetary reducer for smooth, reliable grabbing action.
3. Precision Frequency Conversion Control: The lifting mechanism features a high-efficiency motor and hard-tooth surface reducer for strong power and stable speed regulation. The bridge and trolley traveling systems use frequency conversion (VFD) for smooth starts/stops, minimizing impact on the crane structure and materials. Anti-derailment devices are standard on all running gears.
4. Advanced PLC Electrical System: Equipped with Siemens/Mitsubishi PLC and a user-friendly HMI for intuitive operation and real-time monitoring. Integrated safety functions include overload protection, finecorsa, arresto di emergenza, and fault diagnosis—enhancing overall safety and equipment reliability. Optional wireless remote control allows operators to work from a safe distance.

Grab Bucket Overhead Crane Technical Specifications

Gru a ponte con benna

Parametro	Specifiche
Capacità di sollevamento nominale	5-50 T
Durata	10-30 M
Altezza di sollevamento	6-20 M
Velocità di sollevamento	0.8-10 m/mio (VFD adjustable)
Velocità di viaggio del carrello	5-30 m/mio
Crane Traveling Speed	10-45 m/mio
Classe operaia	A5-A7
Alimentazione elettrica	380V/50Hz/3Ph (customizable for global markets)

Top Applications of Grab Bucket Overhead Cranes

Gru a ponte con benna

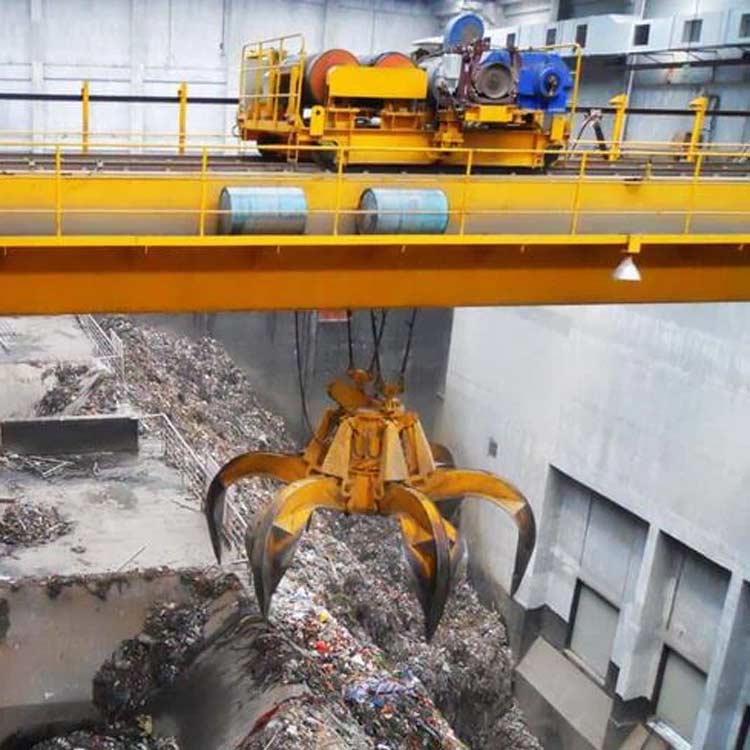

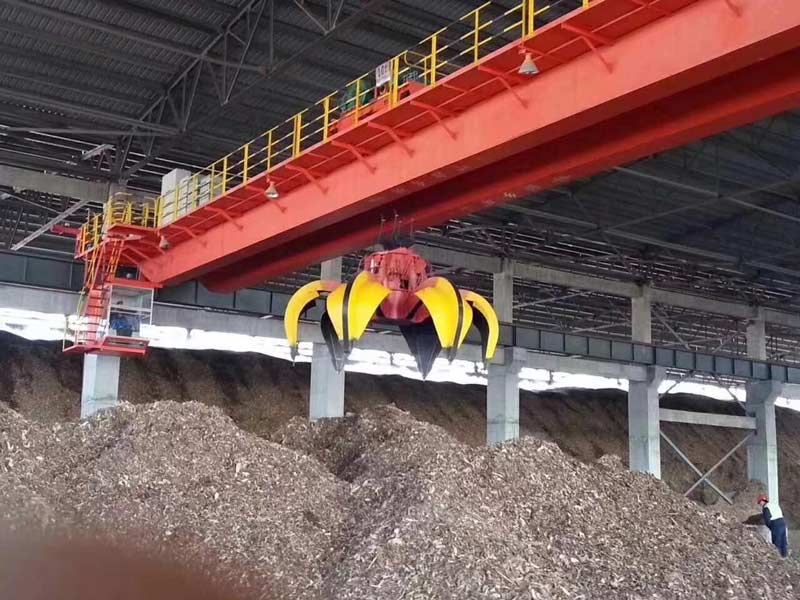

Grab bucket overhead cranes are versatile and widely used across industries that handle bulk materials. Common applications include:

1. Estrazione mineraria & Lavorazione dei minerali: Loading/unloading ore, coal, and minerals in mines and beneficiation plants.
2. Generazione di energia: Handling coal in thermal power plant coal yards and feeding boilers.
3. Porti & Terminali: Transferring bulk cargo (grano, fertilizer, cement) between ships, treni, and warehouses.
4. Costruzione: Moving sand, ghiaia, and concrete aggregates at construction sites.
5. Metallurgy: Handling iron ore, coke, and scrap metal in steel mills.
6. Chemical Industry: Transporting non-corrosive bulk chemicals (with optional anti-corrosion upgrades).

Why Choose Our Grab Bucket Overhead Crane?

Our grab bucket overhead crane boosts material handling speed by up to 50% compared to manual operations, riducendo i tempi di inattività e aumentando la produttività.

1. Cost-Saving Design: Durable components minimize maintenance costs, while labor reduction and material loss prevention deliver long-term ROI.
2. Customizable for Your Needs: Choose from various grab bucket types and tailor specifications (arco, altezza di sollevamento, capacità) to match your unique workflow.
3. Industrial-Grade Safety: Multiple protection systems (sovraccarico, limit, arresto di emergenza) ensure compliance with global safety standards (Iso, Ce).
4. Easy to Operate & Maintain: Intuitive PLC control and modular design simplify operation and reduce repair time.

Sicurezza & Compliance for Grab Bucket Overhead Cranes

Gru a ponte con benna

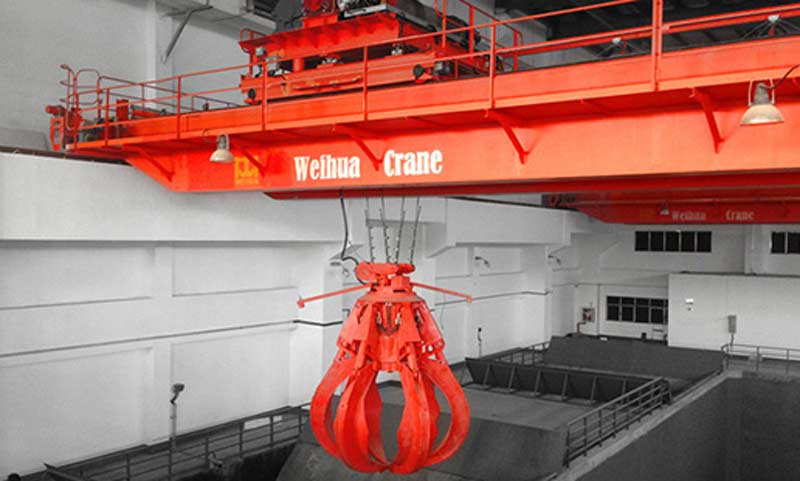

Safety is paramount in our crane design. Our grab bucket overhead crane meets international safety standards with:

1. Limitatore di sovraccarico: Automatically cuts lifting power when loads exceed rated capacity.
2. Travel Limit Switches: Prevents overtravel of the bridge, carrello, e paranco.
3. Emergency Stop Function: Accessible buttons on the crane and remote control for immediate shutdown.
4. Weatherproof Electricals: IP54-rated electrical components for dust and water resistance.
5. Safety Locks: Grab bucket safety locks prevent accidental opening during lifting.

After-Sales Support for Your Grab Bucket Overhead Crane

We provide end-to-end support to keep your grab bucket overhead crane running smoothly:

1. On-Site Installation & Messa in servizio: Professional technicians ensure proper setup and calibration.
2. Operator Training: Hands-on training for safe and efficient crane operation.
3. 12-Month Warranty: Covers manufacturing defects (excluding wear parts) with free part replacement.
4. Global Spare Parts Supply: Fast delivery of genuine spare parts to minimize downtime.
5. Preventive Maintenance: Customized maintenance plans to extend crane lifespan.

What is A Grab Bucket Used For?

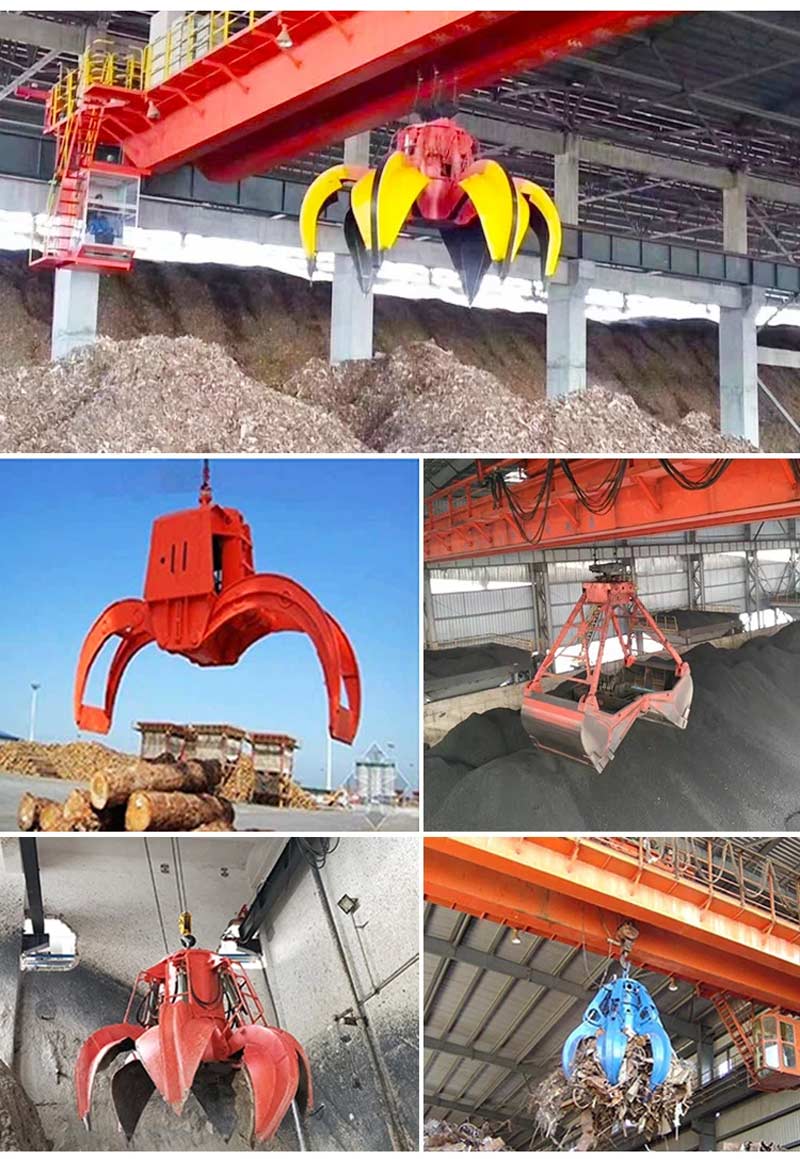

A grab bucket is a specialized attachment designed for efficiently grabbing, holding, and releasing bulk materials. It works in tandem with equipment like gru a ponte to streamline material handling processes across various industries. Its key function is to securely grip different types of bulk goods—such as coal, ore, grano, sand, ghiaia, and non-corrosive chemicals—eliminating the need for manual loading or unloading. Different grab bucket designs (clamshell, orange-peel, bulk grab) are tailored to specific material properties: clamshell grabs excel at fine or powdery materials, orange-peel grabs handle irregular items like scrap metal, and bulk grabs are ideal for dense, heavy materials. By providing a reliable and efficient way to move large quantities of bulk materials, grab buckets significantly boost operational productivity and reduce labor intensity.
