15 carroponte da tonnellata

Sommario Spettacolo

Panoramica del prodotto

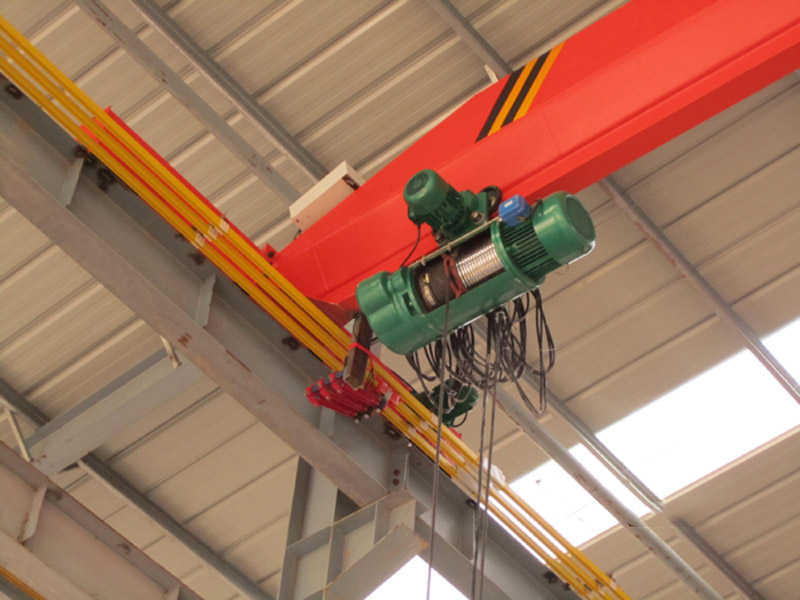

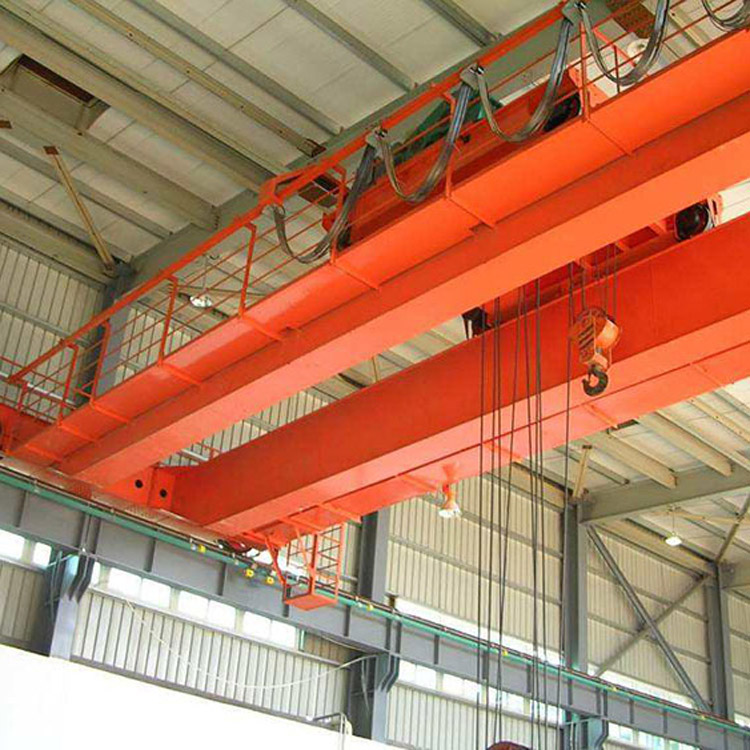

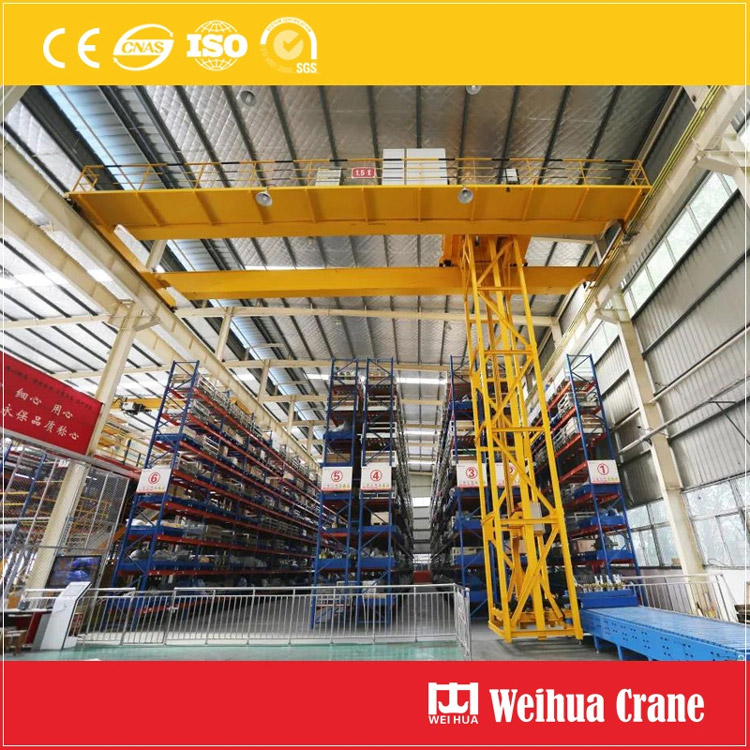

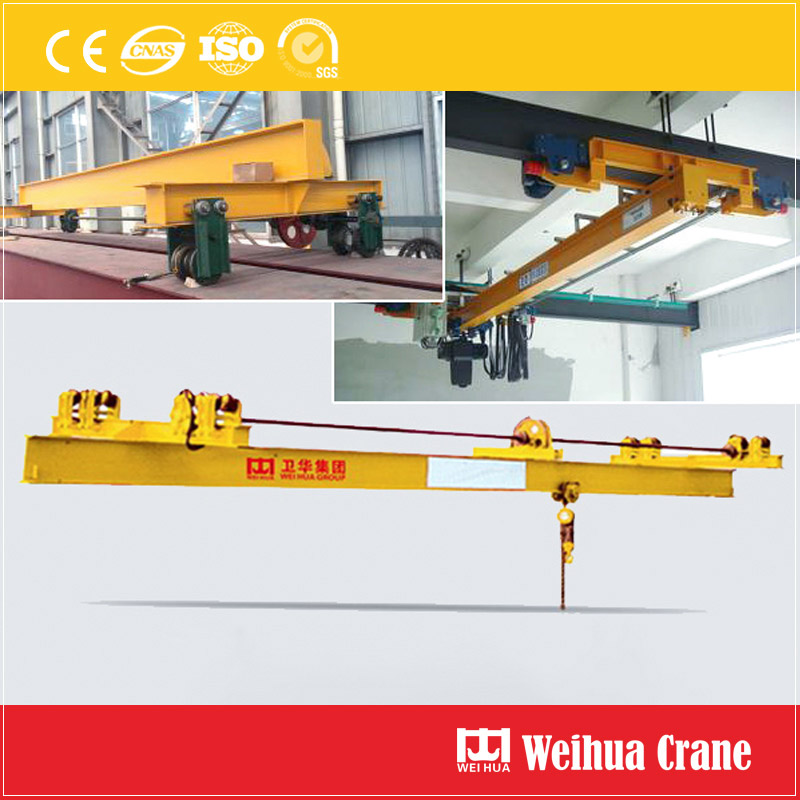

15 carroponte da tonnellata

IL 15 Ton Overhead Crane is a robust and high-performance material handling equipment designed for heavy-duty industrial operations. Engineered to lift and transport loads up to 15 tons with precision and efficiency, it serves as a critical asset in manufacturing plants, magazzini, porti, e cantieri. Adhering to international quality standards (Iso, Ce), Questo carroponte combines durability, sicurezza, and operational flexibility to optimize workflow and reduce labor intensity.

15 Ton Overhead Crane Core Technical Specifications

Parametro	Specifiche
Capacità nominale	15 Tonnellata (15,000 kg)
Intervallo di portata	10m – 30 m (Customizable to meet site-specific requirements)
Altezza di sollevamento	6m – 20m (Extended heights available via custom engineering)
Velocità di sollevamento	0.5m/min – 10m/min (Dual-speed configuration optional for precision/efficiency)
Velocità di viaggio del carrello	10m/min – 30m/min (Variable frequency drive (VFD) compatible for smooth control)
Crane Travel Speed	20m/min – 50m/min (VFD-supported for stepless acceleration/deceleration)
Classe operaia	A5-A7 (Suitable for intermittent to continuous heavy-load cycles)
Alimentazione elettrica	380V/400V, 3-Fase, 50/60Hz (Custom voltage/frequency options available globally)
Modalità di controllo	Standard Pendant Control; Telecomando senza fili (Opzionale, 100m operating range)
Materiale	Trave principale: Q235B/Q355B High-Strength Structural Steel; Gancio della gru: Acciaio in lega forgiato (Heat-Treated)

15 Ton Overhead Crane Key Features

1. Superior Load-Bearing Capacity: Constructed with high-quality structural steel, the main beam and end beams feature a box-type design for enhanced rigidity and load distribution, ensuring stable operation under full-load conditions.
2. Efficient Lifting Performance: Equipped with a high-torque motor and precision gearbox, the crane delivers smooth lifting and traversing movements, minimizing load sway and improving work efficiency.
3. Protezione di sicurezza completa: Integrated safety features include overload protection (limit switch), lifting height limit, travel limit, pulsante di arresto di emergenza, and anti-derailment devices, complying with global safety regulations to protect personnel and equipment.
4. Energy-Saving Design: Adopts frequency conversion (VFD) technology for stepless speed regulation, reducing energy consumption and mechanical wear, while extending the service life of key components.
5. Easy Operation & Manutenzione: Ergonomic pendant or wireless remote control allows for convenient operation from a safe distance; modular design simplifies maintenance, with accessible components and clear maintenance guidelines.
6. Configurazioni personalizzabili: Durata, altezza di sollevamento, control mode, and additional accessories (ad esempio benne per gru, electromagnetic suckers) can be customized to meet specific application requirements.

15 Ton Overhead Crane Application Scenarios

Ideal for heavy-duty material handling in:

1. Impianti di produzione (Automobilistico, Machinery, Steel Production)
2. Magazzini & Logistics Centers (Container Handling, Cargo Loading/Unloading)
3. Porti & Docks (Shipment Handling, Bulk Material Transport)
4. Cantieri edili (Precast Component Installation, Heavy Equipment Movement)
5. Metallurgical & Mining Industries (Metal Scrap Handling, Ore Transport)

Garanzia di qualità & Servizio post-vendita

1. All cranes undergo strict quality inspections (Test di carico, performance testing) before delivery.
2. 12-month warranty on main components (motore, cambio, crane structure) with lifelong technical support.
3. Professional team provides on-site installation, messa in servizio, and operator training services.
4. Spare parts supply with fast delivery to minimize downtime.

Perché scegliere il nostro 15 Tonnellata di gru a ponte?

1. Proven reliability in harsh industrial environments with a long service life.
2. High cost-performance ratio, balancing advanced technology and competitive pricing.
3. Compliance with international standards (Iso 9001, Ce, GB/T) for global market access.
4. Customized solutions tailored to your specific workflow and space constraints.
5. Dedicated customer service team available 24/7 to address inquiries and support needs.
