15 ton overhead crane

Daftar isi Menunjukkan

Ikhtisar Produk

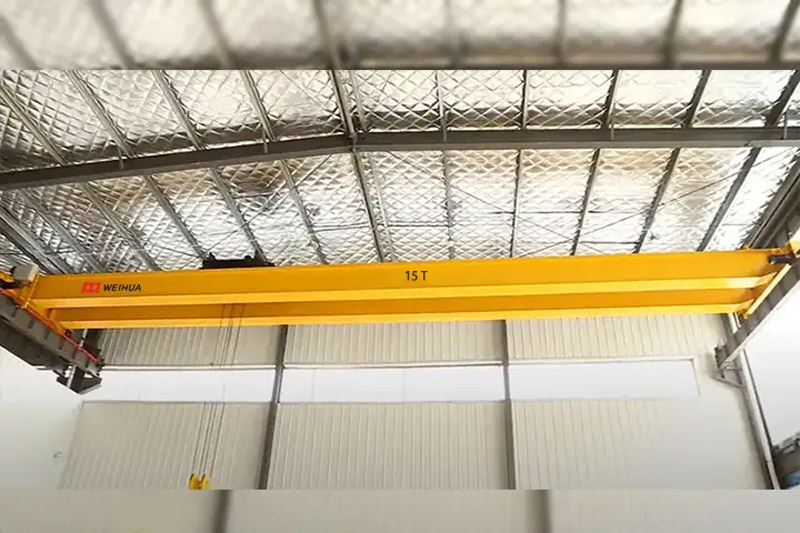

15 ton overhead crane

Itu 15 Ton Overhead Crane is a robust and high-performance material handling equipment designed for heavy-duty industrial operations. Engineered to lift and transport loads up to 15 ton dengan presisi dan efisiensi, it serves as a critical asset in manufacturing plants, gudang, Ports, dan lokasi konstruksi. Adhering to international quality standards (Iso, Ce), ini derek di atas kepala combines durability, keamanan, and operational flexibility to optimize workflow and reduce labor intensity.

15 Ton Overhead Crane Core Technical Specifications

Parameter	Spesifikasi
Kapasitas Dinilai	15 Ton (15,000 kg)
Rentang Rentang	10m – 30m (Customizable to meet site-specific requirements)
Tinggi pengangkat	6m – 20m (Extended heights available via custom engineering)
Kecepatan pengangkat	0.5m/min – 10m/min (Dual-speed configuration optional for precision/efficiency)
Kecepatan Perjalanan Troli	10m/menit – 30m/menit (Variable frequency drive (PKS) compatible for smooth control)
Crane Travel Speed	20m/min – 50m/min (VFD-supported for stepless acceleration/deceleration)
Kelas pekerja	A5 – A7 (Suitable for intermittent to continuous heavy-load cycles)
Catu daya	380V/400V, 3-Fase, 50/60Hz (Custom voltage/frequency options available globally)
Mode kontrol	Standard Pendant Control; Kendali Jarak Jauh Nirkabel (Opsional, 100m operating range)
Bahan	Balok Utama: Q235B/Q355B High-Strength Structural Steel; Crane hook: Baja paduan palsu (Heat-Treated)

15 Ton Overhead Crane Key Features

1. Kapasitas Penahan Beban yang Unggul: Constructed with high-quality structural steel, the main beam and end beams feature a box-type design for enhanced rigidity and load distribution, ensuring stable operation under full-load conditions.
2. Efficient Lifting Performance: Equipped with a high-torque motor and precision gearbox, the crane delivers smooth lifting and traversing movements, minimizing load sway and improving work efficiency.
3. Comprehensive Safety Protection: Integrated safety features include overload protection (limit switch), lifting height limit, travel limit, tombol berhenti darurat, and anti-derailment devices, complying with global safety regulations to protect personnel and equipment.
4. Energy-Saving Design: Adopts frequency conversion (PKS) technology for stepless speed regulation, reducing energy consumption and mechanical wear, while extending the service life of key components.
5. Easy Operation & Pemeliharaan: Ergonomic pendant or wireless remote control allows for convenient operation from a safe distance; modular design simplifies maintenance, with accessible components and clear maintenance guidelines.
6. Konfigurasi yang Dapat Disesuaikan: Menjangkau, ketinggian angkat, control mode, and additional accessories (seperti Crane ambil ember, electromagnetic suckers) can be customized to meet specific application requirements.

15 Ton Overhead Crane Application Scenarios

Ideal for heavy-duty material handling in:

1. Pabrik Manufaktur (Otomotif, Machinery, Steel Production)
2. Gudang & Logistics Centers (Penanganan Kontainer, Cargo Loading/Unloading)
3. Ports & Docks (Shipment Handling, Bulk Material Transport)
4. Lokasi Konstruksi (Precast Component Installation, Heavy Equipment Movement)
5. Metallurgical & Mining Industries (Metal Scrap Handling, Ore Transport)

Jaminan kualitas & Layanan purna jual

1. All cranes undergo strict quality inspections (pengujian beban, performance testing) before delivery.
2. 12-month warranty on main components (motor, kotak roda gigi, crane structure) with lifelong technical support.
3. Professional team provides on-site installation, komisioning, and operator training services.
4. Spare parts supply with fast delivery to minimize downtime.

Mengapa Memilih Kami 15 Ton overhead crane?

1. Proven reliability in harsh industrial environments with a long service life.
2. High cost-performance ratio, balancing advanced technology and competitive pricing.
3. Compliance with international standards (Iso 9001, Ce, GB/T) for global market access.
4. Customized solutions tailored to your specific workflow and space constraints.
5. Dedicated customer service team available 24/7 to address inquiries and support needs.
