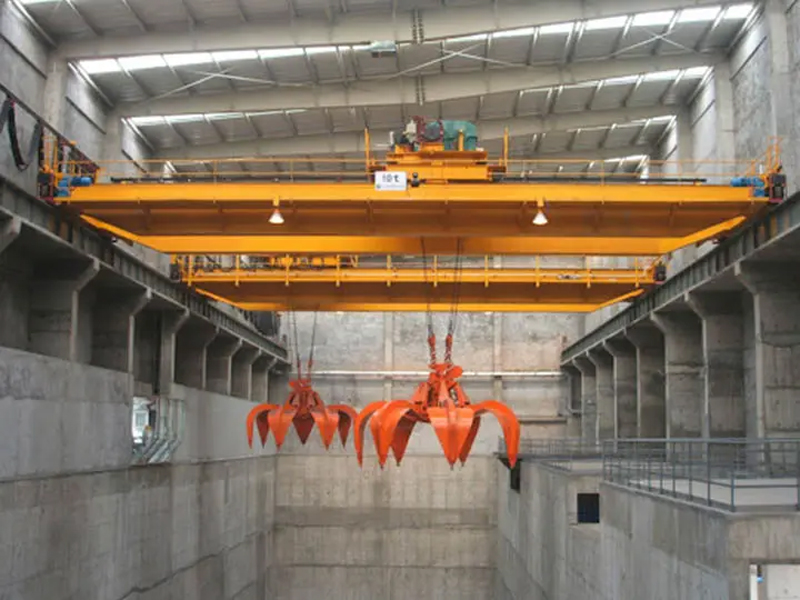

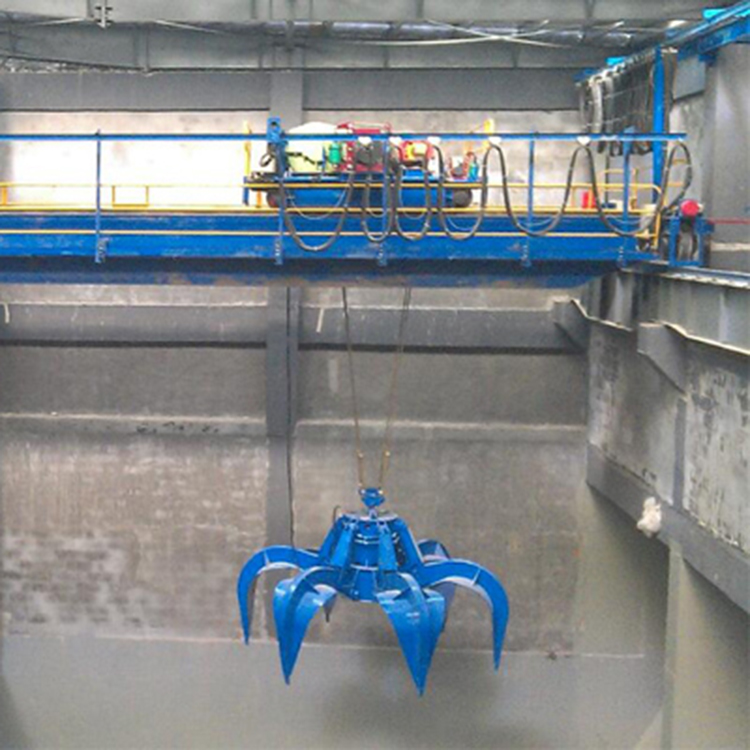

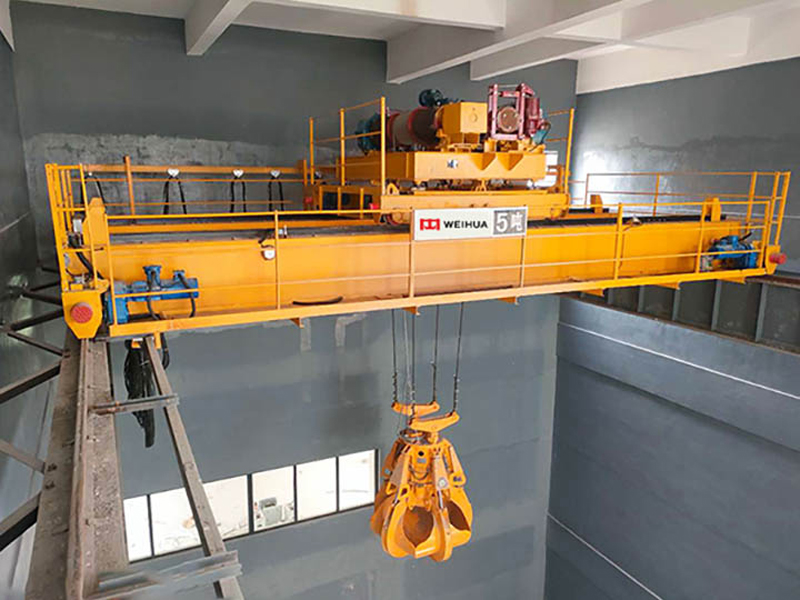

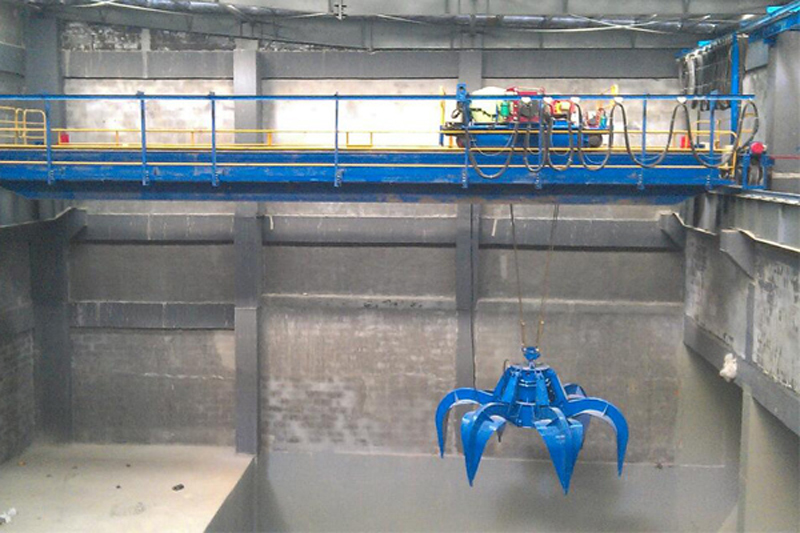

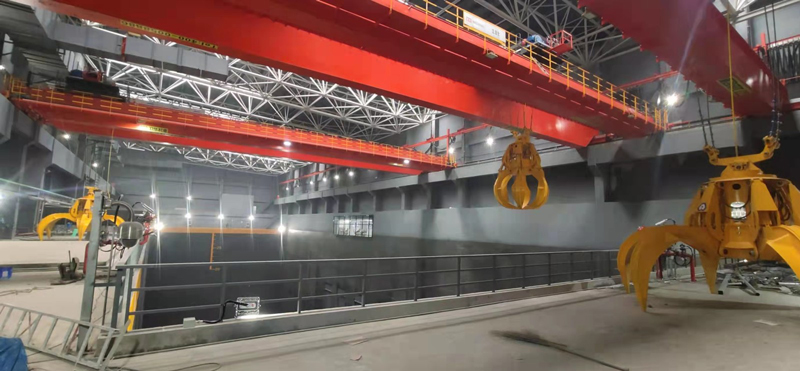

Garbage Grab Bucket Overhead Crane

The garbage grab bucket overhead crane is a specialized material handling equipment designed for efficient, امن, and automated waste management operations. Engineered with heavy-duty components and advanced control systems, this crane is tailored to tackle the unique challenges of garbage handling—including high-density loads, محیط های خورنده, and continuous operation demands. Whether for municipal waste treatment plants, landfill sites, incineration facilities, or industrial waste yards, it delivers reliable performance to optimize waste transfer, sorting, and disposal processes.​

Garbage Grab Bucket Overhead Crane Core Features​

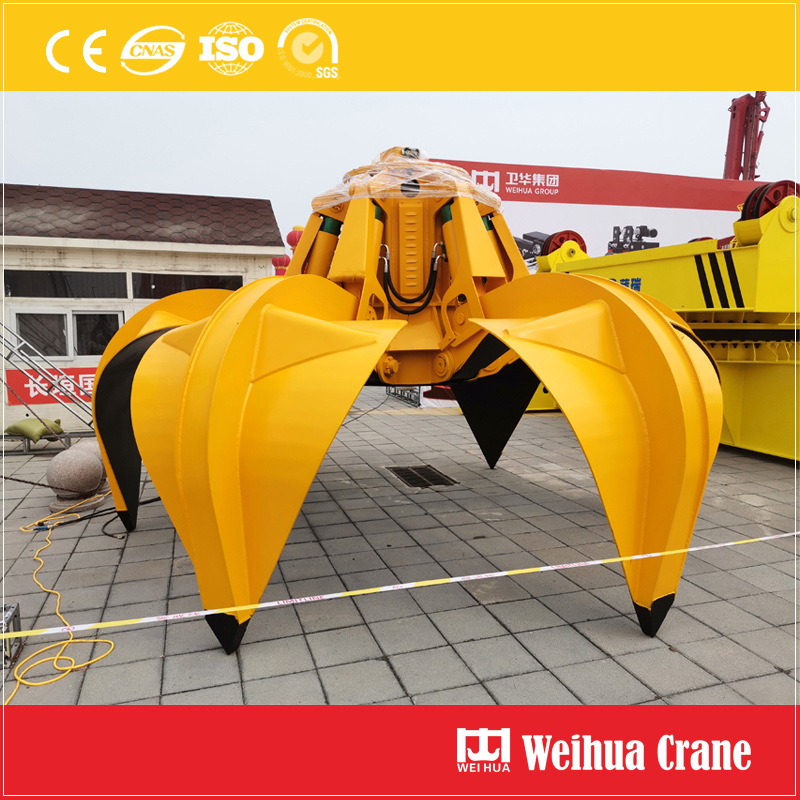

1. Heavy-Duty Grab Bucket Design​

• Equipped with high-strength alloy steel سطل های چنگ زدن به جرثقیل (clamshell or orange-peel type) that offer exceptional wear resistance and corrosion resistance, suitable for handling wet, sticky, or abrasive garbage.​

• Adjustable grab opening and closing speed (0.8-1.5 m/s) ensures precise control over load capacity, preventing spillage and maximizing handling efficiency.​

• Sealed bearing structure and anti-blocking mechanism reduce maintenance frequency and ensure smooth operation even in dusty or debris-filled environments.​

2. Stable & Durable Crane Structure​

• Main beam and end carriages are fabricated with Q355B high-quality steel, undergone shot blasting treatment and anti-corrosion painting (epoxy primer + topcoat) to withstand harsh waste management conditions.​

• Box-type welded structure with reinforced ribs enhances structural rigidity, minimizing deflection during heavy-load operation (deflection ≤ L/1000, L = span length).را

• Low-noise running mechanism (≤75dB) with precision gears and lubrication system ensures quiet operation, complying with environmental protection standards.​

3. Advanced Control System​

• Equipped with PLC programmable logic controller and touch-screen operation panel, supporting manual, semi-automatic, and fully automatic control modes.​

• Anti-sway technology reduces load swing by 80%, improving positioning accuracy (±50mm) and operational safety.​

• دکمه توقف اضطراری, حفاظت از اضافه بار (110% of rated load), and limit switches (بالابر, travel, cross travel) provide multi-layer safety guarantees.​

• Optional remote control (effective distance ≤100m) allows operators to work in a safe, comfortable environment.​

4. Energy-Efficient & Easy Maintenance​

• Adopts high-efficiency motors (IE3 standard) and frequency converters, reducing energy consumption by 15-20% compared to conventional cranes.​

• Modular design simplifies maintenance; key components (موتورها, کاهنده ها, بلبرینگ ها) are easily accessible and interchangeable.​

• Long service life of core parts: grab bucket ≥8,000 working hours, crane structure ≥10 years (under normal use and maintenance).را

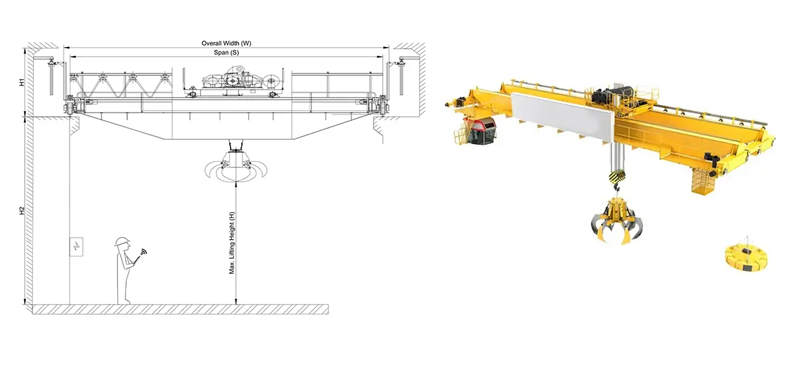

Technical Specifications​

پارامتر	مشخصات
بار دارای امتیاز	5-50 تن
Grab Bucket Capacity	3-30 m³
طول دهانه	10-30 متر (قابل تنظیم)
ارتفاع بلند کردن	8-20 متر (قابل تنظیم)
سرعت بلند کردن	0.5-3 m/my (variable frequency adjustable)
سرعت سفر (Longitudinal)	10-30 m/my
سرعت سفر (Cross)	5-15 m/my
منبع تغذیه	380V/50Hz/3Ph (قابل تنظیم برای مناطق مختلف)
طبقه کارگر	A6-A7 (suitable for continuous heavy-load operations)
دمای عملیاتی	-20℃ to +60℃
کلاس حفاظت	IP54 (موتور), IP65 (control cabinet)
Weight of Crane	8-80 تن (varies by load and span)

Garbage Grab Bucket Overhead Crane Application Scenarios​

1. Municipal Solid Waste (MSW) Treatment Plants​

Ideal for transferring garbage from storage pits to sorting lines, incinerators, or composting facilities. The high-capacity grab bucket efficiently handles large volumes of mixed waste, while the anti-sway control ensures precise feeding into processing equipment.​

2. Landfill Sites​

Used for waste compaction, stockpiling, and transfer. The corrosion-resistant grab bucket and durable structure withstand the humid, corrosive environment of landfills, reducing equipment failure and maintenance costs.​

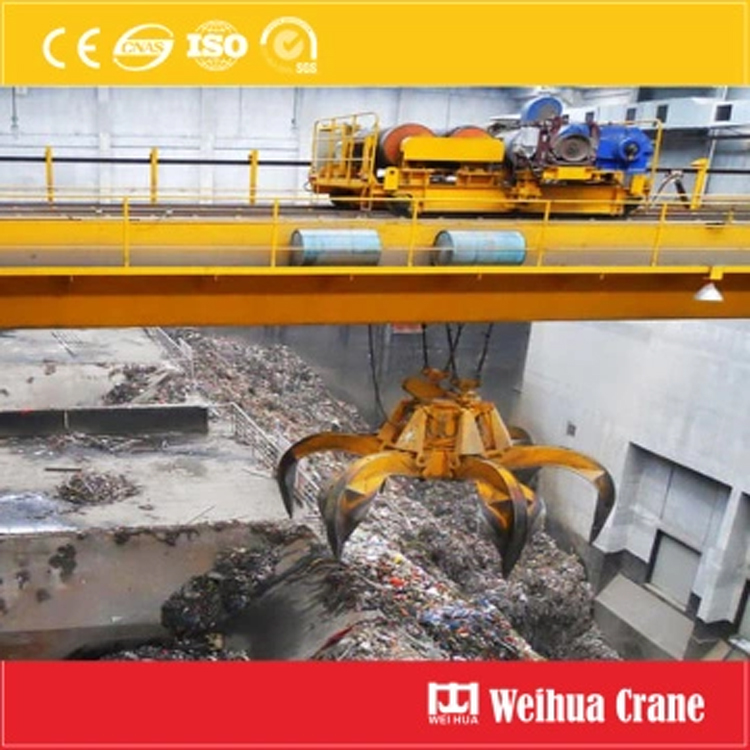

3. Waste Incineration Plants​

Facilitates continuous feeding of garbage into incinerators, matching the high-temperature, high-demand operation of incineration systems. The fully automatic control mode enables seamless integration with the plant’s production line, improving operational efficiency.​

4. Industrial Waste Yards​

Suitable for handling industrial solid waste (به عنوان مثال, scrap metal, chemical waste, construction waste). The adjustable grab bucket design adapts to different waste types, ensuring safe and efficient handling without contamination.​

5. Recycling Facilities​

Aids in sorting and transferring recyclable materials (به عنوان مثال, paper, plastic, metal) from waste streams. The precise control system allows gentle handling of fragile recyclables, minimizing damage and maximizing recycling rates.​

Why Choose Our Garbage Grab Bucket Overhead Crane?را

• 1. سفارشی سازی: Tailor-made solutions based on your specific load capacity, دهانه, ارتفاع بلند کردن, and application requirements.​
• 2. قابلیت اطمینان: Rigorous quality control (ISO9001 certified) and strict testing before delivery ensure stable performance in harsh environments.​
• 3. سرویس پس از فروش: 24/7 پشتیبانی فنی, on-site installation guidance, and regular maintenance training to maximize equipment uptime.​
• 4. Cost-Effectiveness: Energy-efficient design and long service life reduce total ownership costs, delivering higher return on investment.​

Contact us today to learn more about our garbage grab bucket overhead crane and get a personalized quote!
