جرثقیل سقفی چگونه کار می کند?

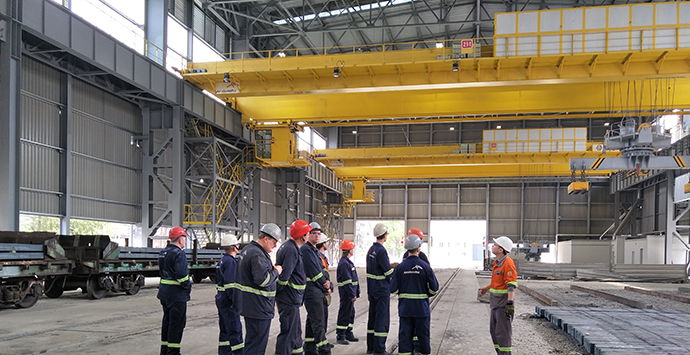

If you’ve ever stepped into a manufacturing plant, انبار, or shipping yard, you’ve likely spotted a large, horizontal machine gliding above the workspace—this is an جرثقیل سقفی. Also known as bridge cranes, these industrial workhorses play a crucial role in lifting, در حال حرکت, and positioning heavy loads that would be impossible for human labor or smaller equipment to handle. But have you ever wondered exactly how they operate? Let’s break down the mechanics, key components, and working principles of an overhead crane in simple terms.

The Core Components of an Overhead Crane

To understand how an overhead crane works, it’s essential to first familiarize yourself with its main parts. Every overhead crane has four fundamental components that work together seamlessly:

• Bridge/Girder: This is the horizontal beam (or pair of beams) that spans the width of the workspace—think of it as the “bridge” that connects the two runways. It’s the main structural backbone of the crane, designed to support the weight of the load and the other moving parts.
• ریل باند: These are the fixed rails mounted on elevated structures (like columns or the building’s walls) along the length of the workspace. The bridge travels back and forth along these rails, allowing the crane to cover the entire length of the area.
• چرخ دستی: The trolley is a small, wheeled unit that moves along the bridge’s own rails (running perpendicular to the runway rails). This movement lets the crane cover the width of the workspace. Attached to the trolley is the hoist—the part that does the actual lifting.
• بالابر: The hoist is the lifting mechanism itself, consisting of a motor, a drum or chain wheel, and a cable or chain with a قلاب at the end. It’s responsible for raising and lowering the load.
• سیستم کنترل: This is how the operator commands the crane—either via a pendant control (یک دستگاه دستی با دکمه), یک کنترل از راه دور, or an operator cab mounted on the bridge or trolley. The control system sends signals to the motors that power the bridge, واگن برقی, و بالابر.

The Step-by-Step Working Process

1. Positioning the Crane (Bridge Movement)

اول, the operator uses the control system to move the bridge along the runway rails. This adjusts the crane’s position along the length of the workspace. به عنوان مثال, if the load is at the far end of the warehouse, the operator will drive the bridge to that location. The bridge is powered by electric motors that turn wheels, which roll smoothly along the runway rails (often with bearings to reduce friction).

2. Aligning the Trolley

Once the bridge is in the right longitudinal position, the operator moves the trolley along the bridge’s rails. This fine-tunes the position of the hoist so that its hook is directly above the load. This alignment is critical—lifting a load that’s off-center can cause the crane to tip or the load to swing dangerously.

3. بلند کردن بار (Hoist Operation)

With the hook aligned, the operator activates the hoist. The hoist’s motor drives a drum (for cables) or a chain wheel (for chains). As the motor turns, the cable or chain is wound around the drum or wheel, lifting the load off the ground. Most hoists have a gear system that amplifies the motor’s force, allowing them to lift extremely heavy loads (some overhead cranes can lift hundreds of tons!).

To lower the load, the motor reverses, unwinding the cable or chain at a controlled speed. Modern cranes have braking systems (like electromagnetic brakes) that prevent the load from dropping accidentally if there’s a power outage or mechanical failure.

4. Moving the Load to the Target Location

Once the load is lifted to a safe height (clear of any obstacles), the operator moves it by combining bridge and trolley movements. به عنوان مثال, to move the load from one corner of the warehouse to another, the operator might move the bridge forward while sliding the trolley to the side. The key here is smooth, gradual movements—sudden starts or stops can cause the load to swing, which is unsafe and hard to control.

5. Lowering and Placing the Load

When the load reaches the target position, the operator carefully lowers it using the hoist. They’ll slow down as the load approaches the desired height (به عنوان مثال, a pallet rack, a truck bed, or a workbench) to ensure precise placement. Once the load is securely set down, the hook is unlatched, and the operator can move the crane back to its resting position or prepare for the next lift.

Key Safety and Control Features

Overhead cranes aren’t just about lifting—they’re also designed with safety in mind, which is integrated into their working principle:

• 1. سوئیچ های محدود: These are sensors that stop the bridge, واگن برقی, or hoist when they reach the end of their travel range, preventing collisions or overextension.
• 2. Load Limiters: These devices detect if the load exceeds the crane’s maximum capacity and shut down the hoist to avoid structural damage or collapse.
• 3. Anti-Sway Controls: Many modern cranes have systems that automatically reduce load swing, making movements smoother and safer.
• 4. Emergency Stop Buttons: A quick-access button that cuts power to all crane movements in case of an emergency.

Why Overhead Cranes Are So Essential

The beauty of overhead cranes lies in their ability to cover a large workspace (they can move loads in three dimensions: up/down, left/right, forward/backward) while keeping the floor clear of obstacles. Unlike forklifts or other ground-based equipment, they don’t take up valuable floor space, making them ideal for busy facilities. Their precision and lifting power also make them indispensable in industries like manufacturing (moving heavy machinery parts), ساخت و ساز (lifting steel beams), حمل (loading/unloading containers), and automotive (assembling vehicles).

Wrapping Up

In short, an overhead crane works by combining the movement of three main components—bridge, واگن برقی, and hoist—controlled by an operator to lift and move heavy loads with precision. Every part, from the sturdy bridge to the reliable hoist and safety features, plays a vital role in ensuring efficient, safe operation. Next time you see one in action, you’ll know exactly what’s happening behind the scenes!
