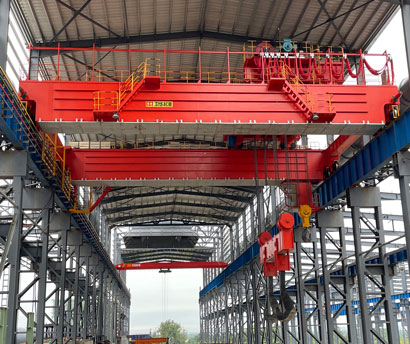

Grúa aérea de dos vigas

Introduction to Double Girder Overhead Cranes

A double girder overhead crane is a robust material handling equipment designed to lift and transport heavy loads in industrial settings. Engineered with two parallel main girders, it delivers superior stability and load-bearing capacity compared to single girder models, making it the go-to choice for heavy-duty applications such as steel mills, plantas de fabricación, almacenes, y sitios de construcción. Whether you need to move machinery, materias primas, o productos terminados, our double girder overhead cranes combine precision, durabilidad, and safety to optimize your workflow.

What is a Double Girder Overhead Crane?

A double girder overhead crane is a type of bridge crane consisting of two horizontal main girders supported by end trucks (or end carriages) that run along elevated rails (runways) mounted on building columns or standalone structures. The crane’s lifting mechanism—typically a hoist or trolley—is mounted on a trolley that travels along the length of the main girders, allowing 360° coverage of the workspace below.

A diferencia de puentes grúa monorraíl, which rely on a single main beam, double girder designs distribute weight more evenly, enabling them to handle much heavier loads (often up to 500 tons or more). This makes them essential for industries requiring frequent heavy lifting, where reliability and safety are non-negotiable.

Key Features of Double Girder Overhead Cranes

Our double girder overhead cranes are built to excel in demanding environments. Here are their standout features:

• 1. Alta capacidad de carga: Designed to handle heavy loads from 10 toneladas hasta 500 montones, making them ideal for heavy-industry applications.
• 2. Estabilidad superior: Two main girders distribute weight evenly, reducing sway and ensuring stable operation even with maximum loads.
• 3. Extended Span Options: Available with spans from 10 metros a 35 medidores, adaptable to large workspaces like warehouses or factory floors.
• 4. Control de precisión: Equipped with advanced hoisting and trolley mechanisms for smooth, accurate positioning of loads—critical for delicate or high-value materials.
• 5. Construcción duradera: Made from high-strength steel with anti-corrosion coatings, ensuring long-term performance in harsh conditions (P.EJ., altas temperaturas, polvo, or moisture).
• 6. Seguridad mejorada: Las características de seguridad integradas incluyen protección contra sobrecargas, botones de parada de emergencia, interruptores de límite, y dispositivos anticolisión para prevenir accidentes.
• 7. Diseño personalizable: Can be tailored with optional extras like remote control, frequency inverters for variable speed, or specialized hooks for unique load types (P.EJ., bobinas, contenedores).

Especificaciones técnicas

Structure of a Double Girder Overhead Crane

A double girder overhead crane consists of several key components working together to ensure efficient lifting and movement:

1. vigas principales

vigas principales

Two parallel steel beams (girders) that form the bridge structure. They bear the load of the trolley and the lifted material, requiring high strength and rigidity.

2. Camiones finales (Carros finales)

Camiones finales

Mounted at both ends of the main girders, these house the wheels and motors that drive the crane along the runway rails.

3. Carretilla

Carretilla

A movable unit that travels along the top or bottom of the main girders. It carries the hoist and is powered by its own motor for horizontal movement.

4. Izar

Izar

The lifting mechanism, including a crane drum, wire rope/cable, y gancho. It is responsible for raising and lowering loads, with options for electric or hydraulic operation.

5. Sistema eléctrico

Sistema eléctrico

Includes motors, paneles de control, switches, and wiring to power and operate the crane, carretilla, y izar.

6. Dispositivos de seguridad

Limitador de altura de elevación

Overload limiters, interruptores de límite de viaje, sistemas de parada de emergencia, and anti-sway devices to ensure safe operation.

Preguntas frecuentes: Grúa aérea de dos vigas

Q1: What’s the difference between a double girder and single girder overhead crane?

A: Double girder cranes have two main girders, offering higher load capacity (10+ montones) y estabilidad, making them suitable for heavy-duty use. Single girder cranes have one main girder, son más ligeros, and better for lighter loads (arriba a 10 montones) in smaller workspaces.

Q2: Which industries use double girder overhead cranes?

A: They are widely used in steel mills, automotive manufacturing, astilleros, sitios de construcción, almacenes (for heavy pallet handling), and power plants.

Q3: How often should a double girder overhead crane be maintained?

A: Inspecciones de rutina (daily checks for wear, lubricación) and professional maintenance (every 6–12 months) are recommended to ensure safety and longevity.

Q4: Can double girder cranes be customized for specific applications?

A: Sí. We offer customizations for load capacity, durar, altura de elevación, sistemas de control, and specialized attachments (P.EJ., magnets for metal handling, grabs for bulk materials).

Q5: Are double girder overhead cranes compliant with international safety standards?

A: Our cranes meet ISO, Femenado, and OSHA standards, with built-in safety features to ensure compliance with global industrial regulations.

Ready to Elevate Your Lifting Operations?
