30 Tons Gantry Crane Series: RTG & RMG Heavy Lifting Solutions

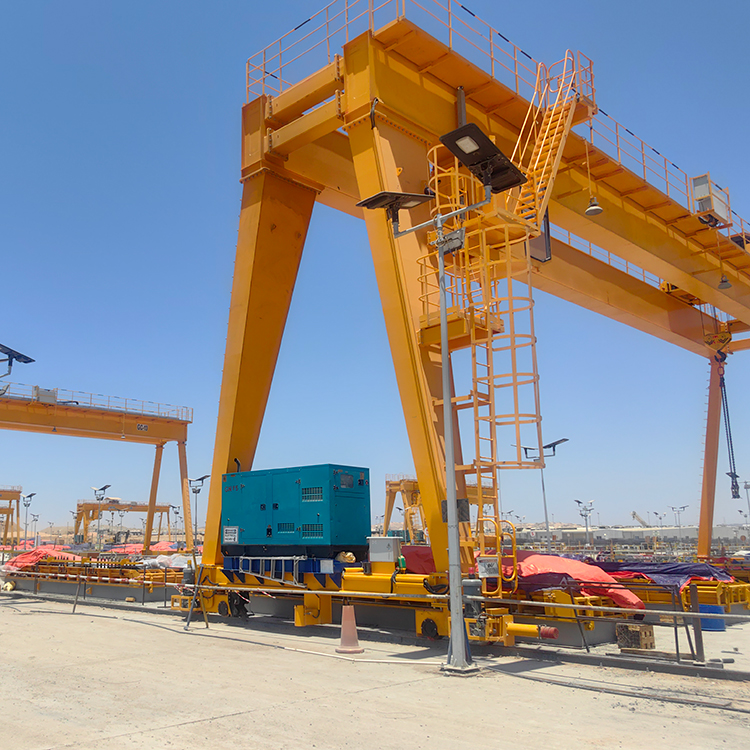

30 Tuny portálového jeřábu (General Type)

30 Tuny portálového jeřábu (General Type)

Introduction

The 30 tons gantry crane is a versatile heavy-duty lifting equipment widely used in industrial and logistics fields. It is designed to safely and efficiently handle loads up to 30 tuny, serving as a core tool in ports, ocelárny, loděnice, staveniště, and large-scale warehouses. With a modular design and customizable configurations, this gantry crane adapts to both indoor and outdoor working environments, providing stable and reliable lifting performance to meet diverse operational needs.

30 Tons Gantry Crane Key Features

• 1. Robust Structure: Adopts high-strength Q235B steel for the main girder (single or double girder optional), ensuring strong load-bearing capacity and resistance to deformation under heavy-duty operations. The overall structure is optimized through finite element analysis to reduce self-weight while enhancing stability.
• 2. Precise Control: Equipped with PLC control system and variable frequency drive (VFD) technology, enabling smooth and stepless adjustment of lifting, traversing, and traveling speeds. This minimizes load sway, improves operation accuracy, and reduces damage to goods.
• 3. Komplexní bezpečnostní ochrana: Integrated with multiple safety devices, včetně ochrany proti přetížení, lifting height limit switch, traveling limit switch, anti-collision device, tlačítko nouzového zastavení, and windproof system (rail clamps, wind anchors for outdoor use), ensuring the safety of operators, zařízení, and cargo.
• 4. High Versatility: Customizable lifting height, rozpětí, and working speed to fit different site dimensions and operational requirements. Suitable for lifting various heavy goods such as containers, ocelové nosníky, machinery parts, and bulk materials.

30 Tons Gantry Crane Technical Parameters

30 Tunový RTG jeřáb (Portálový jeřáb s gumovými pneumatikami)

30 Tunový RTG jeřáb (Portálový jeřáb s gumovými pneumatikami)

Introduction

The 30 tons RTG (Portál s gumovými pneumatikami) crane is a mobile variant of the 30 tun portálového jeřábu, characterized by its rubber tire-mounted design that eliminates the need for fixed rails. It is specifically developed for flexible yard operations, widely applied in port container terminals, multi-modal logistics hubs, and large outdoor yards. This crane offers high mobility, allowing free movement between different work areas to handle container stacking, loading, and unloading tasks efficiently.

30 Tons RTG Crane Key Features

• 1. Flexible Mobility: Equipped with high-quality rubber tires (tire grounding pressure ≤0.8MPa) and a steering system, enabling 360° rotation and a minimum turning radius of ≤15m. It can move freely on flat concrete or asphalt surfaces without track constraints, adapting to temporary or changing yard layouts.
• 2. Multiple Power Options: Available with diesel generator, cable reel, or lithium battery power supply, ensuring reliable operation in areas with or without grid power. The lithium battery variant is energy-saving and environmentally friendly, reducing noise and emissions.
• 3. Efficient Container Handling: Supports single lifting of 20-foot, 40-foot, and 45-foot containers, with a maximum lifting height of up to 32m (přizpůsobitelné). It can stack containers 5+1 nebo 6+1 high, maximizing yard storage space utilization.
• 4. Intelligent Operation: Optional remote control and semi-automatic operation systems reduce labor intensity and improve work efficiency. The full digital AC frequency conversion system ensures smooth movement and precise positioning of the crane.
• 5. Windproof & Stabilní: Equipped with wheel edge brakes and manual wind anchors to enhance wind resistance, ensuring stable operation even in windy outdoor environments. The anti-skid tires further improve stability on uneven surfaces.

30 Tons RTG Crane Technical Parameters

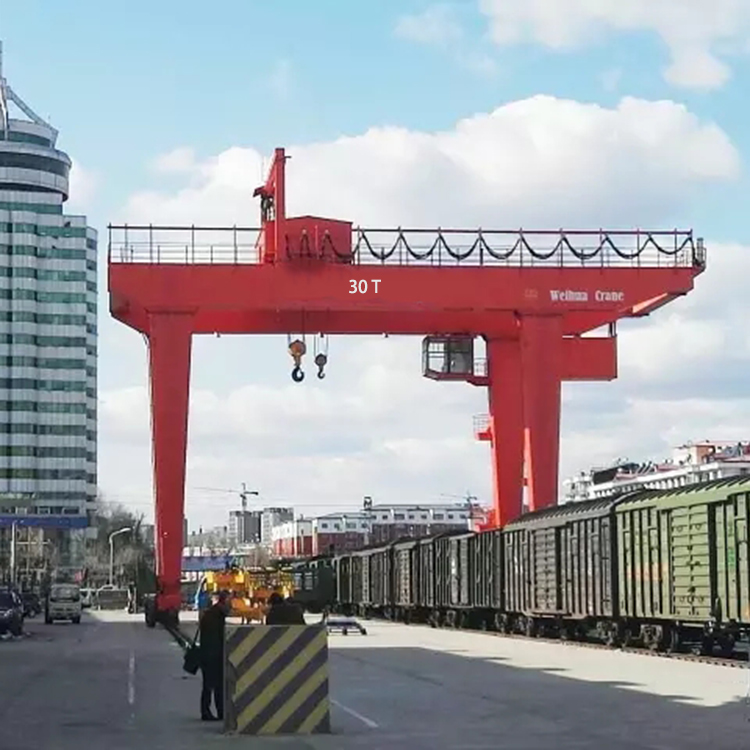

30 Tons RMG Crane (Portálový jeřáb na kolejnici)

30 Tons RMG Crane (Portálový jeřáb na kolejnici)

Introduction

The 30 tons RMG (Rail Mounted Gantry) crane is a fixed-track variant of the 30 tun portálového jeřábu, designed for high-precision and high-efficiency lifting operations in fixed-layout yards and terminals. It operates along pre-installed rail tracks, ensuring stable and precise movement, making it ideal for large-scale container terminals, automated warehouses, and industrial workshops where consistent and efficient handling is required.

30 Tons RMG Crane Key Features

• 1. High Stability & Přesnost: Operates on fixed rail tracks (rail gauge customizable from 18m to 35m), minimizing vibration during lifting and traveling. This ensures precise positioning of loads, reducing the risk of cargo damage and improving operation efficiency.
• 2. Large Working Range: The rail-mounted design allows the crane to cover a wide working area along the track, suitable for long-distance and high-volume lifting tasks. It can be equipped with a telescopic girder to further expand the working coverage.
• 3. Energy-Saving & Šetrné k životnímu prostředí: Adopts grid power supply with a high-efficiency motor and VFD technology, reducing energy consumption and emissions compared to diesel-powered cranes. The closed electrical control system ensures low noise and stable operation.
• 4. Automated Compatibility: Easily integrated with automated control systems (such as PLC, SCADA, and IoT) to realize fully automated operation, including automatic positioning, loading, vykládání, a stohování. This significantly reduces labor costs and improves operational safety.
• 5. Durable & Nízká údržba: The rail and wheel system is wear-resistant and requires minimal maintenance. The overall structure is corrosion-resistant, suitable for long-term outdoor operation in harsh environments such as coastal ports.

30 Tons RMG Crane Technical Parameters

Applications of 30 Tons Gantry Crane Series

• 1. Port and Container Terminals: Indispensable for container loading, vykládání, and stacking operations, with the 30 tons RTG crane for flexible yard movement and the 30 tons RMG crane for high-efficiency fixed-layout handling.
• 2. Ocelové mlýny: Widely used to handle heavy steel products such as steel beams, ocelové cívky, and steel ingots, leveraging the robust structure of the general-type 30 tons gantry crane for stable heavy-duty lifting.
• 3. Loděnice: Plays a crucial role in shipbuilding and maintenance, responsible for lifting hull sections, marine engines, and related large components to support ship assembly and repair work.
• 4. Staveniště: Suitable for hoisting large construction machinery, precast concrete components, and building materials, adapting to both indoor and outdoor working environments with customizable configurations.
• 5. Large-Scale Warehouses and Logistics Hubs: Used for heavy cargo transfer between storage areas, with versatile configurations to match different yard sizes and cargo handling needs.
• 6. Energy Plants: Applied in thermal power plants, hydropower stations, and other energy facilities for the installation and maintenance of large-scale equipment, ensuring safe and precise operation.
• 7. Výrobní dílny: Ideal for handling large mechanical parts, finished products, and production equipment, improving handling efficiency and reducing labor intensity.
