Overhead Crane Conductor Rail

An Overhead Crane Conductor Rail System, also known as a busbar or electrified rail system, is a robust and highly efficient method for delivering electrical power to overhead cranes, in dieilslede, and other moving equipment within an industrial facility. Unlike traditional and less reliable systems like festoon cables or reeling drums, the conductor rail utilizes a solid, enclosed rail with integrated conductors. A collector trolley, attached to the moving crane, travels along the rail, making continuous sliding contact to draw power safely and reliably. This system is designed for heavy-duty applications where uptime, veiligheid, and low maintenance are critical.

Product Types

Conductor rail systems are primarily categorized based on their design and the type of current they carry. The main types include:

• 1. Rigid Conductor Rail Systems:

  • Beskrywing: The most common type, consisting of solid, straight lengths of enclosed aluminum or steel rails that house the copper or aluminum conductors.
  • Best For: High-current applications, long travel distances, and harsh industrial environments like steel mills and shipyards.

• 2. Flexible Conductor Rail Systems:

  • Beskrywing: Composed of articulated, interlocking links that allow the rail to bend horizontally and vertically. This eliminates the need for complex curving of rigid rails.
  • Best For: Applications with curved crane runways, monorails, or where the crane path is not perfectly straight.

• 3. C-Type / Enclosed Conductor Rail Systems:

  • Beskrywing: Features a fully enclosed, C-shaped steel or aluminum housing that protects the conductors from dust, vog, and physical impact. The collector trolley operates inside the enclosed channel.
  • Best For: Environments with high levels of debris, korrosie, or outdoor exposure. Offers the highest degree of safety (IP54 and above).

• 4. Safe-Line / Insulated Conductor Rail Systems:

  • Beskrywing: Similar to C-Type but with enhanced insulation and safety features. The conductors are fully shielded, making them touch-proof and safe for personnel, even when the system is energized.
  • Best For: Facilities with strict safety regulations, food and beverage, pharmaceuticals, and areas accessible to personnel.

Technical Parameters Table – Overhead Crane Conductor Rail

The following table provides typical specifications for a standard rigid conductor rail system. Specifications can vary significantly by manufacturer and model.

Overhead Crane Conductor Rail Belangrike kenmerke & Advantages

• 1. High Reliability & Uptime: Solid, continuous contact ensures an uninterrupted power supply, eliminating the downtime associated with cable fraying, snapping, or tangling in festoon systems.
• 2. Verbeterde veiligheid: Fully enclosed design prevents accidental contact with live parts, protecting personnel. The system is also resistant to short circuits caused by foreign objects.
• 3. Low Maintenance: With no moving cables to wear out, maintenance is minimal, primarily involving periodic inspection of the collector shoes.
• 4. Durability in Harsh Conditions: Robust construction withstands extreme temperatures, dust, vog, korrosie, and mechanical impact, ensuring a long service life.
• 5. High-Speed & Heavy-Duty Capable: Designed to deliver stable power to cranes operating at high speeds and under heavy loads, making them ideal for demanding applications like steelmaking and ports.
• 6. Easy Installation & Expansion: Modular design with standard-length sections allows for straightforward installation and makes future extensions of the crane runway simple.

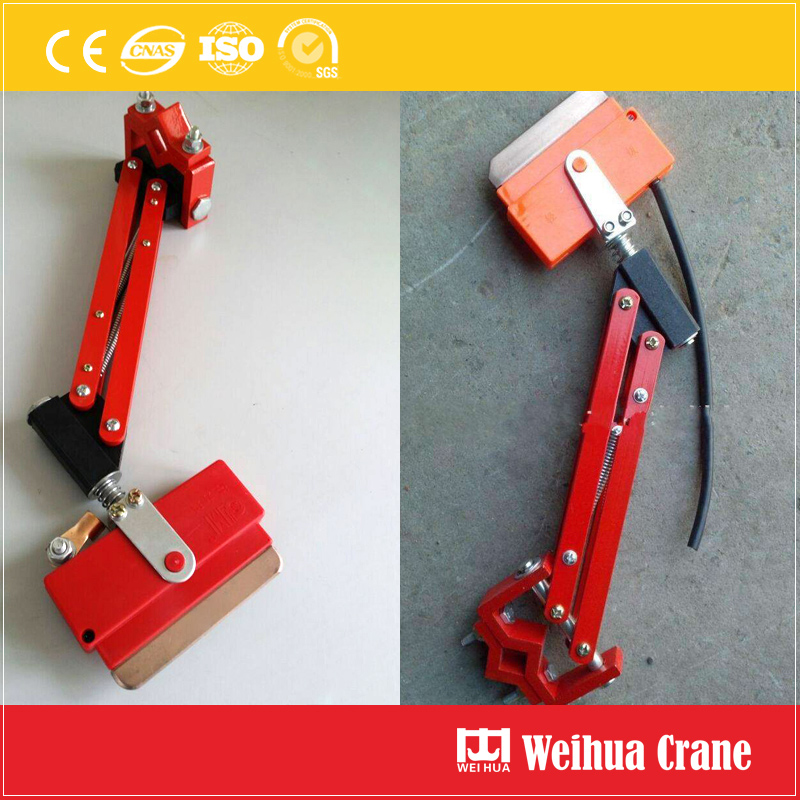

current collector

Aansoeke

Overhead crane conductor rail systems are the preferred power solution in a wide range of industries:

• 1. Staalmeulens & Metal Fabrication: For melt-shop cranes, ladle cranes, and slab handlers.
• 2. Skeepsbou & Herstel meter: Powering large gantry cranes and shipyard transporters.
• 3. Ports & Terminals: For container stacking cranes (RMG, RTG) and ship-to-shore cranes.
• 4. Automotive Manufacturing: Used on assembly line cranes, paint shop monorails, and transfer cars.
• 5. Pakhuis & Logistiek: In automated storage and retrieval systems (ASRS) and large distribution centers.
• 6. Power Generation: For turbine hall cranes and maintenance gantries.
• 7. Heavy Machinery Manufacturing: To power large assembly and testing cranes.
• 8. Waste-to-Energy & Recycling Plants: Where harsh and abrasive environments are common.

By choosing a conductor rail system, you invest in a powerful, safe, and reliable backbone for your material handling operations, maximizing productivity and minimizing total cost of ownership.
