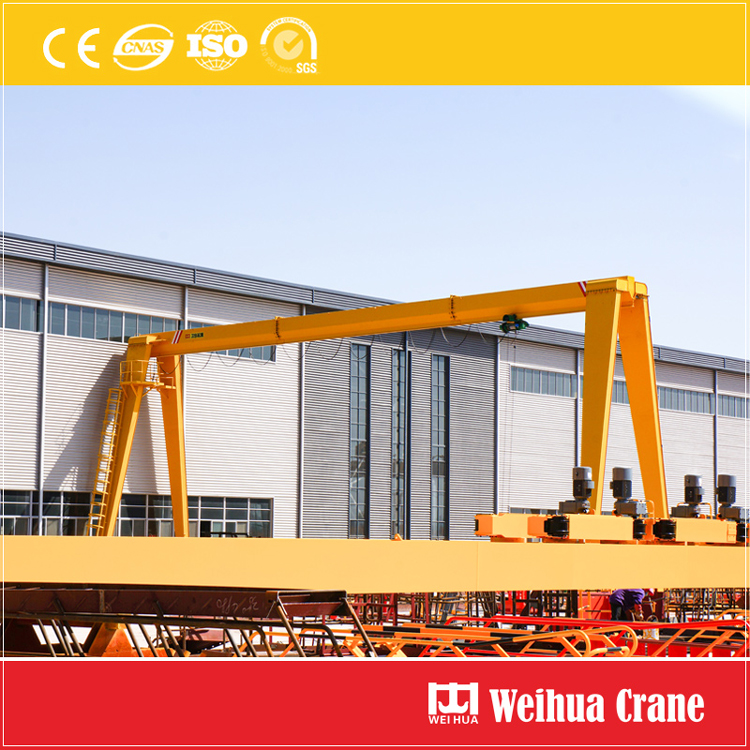

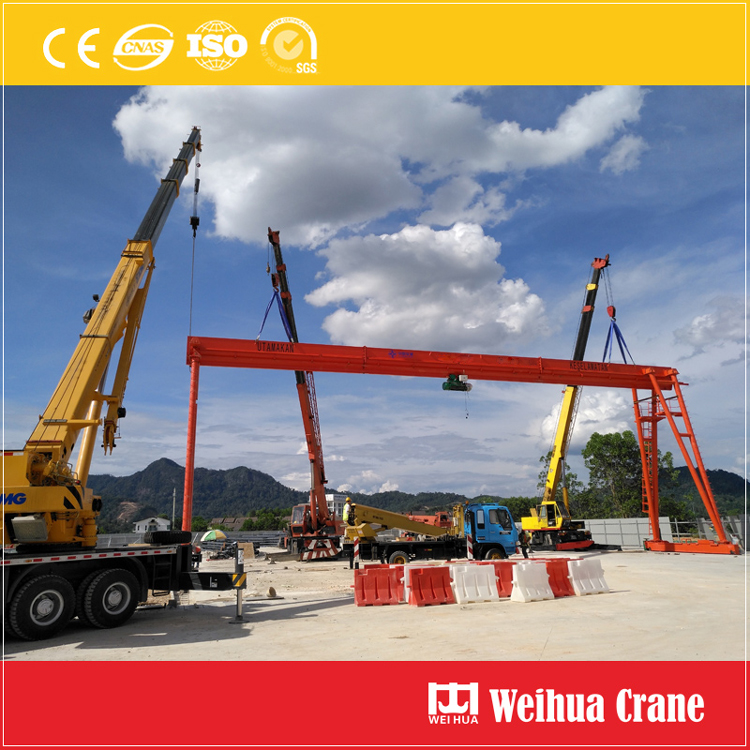

15 Tonnellate di gru a cavalletto monotrave

IL 15 tons single girder gantry crane is a medium-duty material handling solution engineered for efficient, stabile, ed operazioni di sollevamento economicamente vantaggiose. Adopting a mature MH-type single box girder structure, this crane integrates a streamlined mechanical design with reliable electrical control systems, perfectly balancing lightweight construction and robust load-bearing capacity. Designed for 15-ton rated lifting tasks, it is widely applicable for outdoor and semi-outdoor material lifting, loading and unloading, and workpiece handling across industrial yards, cantieri, magazzini, and processing factories. Compared with double girder gantry cranes, this single girder model features a simpler structure, lighter self-weight, lower installation and maintenance costs, and higher space utilization, making it an ideal choice for medium-frequency and medium-load lifting scenarios.

Caratteristiche principali del prodotto & Vantaggi

1. Progettazione strutturale ottimizzata

The main girder is fabricated with high-quality Q235B carbon structural steel through integral welding and stress elimination treatment, ensuring high rigidity, strong toughness, and anti-deformation performance under long-term working conditions. Optional box-type and truss-type girder structures are available: the box-type girder delivers stable operation and easy processing, while the truss-type design reduces self-weight and enhances wind resistance, adapting to different outdoor working environments. The overall structure is compact with a reasonable force-bearing layout, effectively reducing ground foundation pressure and lowering site construction requirements.

2. Alta efficienza & Risparmio energetico

Equipped with a matched paranco elettrico as the lifting core component, the crane realizes stable vertical lifting and horizontal traveling. It adopts variable frequency speed regulation technology as standard, enabling smooth start, accelerazione, deceleration and stop without impact and swing, which greatly improves operation accuracy and handling efficiency. The optimized transmission structure reduces mechanical friction loss, and the low-power matching motor effectively cuts down energy consumption and operating costs compared with traditional heavy-duty cranes.

3. Installazione semplice & Manutenzione ridotta

With fewer structural components and a modular assembly design, the 15-ton single girder gantry crane is simple and fast to install and debug, shortening project commissioning cycles. All wearing parts and key components are designed for easy disassembly and replacement. The surface adopts three-layer anti-corrosion painting treatment, which resists rust, abrasion and outdoor weather erosion, greatly extending the service life and reducing daily maintenance workload and long-term operating costs.

4. Forte adattabilità & Personalizzazione

The crane supports multiple customized configurations to meet diverse site demands. It can be designed with single-side or double-side cantilevers to expand the effective working range without increasing the main span, realizing flexible material handling beyond the crane’s supporting legs. Durata personalizzabile, altezza di sollevamento, traveling speed and working modes are available to adapt to narrow workshops, open yards and special working sites.

15 Tons Single Girder Gantry Crane Technical Parameters

This series of gantry cranes follows international industrial standards, with standardized and reliable core parameters to meet medium-duty industrial operation requirements:

• ◆ Capacità di sollevamento nominale: 15 Tonnellata
• ◆ Classe operaia: A3/A4 (servizio medio)
• ◆ Standard Span Range: 12m – 30 m (personalizzabile)
• ◆ Standard Lifting Height: 6m – 18 m (personalizzabile)
• ◆ Velocità di sollevamento: 3–8 m/me (regolabile)
• ◆ Velocità di viaggio della gru: 20–30 metri/min
• ◆ Alimentazione: 380V/50 Hz/trifase (customizable per regional standard)
• ◆ Grado di protezione: IP54 for electrical equipment, waterproof and dustproof
• ◆ Operating Mode: Telecomando wireless da terra / funzionamento in cabina (opzionale)

Main Component Configuration

1. Main Mechanical Parts

The complete machine consists of main girder, rigid and flexible supporting legs, fine carrozze, paranco elettrico, traveling mechanism and buffer devices. The walking wheels are made of high-strength alloy steel with wear resistance and pressure resistance, ensuring stable traveling without derailment. The high-performance buffer effectively eliminates impact force during extreme position operation, protecting the crane body and on-site equipment.

2. Sistema di controllo elettrico

Adopting mature and stable electrical control components with insulation protection design, the system features sensitive response and stable performance. The variable frequency control system realizes stepless speed regulation, avoiding cargo swing and ensuring precise positioning during lifting and handling. The circuit is equipped with overload protection, protezione limite, short-circuit protection and emergency stop devices to ensure safe and standardized operation.

15 Tons Single Girder Gantry Crane Application Scenarios

IL 15 tons single girder gantry crane is a versatile medium-duty handling equipment, widely used in various industrial fields:

• ◆ Construction industry: Lifting and handling of steel structures, building materials and prefabricated components
• ◆ Produzione di macchinari: Workshop workpiece handling, equipment assembly and finished product stacking
• ◆ Port and yard logistics: Outdoor cargo loading, unloading and transshipment
• ◆ Building materials and stone industry: Handling of cement products, granite and stone materials
• ◆ Municipal engineering and factory temporary lifting operations

Safety Performance & Garanzia di qualità

Safety is the core design priority of this gantry crane. It is equipped with comprehensive safety protection devices including overload limiter, finecorsa di altezza, finecorsa di marcia, emergency stop button and anti-collision device to prevent overloading, overtravel and accidental collision risks. All products are manufactured in strict accordance with international crane industry standards, with each production link undergoing strict quality inspection, including welding quality detection, load test and overall performance test. The whole machine features stable operation, low failure rate and high safety factor, meeting long-term continuous industrial operation requirements.

Post-vendita & Service Support

We provide one-stop customized services including product design, produzione, guida all'installazione, commissioning and after-sales maintenance. Professional technical teams support on-site installation guidance and operator training. Long-term spare parts supply and 24-hour after-sales technical support ensure stable and continuous operation of customer equipment, helping customers reduce operation risks and improve production efficiency.
