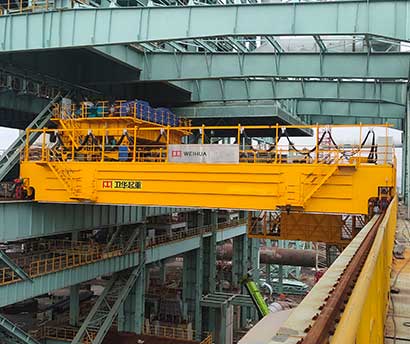

160 Tons Overhead Crane

The 160 tons overhead crane is a heavy-duty lifting equipment designed for high-load, high-precision operations in various industrial fields. As a core piece of machinery for heavy material handling, it integrates advanced structural design, reliable performance and strict safety standards, providing efficient and stable lifting solutions for large-scale projects and heavy industrial production. This crane is mainly divided into double-girder and gantry types, with a rated lifting capacity of 160 tons for the main hook and an optional auxiliary hook with a lifting capacity of 32 tons, which can meet the diverse lifting needs of different scenarios.

160 Tons Overhead Crane

160 Tons Overhead Crane Core Technical Parameters

The 160 tons overhead crane is designed in strict accordance with GB/T 3811-2008 “Crane Design Code” and international standards, ensuring its stability and durability under long-term heavy-load operation. The key technical parameters are as follows (customizable according to on-site needs):

160 Tons Overhead Crane

• ◆ Rated Lifting Capacity: Main hook 160 tons, auxiliary hook 32 tons (optional)
• ◆ Span Length: 10.5m – 31.5m (customizable according to workshop or site dimensions)
• ◆ Lifting Height: 10m – 30m (adjustable based on on-site space requirements)
• ◆ Working Class: A5 – A6 (suitable for medium to high-frequency operations, adaptable to metallurgy, heavy machinery manufacturing and other scenarios with high working intensity)
• ◆ Operating Speed: Main hoist 0.8 – 2 m/min, auxiliary hoist 2 – 6.3 m/min, trolley travel 10 – 20 m/min, bridge travel 15 – 30 m/min
• ◆ Power Supply: 3-phase AC, 380V/50Hz (or customized according to regional voltage standards)
• ◆ Working Environment: Temperature -25℃ to +40℃, humidity ≤85%, altitude below 1000 meters, suitable for indoor and outdoor non-corrosive, non-explosive environments (explosion-proof type optional)
• ◆ Protection Class: IP54 – IP55, ensuring stable operation in harsh industrial environments

Structural Design & Core Components

The crane adopts a scientific and robust structural design, with each component strictly tested to ensure safe and efficient operation under heavy loads. The main structure and core components are as follows:

1. Bridge Structure

Overhead Crane Main Girders

The bridge is composed of double main girders and end beams, adopting a welded box girder structure with camber design, which effectively reduces structural deformation during heavy-load lifting. The main girder is made of high-strength steel (equivalent to FE37 or FE52), and the main welds are processed by Lincoln welding and non-destructive testing to ensure structural integrity and load-bearing capacity. The end beams are rigidly connected to the main girders, and the middle part is detachably connected by bolts, which is convenient for transportation and on-site installation.

2. Lifting Mechanism

The lifting mechanism is equipped with a high-power electric motor (main hook motor power about 55kW) and a high-precision reducer, matched with a wire rope hoist (or chain hoist) to ensure stable lifting and lowering of heavy loads. The brake system adopts a reliable electromagnetic brake, which can quickly stop the load in case of power failure or emergency, preventing accidental falling and ensuring operational safety. The hook block is made of high-strength alloy steel, after heat treatment to enhance wear resistance and load-bearing capacity, and is equipped with anti decoupling devices to avoid load slipping.

3. Trolley & End Trucks

Trolley

The trolley carries the hoisting mechanism and moves along the track on the main girder, realizing horizontal movement of the load. It is powered by an electric motor with wheels running on bridge rails, ensuring smooth and precise movement. The end trucks are installed at both ends of the bridge, with wheel assemblies that facilitate the bridge’s movement along the overhead runway. The wheel pressure is reasonably designed (about 227.5kN/wheel for similar models) to avoid damage to the runway and building structure.

4. Control System

The crane is equipped with a multi-mode control system, supporting pendant control, radio remote control and cabin control, which can be selected according to on-site operation needs. The remote control has a long control distance (up to 50 meters) and stable signal, allowing operators to control the crane from a safe position; the operation cabin is equipped with a comfortable orthopedic seat, air conditioning, and an optimized visual field design, reducing operator fatigue during long-term operation. The control system is equipped with a load moment limiter, which can real-time monitor the lifting load and issue an alarm when overloading, preventing safety accidents.

160 Tons Overhead Crane Application Scenarios

With its strong load-bearing capacity and stable performance, the 160 tons overhead crane is widely used in various heavy industrial fields, becoming an indispensable core equipment for material handling, installation and maintenance. The main application scenarios include:

• ◆ Heavy Machinery Manufacturing: Lifting and assembling large equipment components, such as engine blocks, machine tool beds and large gears.
• ◆ Metallurgical Industry: Transporting molten metal, steel ingots, steel coils and slabs, supporting smelting and steel-making processes.
• ◆ Shipbuilding Industry: Lifting and assembling hull sections, engines, propellers and other large ship parts, improving shipbuilding efficiency.
• ◆ Power Engineering: Installing and maintaining large power equipment, such as generators, transformers and turbine units in thermal power, hydropower and nuclear power plants.
• ◆ Large-scale Infrastructure Projects: Lifting bridge girders, concrete blocks, steel plates and other heavy construction materials, accelerating the construction progress.
• ◆ Port & Logistics: Loading and unloading heavy goods, containers and large equipment, improving logistics efficiency in ports and freight yards.
• ◆ Aerospace Industry: Lifting and transporting large aerospace components, supporting the R&D and production of aerospace equipment.

160 tons overhead crane

Safety Features & Advantages

Safety is the core design concept of the 160 tons overhead crane. The product is equipped with multiple safety protection devices and has obvious advantages in performance and reliability:

Comprehensive Safety Protection

• ◆ Load Moment Limiter: Real-time monitoring of lifting load and moment, automatic alarm and power cut when overloading, preventing structural damage and load falling.
• ◆ Lifting Height Limiter: Prevents the hoist from over-lifting, protecting the wire rope, motor and other components from damage.
• ◆ Travel Limit Switch: Controls the travel range of the bridge and trolley, avoiding collision with the wall or other equipment.
• ◆ Emergency Stop Button: Equipped on the operation cabin, pendant and remote control, which can quickly cut off the power in case of emergency, ensuring the safety of operators and equipment.
• ◆ Windbreak Anchors: Suitable for outdoor use, preventing the crane from being blown by strong winds and ensuring stability under severe weather conditions.

Performance Advantages

• ◆ High Load-bearing Capacity: The main hook can stably lift 160 tons of heavy loads, and the auxiliary hook can handle light-load operations, realizing multi-scenario adaptation.
• ◆ Stable & Efficient: The optimized structural design and high-precision transmission mechanism ensure smooth operation, low noise and high working efficiency, reducing production downtime.
• ◆ Durable & Long Service Life: High-quality materials and strict manufacturing processes make the crane resistant to wear, corrosion and fatigue, with a service life of more than 15 years under normal maintenance.
• ◆ Customizable Design: According to the actual needs of customers, the span, lifting height, control mode and other parameters can be customized to adapt to different on-site environments and operation requirements.
• ◆ Easy Maintenance: The crane is equipped with a maintenance platform, inspection ladder and individual electrical room, which is convenient for daily inspection, maintenance and repair, reducing maintenance costs and improving equipment availability.

Quality Assurance & After-sales Service

Our 160 tons overhead crane has passed ISO9001 quality system certification and relevant international safety certifications, ensuring that each product meets strict quality standards. We provide a complete after-sales service system to solve customers’ worries:

• ◆ Pre-sales Service: Professional technical team provides on-site survey, program design and technical consultation, helping customers select the most suitable crane model.
• ◆ On-site Installation & Commissioning: Professional installation team provides on-site installation, debugging and test run services, ensuring the crane is put into use smoothly.
• ◆ After-sales Maintenance: We have a global service network with experienced technicians, providing timely maintenance, repair and spare parts supply services, ensuring high equipment availability.
• ◆ Training Service: Provide operation and maintenance training for customers’ operators and maintenance personnel, helping them master the correct operation methods and maintenance skills.

The 160 tons overhead crane is a reliable heavy-duty lifting solution that integrates safety, efficiency and durability. It is committed to helping heavy industrial enterprises improve production efficiency, reduce labor intensity and ensure operation safety. Whether it is large-scale equipment installation, heavy material transportation or industrial production supporting, it can provide strong support for your project.
